Automatic AC fan speed controller | dual motor output 3 A

Article code TCMF8-302DM
GTIN 14 5401003018668
Intrastat number 90.32.89.00
Category HVAC controller for AC fans
Current stock 2 U.
Factory lead time 5 Week(s)

Product description

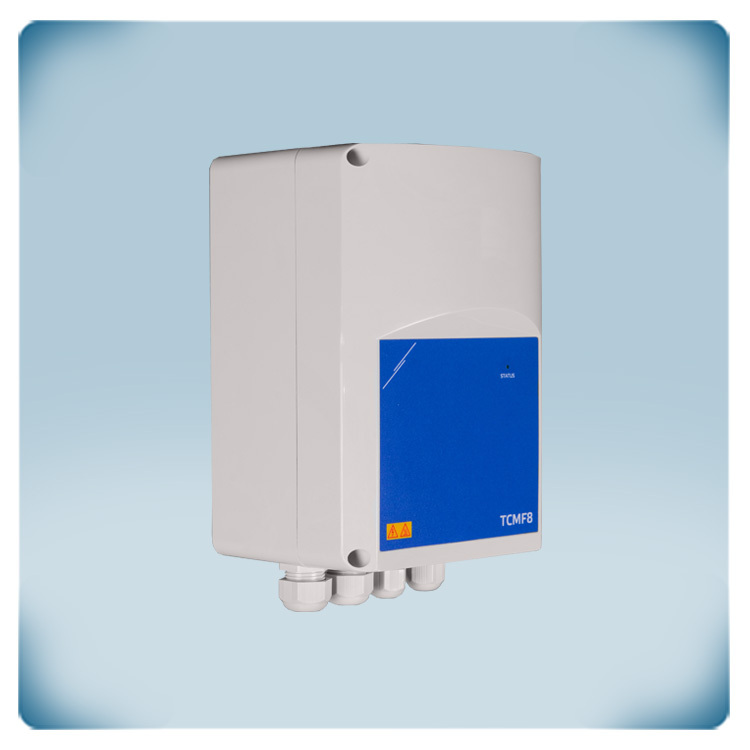

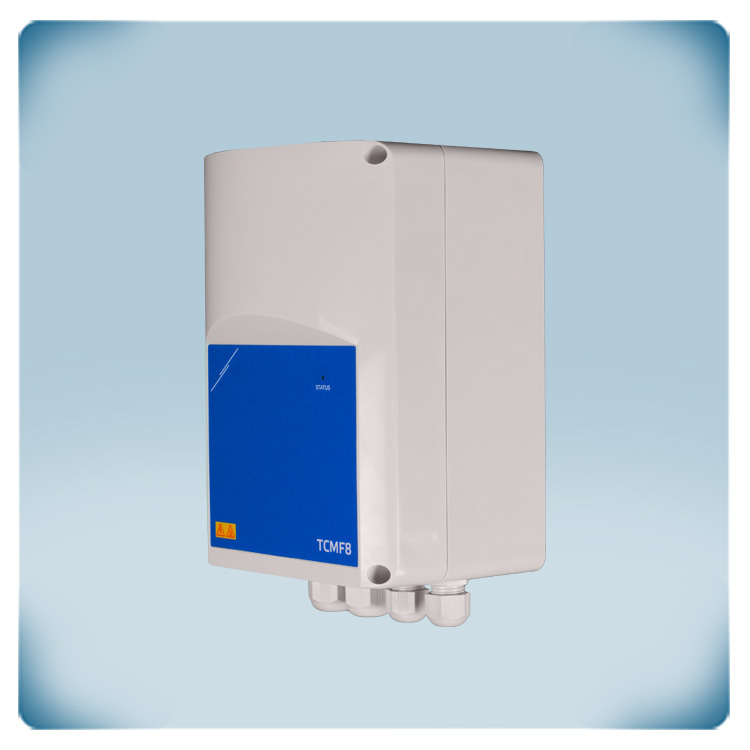

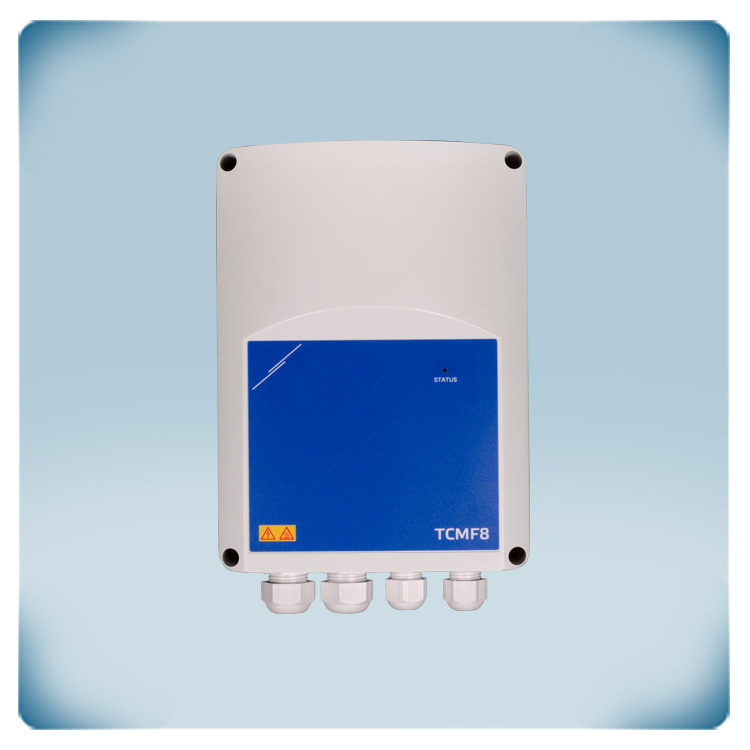

The TCMF8-302DM is an advanced controller designed for precise AC fan speed control in single-phase motor systems.

Powerful Control: Manages two motor outputs at 3A each (2x3A max) for optimal efficiency.

Automatically regulates fan speed based on real-time sensor data.

Offers kick start or soft start and adjustable min/max motor voltage.

Smart Automation & Connectivity: Receives data from up to 4 HVAC sensors via PoM-enabled RJ45 sockets.

Features 2 analog inputs, 2 analog outputs, and 2 tacho inputs for flexibility.

Uses Modbus RTU (RS485) communication and has an integrated sensor power supply.

RGB-LED for status indication.

Flexible Operation: Universal controller with downloadable functionalities and schedules via SenteraWeb.

Supports automatic or manual control modes.

Can operate standalone or cloud-connected (with optional Sentera gateway).

Offers various analog input signals (VDC/mA/PWM).

Protection: Includes two separate TK inputs for thermal motor protection.

This controller provides a robust, adaptable, and efficient solution for advanced HVAC system management.

Additional specifications and description


How do TCMF8 Controllers work, and do they require an internet connection?
TCMF8 controllers require application specific firmware. Typically, they regulate fan speed based on the input of the connected sensors or potentiometers. Application specific firmware can be downloaded via SenteraWeb - your personal HVAC cloud platform. This controller does not have an integrated internet gateway. An external internet gateway is required to connect to SenteraWeb and to download application specific firmware. Once the firmware is downloaded, the TCMF8 controller can work stand alone or it can stay connected to SenteraWeb.

What is an AC Fan and How is it Controlled with the TCMF8?
An AC fan is a fan powered by alternating current. It plays a crucial role in facilitating the circulation of air within heating, ventilation and air conditioning systems. AC fans are commonly used in various cooling applications to dissipate heat generated by electronic components or to enhance air circulation in buildings. The TCMF8 is intended for control of AC fans and offers specific solutions depending on the customer’s needs.


Where can I find and configure application-specific firmware?
We offer a limited number of specific firmware versions for typical HVAC applications (e.g. destratification, demand based fan speed control, etc). First select the required functionality via our website's solution page, then download the application specific firmware. If necessary, it is possible to adjust some settings via the Modbus Holding registers. No programming is required!

What Types of Fans Does the Controller Manage, and How Does It Operate?
This controller has two outputs to control AC fans with single-phase motor. The maximum combined current is 3 A per output. Fan speed is regulated by reducing motor voltage via phase angle control / TRIAC technology. This means that this speed controller is only suitable for voltage controllable motors. If you are not sure whether your motor is voltage controllable, it is best to contact the motor manufacturer. This speed controller works completely silently. Thanks to the accurate motor control, humming motor noise at low speed remains limited.


How Does the Sensor Prevent Overheating, and What is the TK Connection?
When an AC motor fails, it is often due to overheating. In order to detect motor overheating in time, some motors are equipped with TK or thermal contacts. These thermal contacts measure temperature in the motor windings. TCMF8 fan speed controllers can monitor two thermal motor contacts. In case of motor overheating, the TK monitoring function will disable the motor to prevent permanent motor damage. The motor TK can be connected to the TK and 24 VDC terminals.

How are External Devices Connected to the Sensor, and What is PoM?
External HVAC sensors or potentiometers can be connected via Modbus RTU communication or via the analogue inputs. To simplify wiring of the external devices, 24 Volt supply is available via the RJ45 socket. The 24 Volt supply and Modbus communication can be distributed via one cable - we call it Power over Modbus or PoM. All settings can be adjusted via the Modbus Holding registers.


 Where and How Should the Controller Be Mounted?

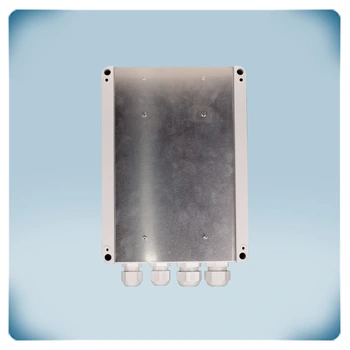

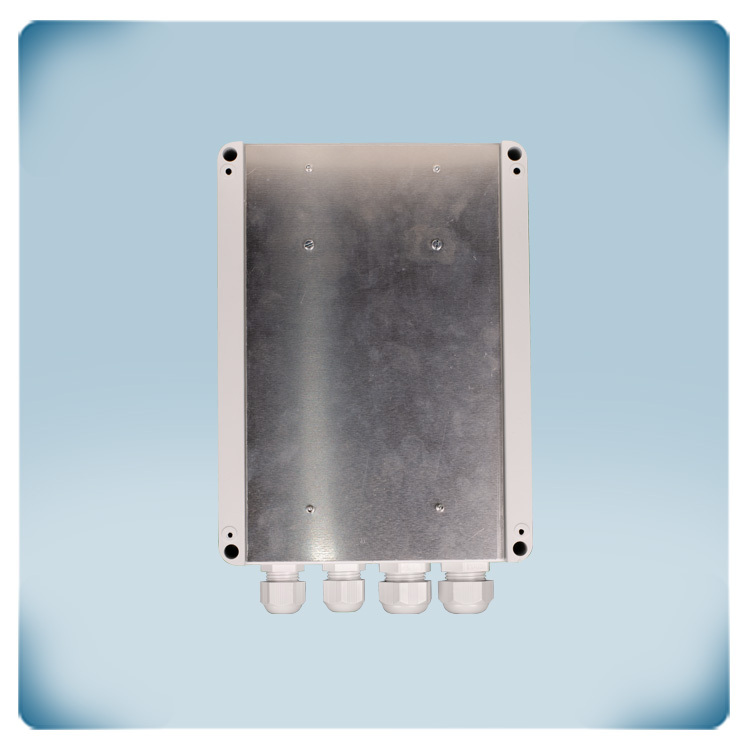

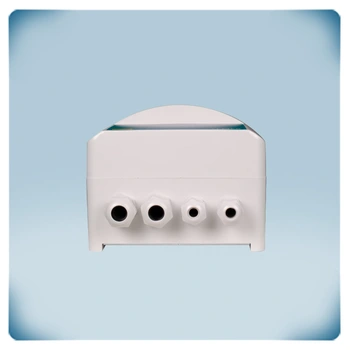

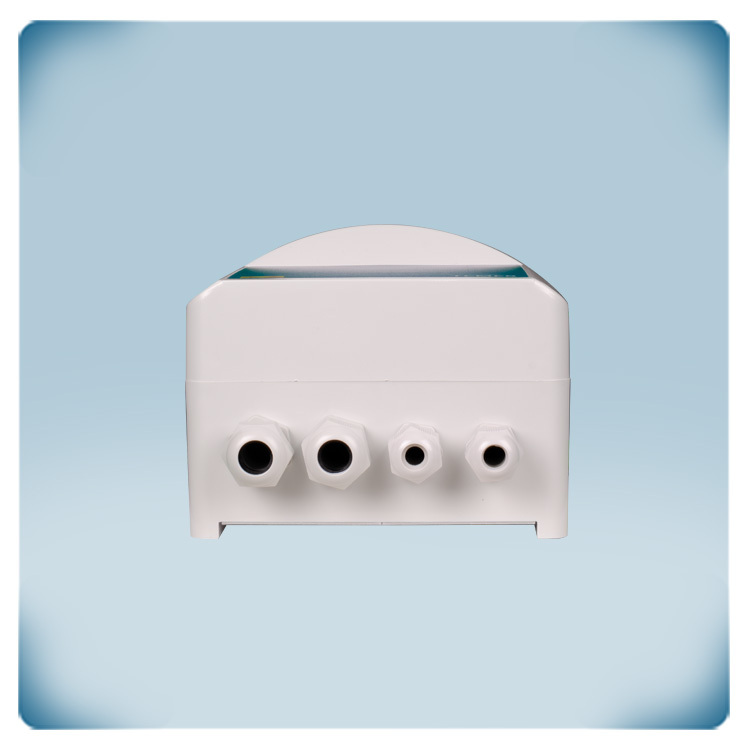

This fan speed controller can be installed on a wall or panel indoors. Make sure that the fan speed controller can cool sufficiently. Preferably install it in a cool place, best not in direct sunlight. The enclosure is made of high-quality r-ABS VO (UL94) plastic. This material is flame extinguishing, very tough and offers good protection against impacts. It offers an IP54 protection against ingress dust and water.
