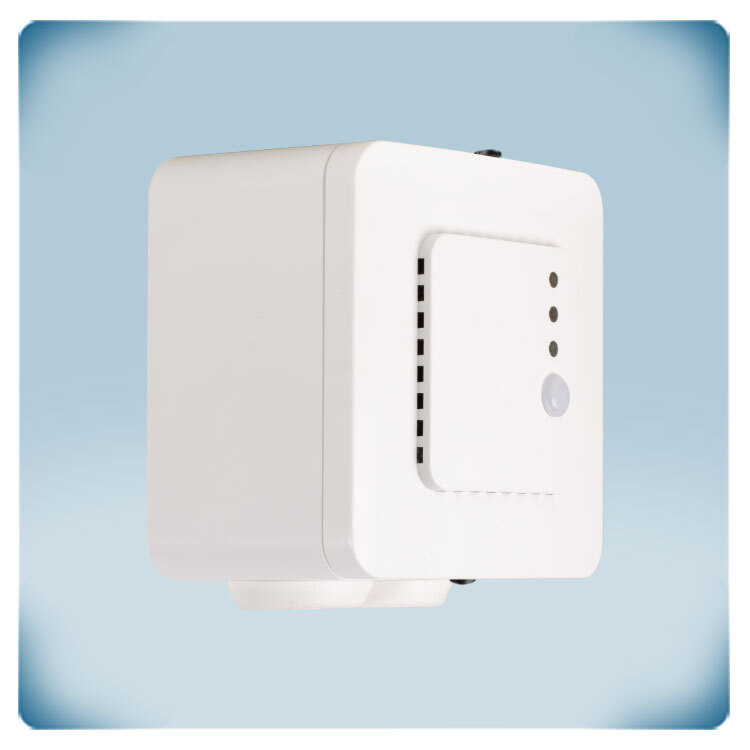

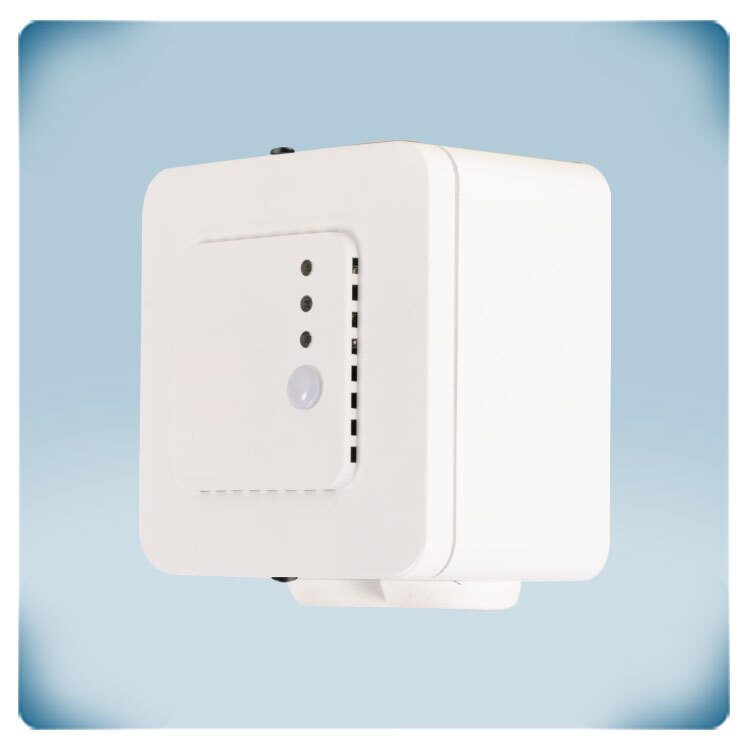

TVOC controller | flush mounting | LED indicators | 24 V DC
Product description
Multiple Measurements: It measures temperature, relative humidity, air quality (TVOC), and ambient light levels.
Flexible Mounting: The unique enclosure supports both flush and surface mounting.
Single-Output Control: The device operates on 24 V DC and uses a single analog output to control an EC fan, AC fan speed controller, or damper actuator based on measured values.
Adjustable Output Type: The output signal is selectable, with a default of 0-10 V.
Full Adjustability: All measurements and settings are available and adjustable via Modbus RTU communication.
Replaceable Sensor: The TVOC sensor element is replaceable, which simplifies maintenance.
Occupancy-Based Control: The ambient light sensor can be used to control the ventilation system based on room occupancy.
Additional specifications and description
What Is VOC and How Should the Sensor Be Positioned?
Measuring Volatile Organic Compounds (VOCs) in a room is important for assessing indoor air quality, as high levels of VOCs can be harmful to human health. VOCs are emitted from various sources such as paints, cleaning products, furniture, and more. Place the VOC monitor in the room you want to measure. It is important to position it where it can provide a representative sample of the air in the room. Avoid placing it too close to potential sources of VOCs (e.g. newly painted walls) or near windows or doors where outdoor air can influence measurements. Let the monitor run for some time to stabilise and provide accurate readings.
Measuring Volatile Organic Compounds (VOCs) in a room is important for assessing indoor air quality, as high levels of VOCs can be harmful to human health. VOCs are emitted from various sources such as paints, cleaning products, furniture, and more. Place the VOC monitor in the room you want to measure. It is important to position it where it can provide a representative sample of the air in the room. Avoid placing it too close to potential sources of VOCs (e.g. newly painted walls) or near windows or doors where outdoor air can influence measurements. Let the monitor run for some time to stabilise and provide accurate readings.

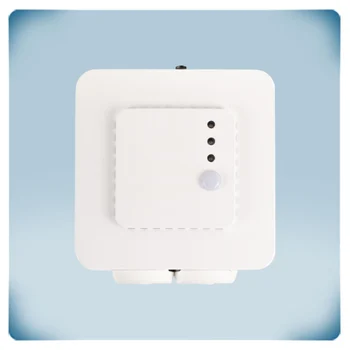

How Does the Sensor Indicate Air Quality and Other Values?

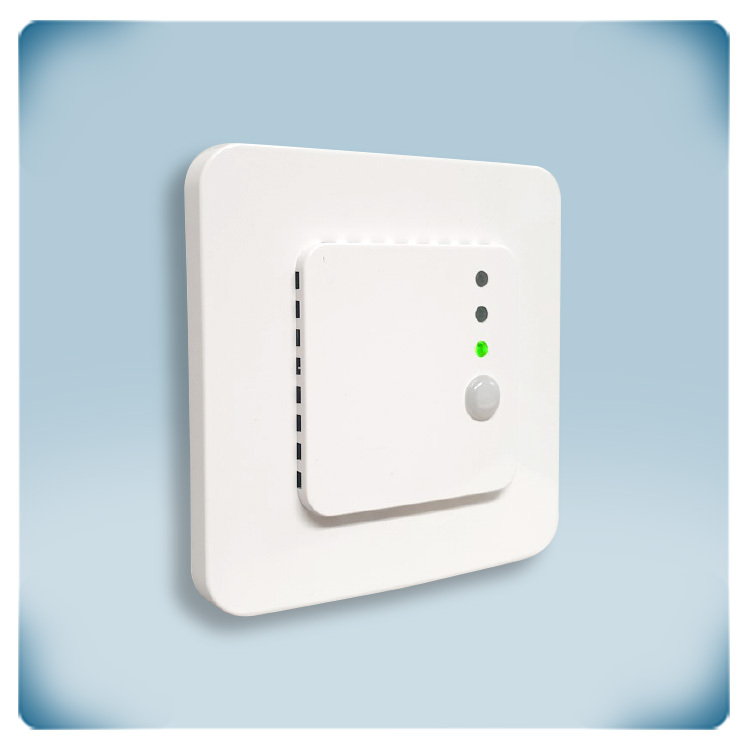

The green, yellow, and red LEDs on this HVAC sensor controller provide a clear visual indication of the TVOC level. The green LED indicates that the TVOC level is within acceptable limits and that there is sufficient fresh air supply. The yellow LED illuminates when the TVOC level enters the alert range. The colour red indicates that the TVOC level is out of range or that there is insufficient fresh air supply. One of the other measured values (temperature or relative humidity) can also be indicated by the LED indicators. Modbus RTU provides access to the measured temperature, relative humidity, TVOC, dew point, and ambient light level.
How Does the Sensor Control the HVAC System?
The output of this sensor can directly control an EC fan, an AC fan speed controller or a damper actuator. The output value varies proportionally in function of the measured temperature, humidity and TVOC concentration. When more fresh air is required, the sensor will increase the fan speed or open the damper.
What Are the Sensor's Power Supply and Wiring Requirements?

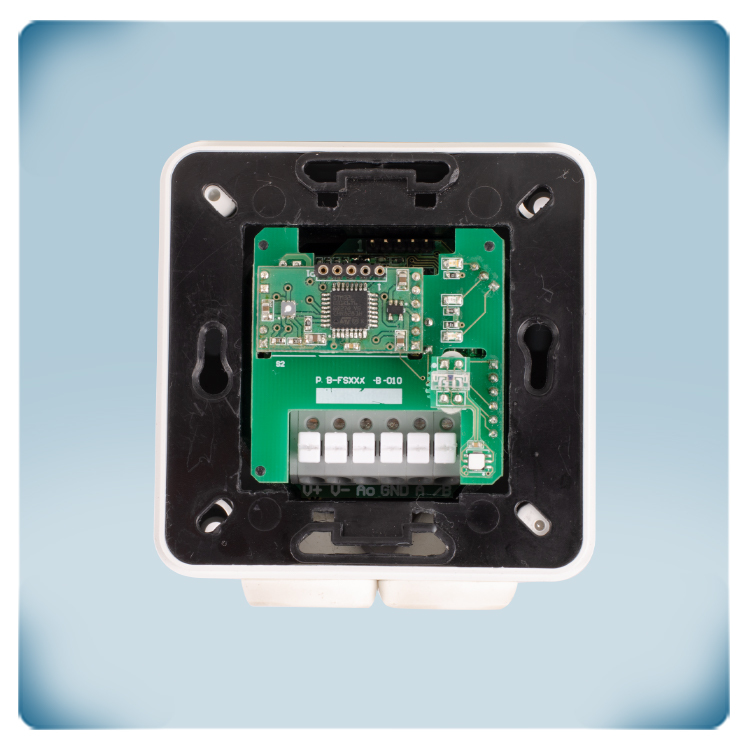

The cage clamp terminal blocks shorten wiring and installation time. They eliminate the need for routine maintenance and ensure a reliable contact for solid or stranded wires. The supply voltage is 24 V DC. The power supply (V-) and output (GND) ground terminals are not connected internally. This means that a 4-wire cable is required to connect this sensor. Most 24 V DC power supplies have short-circuit, overload, and overvoltage protection. A 24 V DC supply voltage improves the safety and dependability of your installation.

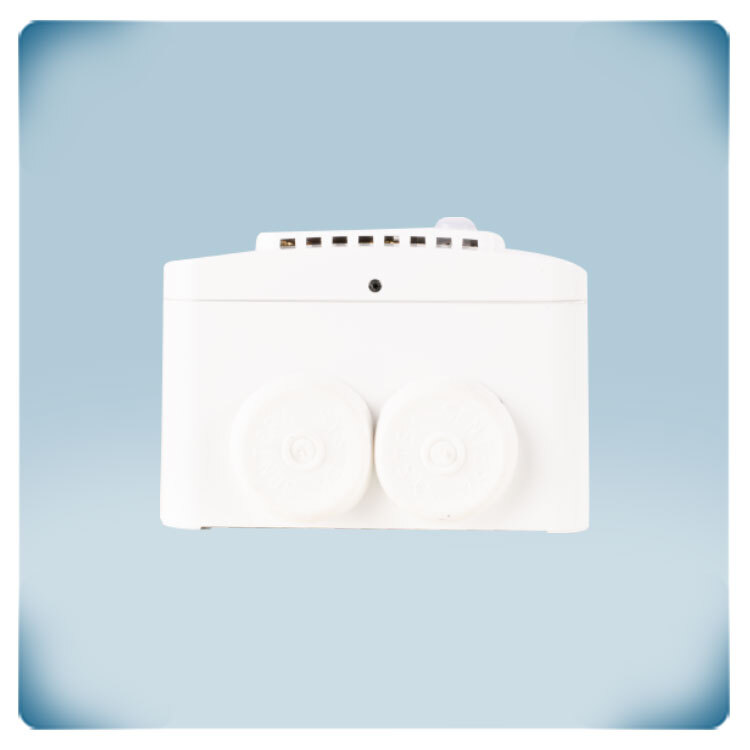

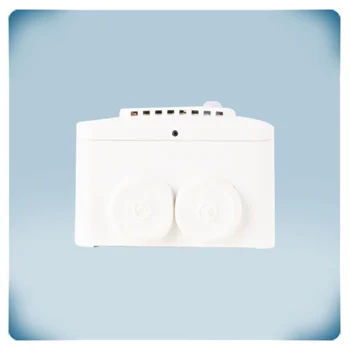

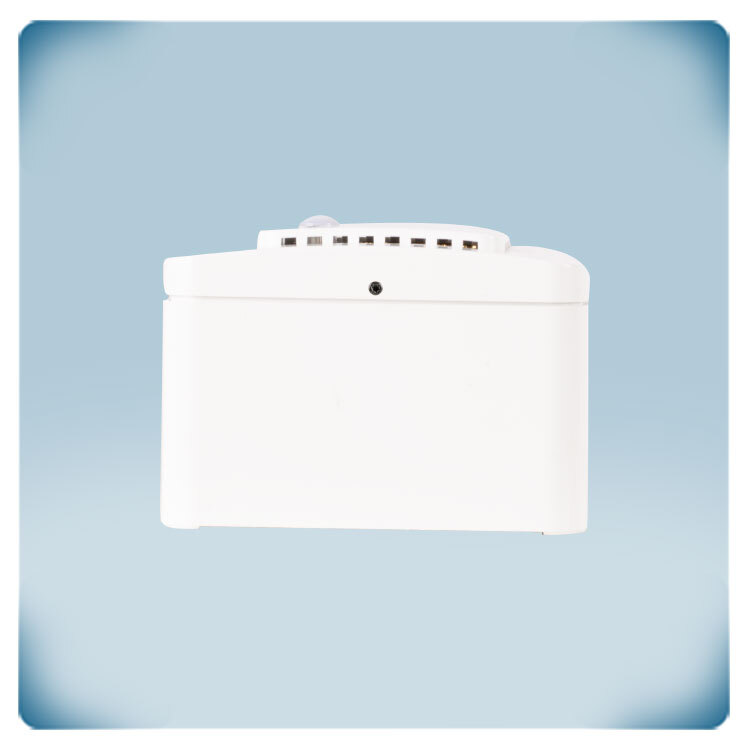

What Mounting Options Are Available for the Sensor?
This sensor is suitable for mounting on a wall, a flat surface, or in a standard European wall mounting box. When the sensor is flush mounted, only the front plate is visible on the wall.
How Are the Sensor's Installation and Settings Performed?
This sensor is suitable for mounting on a wall, a flat surface, or in a standard European wall mounting box. When the sensor is flush mounted, only the front plate is visible on the wall. This sensor requires very little configuration. It is almost directly usable once it has been installed. Temperature and relative humidity are often region- and seasonal-specific. The presence of VOCs depends on the specific sources and activities taking place in a particular environment. These parameters are still adjusted to the correct values during installation. The other default settings will be suitable for most applications. However, they can also be adjusted via the respective Modbus registers if necessary. A different output type, for example, can be selected to make it compatible with other devices: 0-10 V DC; 0-20 mA; 0-100% PWM; Modbus RTU. The light levels of the LEDs used for status indication are adjustable and you can choose to deactivate one or more measurement values. The Modbus register map provides an exhaustive list of all programmable settings.
How Are the Sensor's Quality and Durability Ensured?
This HVAC sensor is manufactured in Europe. Each sensor is calibrated and tested in our factory. In the unlikely event of TVOC sensor element failure, this module can be replaced. We use sensor elements and components of high quality. This ensures the long-term stability and accuracy of this HVAC transmitter.
