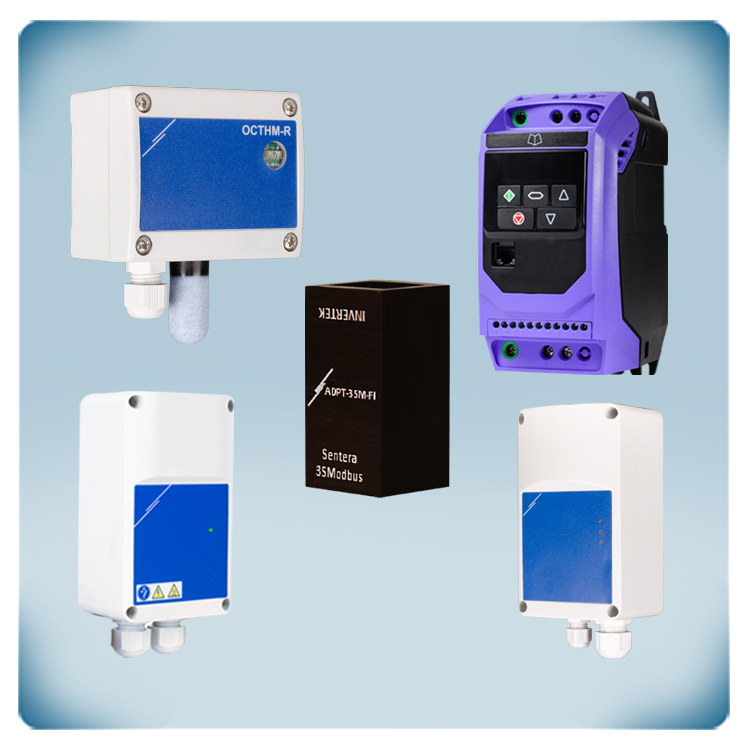

Temperature humidity control IP20 | 3 x 230 V AC motor| 30 A

This smart sensor is designed for regulating humidity and temperature in HVAC applications within challenging and outdoor environments. Measurement and Control It measures temperature and relative humidity (with adjustable ranges). Based on the measured values, it generates an output that can directly control an EC fan, AC fan speed controller, or a damper actuator. The ambient light sensor can be used in various applications, such as regulating ventilation systems based on room occupancy. It's suitable for both indoor and outdoor use. Power and Communication It's powered by 24 V DC PoM (Power over Modbus), meaning you can connect both Modbus RTU communication and the 24 VDC power supply via a single cable through an RJ45 connector. All measurements and output values are accessible via Modbus RTU. All settings can also be adjusted via Modbus RTU. This sensor is a comprehensive solution, providing precise HVAC control and flexibility even in demanding conditions.

Variable frequency drive to control three-phase 230 Volt motors. This VFD is particularly simple to use. For most applications it is not necessary to change the default settings. That is why this variable speed drive is ideal for controlling fans and pumps in HVAC applications. The required supply voltage is three-phase 230 Volt. Various types of three-phase 230 Volt motors can be controlled: IE3 or IE4 induction motors, permanent magnet motors, brushless DC or synchronous reluctance motors. One or multiple motors with a (combined) maximum current of 30 A can be controlled by this drive. Motor speed can be set via the intuitive keypad or via the inputs. Configuration is simplified via 14 basic parameters and application macro functions. The enclosure can be DIN rail mounted in an electrical cabinet. It offers an IP20 protection against ingress of dust. The integrated EMC filter is Class C1. Manufacturers code: ODE-3-420300-3F42

A 24 Volt supply module is an electronic device that converts an input voltage of 230 VAC to a 24 VDC output voltage. It is frequently used in a variety of applications, including industrial automation, medical equipment, and building automation. This switching power supply can alter an 85-264 VAC input voltage into a 24 VDC output voltage. It can supply loads up to 40 Watts. Your electrical installation is more secure because of the overload and overvoltage protection. The load can be connected using either an RJ45 connector or a screw terminal block. Due to its firm enclosure, which offers IP65 protection against the ingress of water and dirt, is the installation of this power supply in harsh environments possible. In comparison to linear power supplies, switching power supplies are more efficient, lighter, and more compact (due to their transformer-free design). Because of their high efficiency, they produce less heat and contribute to greater energy savings.

Adapter to connect Invertek frequency inverter (FI-E and FISE series) to a Sentera Modbus RTU network. The Invertek RS485 communication is converted into Modbus RTU communication. This makes it possible for the Sentera HVAC controllers to control the Invertek frequency inverters via Modbus RTU. One integrated control solution for your HVAC or ventilation system.

The SIG-M-2 Gateway is specifically designed to connect Sentera devices to the SenteraWeb online HVAC platform. It provides a means of communication between the devices and the platform, enabling remote monitoring, data logging and adjustment of settings via the internet. The gateway can be connected to the Sentera devices using either an Ethernet cable or a Wi-Fi network, providing flexibility in installation options. It is intended for wall mounting in indoor environments, allowing for convenient placement and integration into existing setups. The gateway operates on a supply voltage of 24 VDC PoM (Power over Modbus). This means that both the Modbus RTU communication and the 24 VDC supply voltage are connected via an RJ45 connector, which simplifies the wiring and connection process. By utilizing this internet gateway, a Sentera solution can be seamlessly connected to the SenteraWeb platform. SenteraWeb is an online HVAC platform that enables remote monitoring of data and adjustment of settings for the connected HVAC devices over the internet. Users can access the platform from anywhere and remotely monitor parameters such as temperature, humidity and other relevant data. Additionally, the platform supports data logging, allowing for the collection and analysis of historical data to optimize HVAC system performance.
