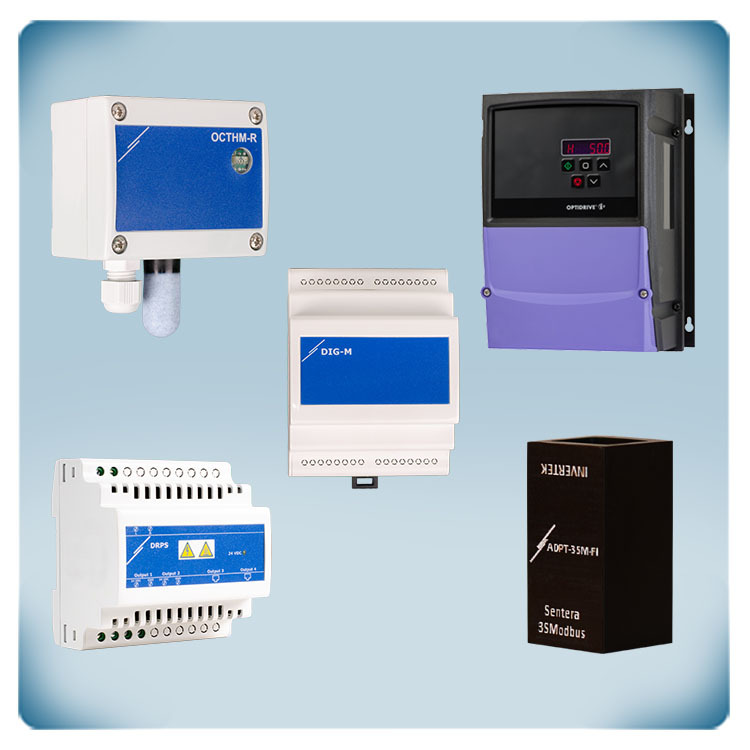

Temperature humidity control IP66 | 3 x 400 V AC motor | 9,5 A

OCTHM-R is a controller for monitoring and regulating temperature, relative humidity, and ambient light in demanding conditions. The dew point is calculated based on the temperature and humidity readings. The controller generates one output that can directly control an EC fan, an AC fan speed controller, or a damper actuator. Modbus RTU communication and a 24 VDC power supply are connected by Power over Modbus (PoM) via one RJ45 connector. All measured values and settings are accessible via Modbus RTU communication. The enclosure is made from premium R-ABS and provides an IP65 protection. The controller is designed for outdoor applications or harsh environments.

Variable frequency converter in dust-tight and washdown ready enclosure. It controls 400 Volt motors to run fans and pumps in HVAC applications. This VFD is particularly simple to use. For most applications it is not necessary to change the default settings. The required supply voltage is three-phase 400 Volt. Various types of 3ph 400 Volt motors can be controlled: IE3 or IE4 induction motors, permanent magnet motors, brushless DC or synchronous reluctance motors. One or multiple motors with a (combined) maximum current of 9.5 A can be controlled by this drive. Motor speed can be set via the intuitive keypad or via the inputs. Configuration is simplified via 14 basic parameters and application macro functions. The enclosure can be DIN rail mounted in an electrical cabinet. It offers an IP66 protection against ingress of water and dust. The integrated EMC filter is Class C1. Manufacturers code: ODE-3-240095-3F4A

A 24-volt switched-mode power supply (SMPS) is a type of electronic power supply that converts electrical energy from one voltage level to another. This supply module with the convenience of DIN rail mounting is a versatile solution for various applications across different industries. Whether you're managing automation systems (e.g. heating or ventilation systems), control panels, or electronic devices, this power supply is the key to your reliable and secure operation. This module accepts an input voltage of 85–264 VAC / 50–60 Hz. The maximum load on this switched mode power supply is 40 Watts. The loads can be connected via the terminal block or via the RJ45 connector. Because it is designed to be mounted on a DIN rail, integrating the power supply into your electrical cabinet will be simpler. The device is shielded from dust and dirt by the IP20 protection provided by the enclosure. In addition, the safety of your electrical installation is increased by the overload and overvoltage protection. Comparing to linear power supplies, switching power supplies are more efficient, lighter, and more compact (due to their transformer-free design). Because of their high efficiency, they produce less heat and contribute to greater energy savings.

Adapter to connect Invertek frequency inverter (FI-E and FISE series) to a Sentera Modbus RTU network. The Invertek RS485 communication is converted into Modbus RTU communication. This makes it possible for the Sentera HVAC controllers to control the Invertek frequency inverters via Modbus RTU. One integrated control solution for your HVAC or ventilation system.

The DIG-M-2 Gateway is designed to connect Sentera devices to the SenteraWeb online HVAC platform. It provides a means of communication between the devices and the platform, allowing remote monitoring, data logging and adjustment of settings via the internet. The gateway can be connected to the Sentera devices using either an Ethernet cable or a Wi-Fi network. It is equipped with an RJ45 connector, which serves as a connection point for both Modbus RTU communication and the 24 VDC supply voltage. This enables the devices to communicate with the gateway and receive power from it. Once connected to the SenteraWeb platform, the gateway enables remote access and control of the connected HVAC devices. Users can monitor data, such as temperature, humidity and other relevant parameters, and make adjustments to the settings as needed. The platform also supports data logging, allowing for historical data analysis and system optimization. The gateway is designed to be mounted on a DIN rail. This allows for easy installation and integration into existing setups.
