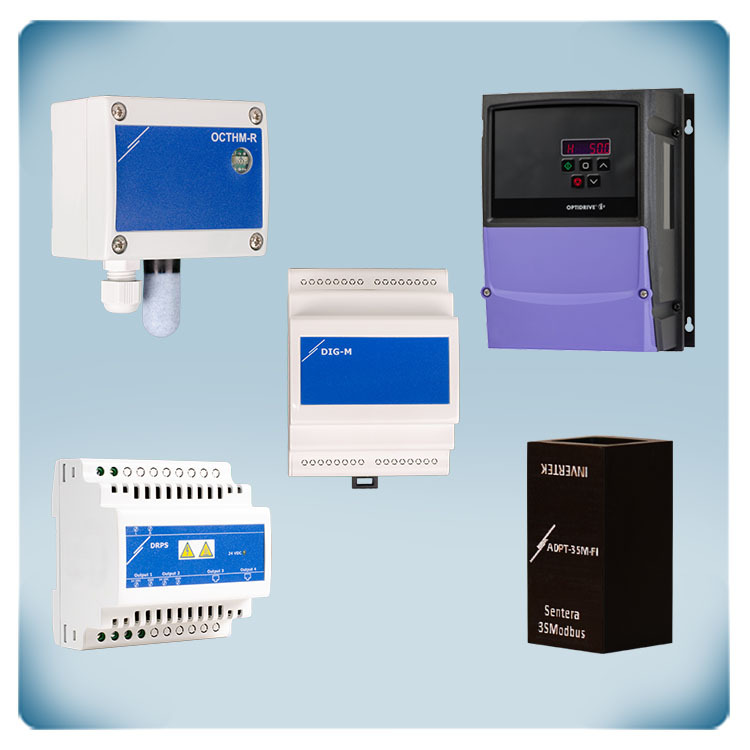

Temperature humidity control IP66 | 3 x 230 V AC motor| 4,3 A

OCTHM-R is a controller for monitoring and regulating temperature, relative humidity, and ambient light in demanding conditions. The dew point is calculated based on the temperature and humidity readings. The controller generates one output that can directly control an EC fan, an AC fan speed controller, or a damper actuator. Modbus RTU communication and a 24 VDC power supply are connected by Power over Modbus (PoM) via one RJ45 connector. All measured values and settings are accessible via Modbus RTU communication. The enclosure is made from premium R-ABS and provides an IP65 protection. The controller is designed for outdoor applications or harsh environments.

Variable speed drive with IP66 enclosure. It controls fans or centrifugal pumps with three-phase 230 Volt motors in HVAC applications. The frequency converter requires a supply voltage of single-phase 230 Volt while it controls three-phase 230 Volt motors. This drive can control motors with a maximum (combined) current of 4.3 A. This frequency inverter can control three-phase 230 Volt IE3, IE4, permanent magnet, brushless DC or synchronous reluctance motors. The motor speed can be set via the intuitive keypad or via the inputs. It is possible to select a pre-defined motor speed by activating a digital input. Another option is to use a 0-10 Volt signal to define the motor speed. Configuration of this all is simplified via 14 basic parameters and application macro functions. The enclosure is dust-tight and washdown ready. It offers an IP66 protection against ingress of dirt and water. The heatsink is corrosion resistant. The integrated EMC filter is Class C1. Manufacturers code: ODE-3-120043-1F1A

A 24-volt switched-mode power supply (SMPS) is a type of electronic power supply that converts electrical energy from one voltage level to another. This supply module with the convenience of DIN rail mounting is a versatile solution for various applications across different industries. Whether you're managing automation systems (e.g. heating or ventilation systems), control panels, or electronic devices, this power supply is the key to your reliable and secure operation. This module accepts an input voltage of 85–264 VAC / 50–60 Hz. The maximum load on this switched mode power supply is 40 Watts. The loads can be connected via the terminal block or via the RJ45 connector. Because it is designed to be mounted on a DIN rail, integrating the power supply into your electrical cabinet will be simpler. The device is shielded from dust and dirt by the IP20 protection provided by the enclosure. In addition, the safety of your electrical installation is increased by the overload and overvoltage protection. Comparing to linear power supplies, switching power supplies are more efficient, lighter, and more compact (due to their transformer-free design). Because of their high efficiency, they produce less heat and contribute to greater energy savings.

Adapter to connect Invertek frequency inverter (FI-E and FISE series) to a Sentera Modbus RTU network. The Invertek RS485 communication is converted into Modbus RTU communication. This makes it possible for the Sentera HVAC controllers to control the Invertek frequency inverters via Modbus RTU. One integrated control solution for your HVAC or ventilation system.

The DIG-M-2 Gateway is designed to connect Sentera devices to the SenteraWeb online HVAC platform. It provides a means of communication between the devices and the platform, allowing remote monitoring, data logging and adjustment of settings via the internet. The gateway can be connected to the Sentera devices using either an Ethernet cable or a Wi-Fi network. It is equipped with an RJ45 connector, which serves as a connection point for both Modbus RTU communication and the 24 VDC supply voltage. This enables the devices to communicate with the gateway and receive power from it. Once connected to the SenteraWeb platform, the gateway enables remote access and control of the connected HVAC devices. Users can monitor data, such as temperature, humidity and other relevant parameters, and make adjustments to the settings as needed. The platform also supports data logging, allowing for historical data analysis and system optimization. The gateway is designed to be mounted on a DIN rail. This allows for easy installation and integration into existing setups.
