Temperature humidity control IP66 | 3 x 230 V AC motor| 18 A

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!
Article code FS-D-100092
Current stock 0 U.
Factory lead time 5 Week(s)
Next arrival 05/09/2025 - 5 U.

Solution description

Temperature and humidity control for three-phase 230 Volt motors on a three-phase 230 V mains supply. The maximum motor current is 18 A. The Frequency inverter controls the motor speed in function of temperature and/or relative humidity. The IP66 Frequency inverter communicates with the HVAC sensor directly via Modbus RTU. The installation is equipped with a DIN-rail Internet Gateway.

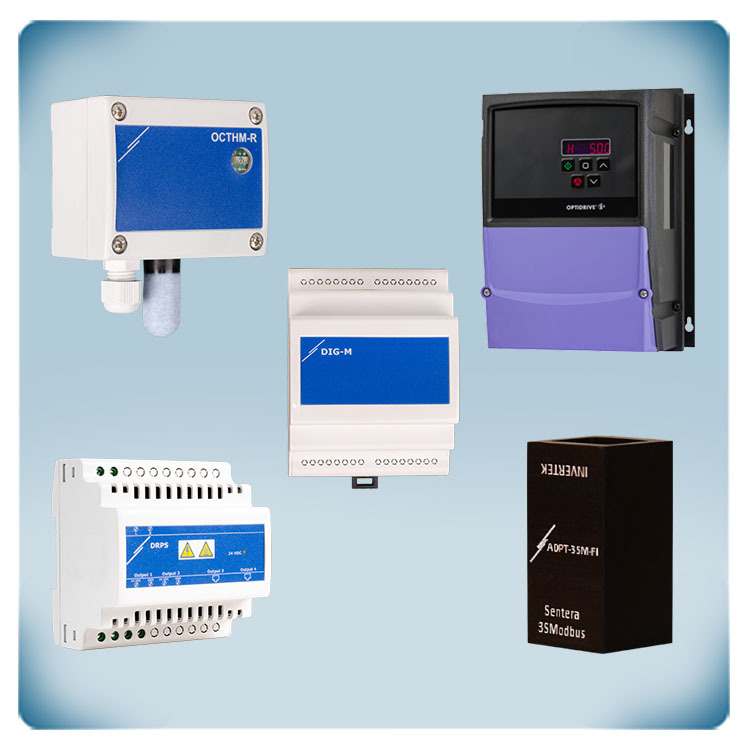

Components of this solution

Article code
Quantity
Description

OCTHM-R

1 U.

This smart sensor is designed for regulating humidity and temperature in HVAC applications within challenging and outdoor environments. Measurement and Control It measures temperature and relative humidity (with adjustable ranges). Based on the measured values, it generates an output that can directly control an EC fan, AC fan speed controller, or a damper actuator. The ambient light sensor can be used in various applications, such as regulating ventilation systems based on room occupancy. It's suitable for both indoor and outdoor use. Power and Communication It's powered by 24 V DC PoM (Power over Modbus), meaning you can connect both Modbus RTU communication and the 24 VDC power supply via a single cable through an RJ45 connector. All measurements and output values are accessible via Modbus RTU. All settings can also be adjusted via Modbus RTU. This sensor is a comprehensive solution, providing precise HVAC control and flexibility even in demanding conditions.

FI-E33180E6-19

1 U.

Variable frequency drive in dust-tight and washdown ready enclosure. It controls fans and pumps with three-phase 230 Volt motors. It is optimised for HVAC applications. This VFD is particularly simple to use. For most applications it is not necessary to change the default settings. The required supply voltage is three-phase 230 Volt. Various types of three-phase 230 Volt motors can be controlled: IE3 or IE4 induction motors, permanent magnet motors, brushless DC or synchronous reluctance motors. One or multiple motors with a (combined) maximum current of 18 A can be controlled by this drive. Motor speed can be set via the intuitive keypad or via the inputs. Configuration is simplified via 14 basic parameters and application macro functions. The enclosure can be DIN rail mounted in an electrical cabinet. It offers an IP66 protection against ingress of water and dust. The integrated EMC filter is Class C1. Manufacturers code: ODE-3-320180-3F4A

DRPS8-24-40

1 U.

A 24-volt switched-mode power supply (SMPS) is a type of electronic power supply that converts electrical energy from one voltage level to another. This supply module with the convenience of DIN rail mounting is a versatile solution for various applications across different industries. Whether you're managing automation systems (e.g. heating or ventilation systems), control panels, or electronic devices, this power supply is the key to your reliable and secure operation. This module accepts an input voltage of 85–264 VAC / 50–60 Hz. The maximum load on this switched mode power supply is 40 Watts. The loads can be connected via the terminal block or via the RJ45 connector. Because it is designed to be mounted on a DIN rail, integrating the power supply into your electrical cabinet will be simpler. The device is shielded from dust and dirt by the IP20 protection provided by the enclosure. In addition, the safety of your electrical installation is increased by the overload and overvoltage protection. Comparing to linear power supplies, switching power supplies are more efficient, lighter, and more compact (due to their transformer-free design). Because of their high efficiency, they produce less heat and contribute to greater energy savings.

ADPT-3SM-FI

1 U.

Adapter to connect Invertek frequency inverter (FI-E and FISE series) to a Sentera Modbus RTU network. The Invertek RS485 communication is converted into Modbus RTU communication. This makes it possible for the Sentera HVAC controllers to control the Invertek frequency inverters via Modbus RTU. One integrated control solution for your HVAC or ventilation system.

DIG-M-2

1 U.

The DIG-M-2 Gateway is designed to connect Sentera devices to the SenteraWeb online HVAC platform. It provides a means of communication between the devices and the platform, allowing remote monitoring, data logging and adjustment of settings via the internet. The gateway can be connected to the Sentera devices using either an Ethernet cable or a Wi-Fi network. It is equipped with an RJ45 connector, which serves as a connection point for both Modbus RTU communication and the 24 VDC supply voltage. This enables the devices to communicate with the gateway and receive power from it. Once connected to the SenteraWeb platform, the gateway enables remote access and control of the connected HVAC devices. Users can monitor data, such as temperature, humidity and other relevant parameters, and make adjustments to the settings as needed. The platform also supports data logging, allowing for historical data analysis and system optimization. The gateway is designed to be mounted on a DIN rail. This allows for easy installation and integration into existing setups.

ADPT-1RJ-TB

2 U.

RJ45 to terminal block adapter for Modbus RTU networks. This adapter is useful to add Sentera products with terminal block to a Modbus RTU network using RJ45 connector. It simplifies wiring and guarantees reliable contacts.
