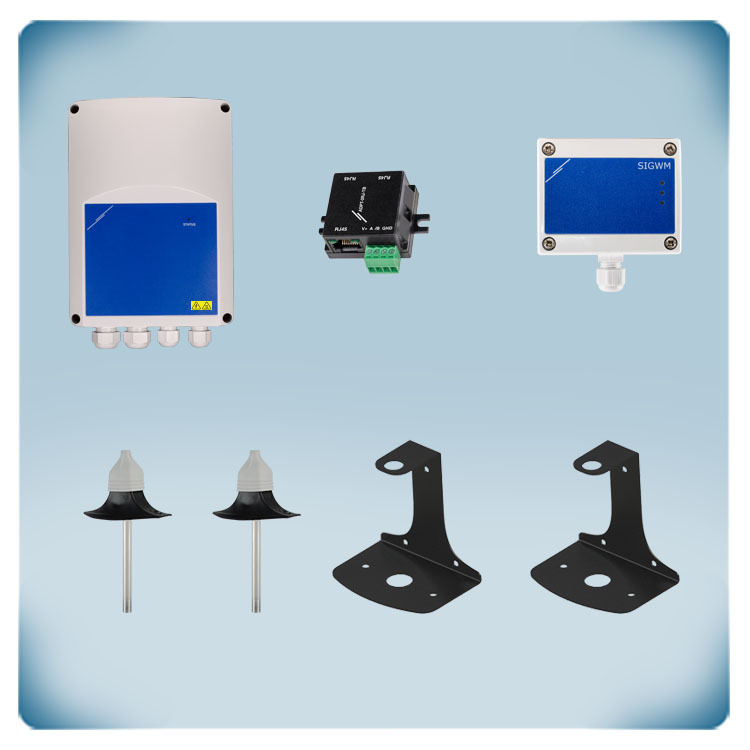

Destratification controller | AC fans | 2x 6A | separate WiFi

The TCMF8-602DM is a modern controller for precise AC fan speed control in single-phase systems. It runs on 230 VAC / 50-60 Hz power with a maximum load of 2 x 6 A. The device automatically adjusts fan speed based on real-time sensor data and features an RGB LED status indicator. It offers both kick start and soft start functions, along with adjustable min/max motor voltage settings. It can operate as a standalone unit or connect to the cloud via an optional Sentera gateway. For smart automation, it receives data from up to four HVAC sensors using Power over Modbus (PoM) via RJ45 connectors, and it uses the Modbus RTU (RS485) protocol. It also includes a built-in sensor power supply and two separate TK inputs for motor thermal protection. The device has an IP54 protection rating and a 2-year warranty.

The DTS-M series consists of digital temperature sensors and transmitters specifically designed for reliable temperature monitoring in air ducts. They are powered by 24 VDC over Modbus (PoM). These sensors measure temperatures in the range of -30 to 70 °C. The measured temperature data is transmitted via Modbus RTU communication. A single RJ45 socket simplifies wiring by providing both the power supply and Modbus RTU connections. The durable design is low-maintenance, easy to clean, and has an IP65 protection standard. The sensors operate within a temperature range of -30 to 70 °C and a relative humidity of 5 to 95% rH (non-condensing), making them compatible with various temperature control systems.

The DTS-M series consists of digital temperature sensors and transmitters specifically designed for reliable temperature monitoring in air ducts. They are powered by 24 VDC over Modbus (PoM). These sensors measure temperatures in the range of -30 to 70 °C. The measured temperature data is transmitted via Modbus RTU communication. A single RJ45 socket simplifies wiring by providing both the power supply and Modbus RTU connections. The durable design is low-maintenance, easy to clean, and has an IP65 protection standard. The sensors operate within a temperature range of -30 to 70 °C and a relative humidity of 5 to 95% rH (non-condensing), making them compatible with various temperature control systems.

Tool to mount DTS series digital temperature sensors on a surface or on a wall. DTS sensors are often used to measure air temperature in ducts. This mounting bracket makes it possible to measure ambient temperature with a DTS temperature sensor.

Terminal block to RJ45 adapter for Modbus RTU networks. The terminal block is connected to 3 RJ45 sockets. This adapter distributes 24 Volt supply voltage and Modbus RTU communication. It helps to minimise branches in the Modbus RTU network lines. It is useful to add Sentera products with terminal block to a Modbus RTU network using RJ45 connectors. It simplifies wiring and guarantees reliable contacts.
