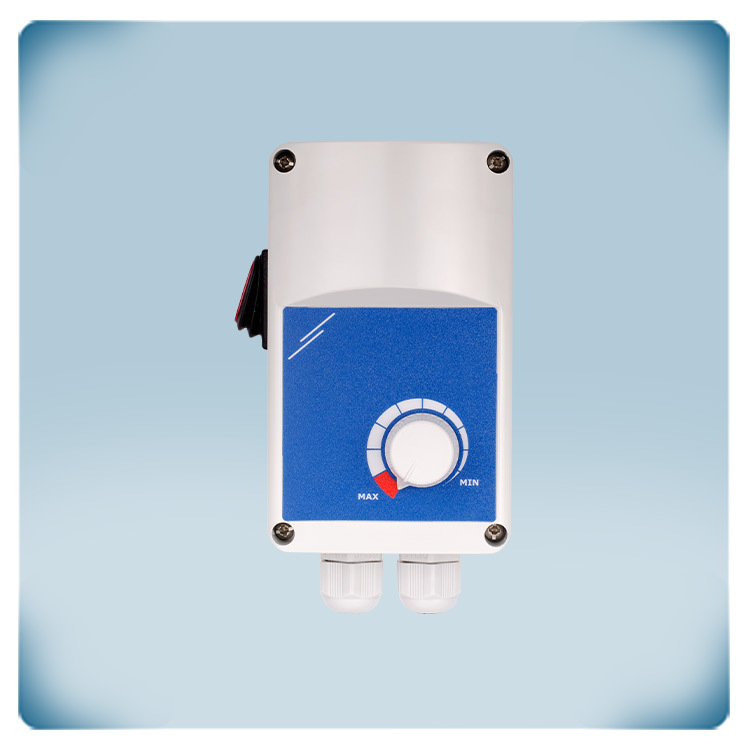

.webp "Variable speed drive")

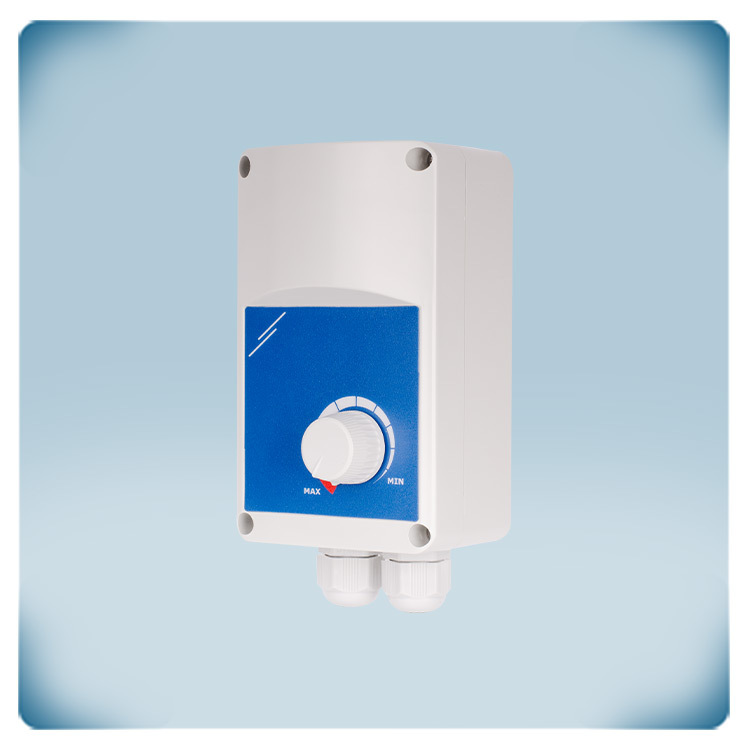

.webp "AC variable speed drive")

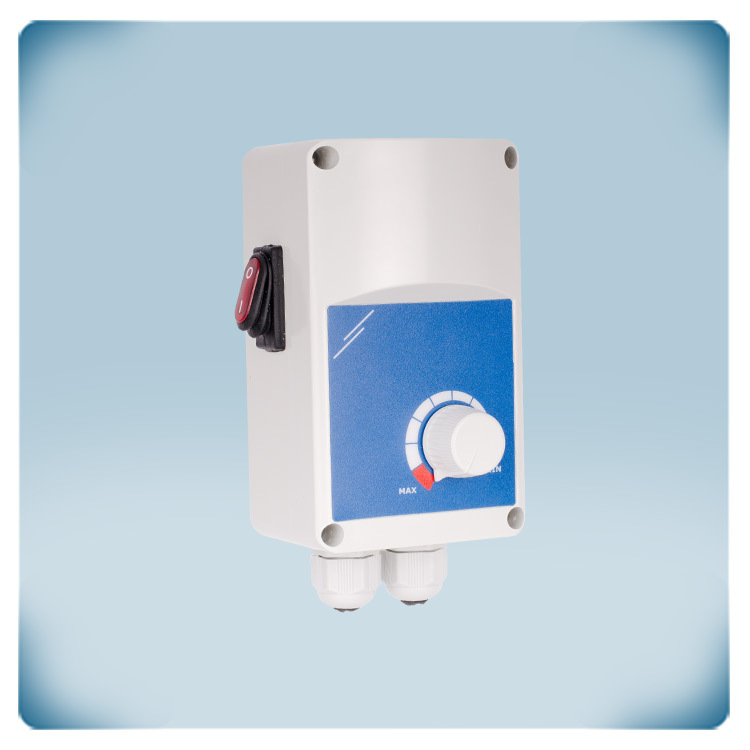

.webp "Variable speed drive with built-in potentiometer")

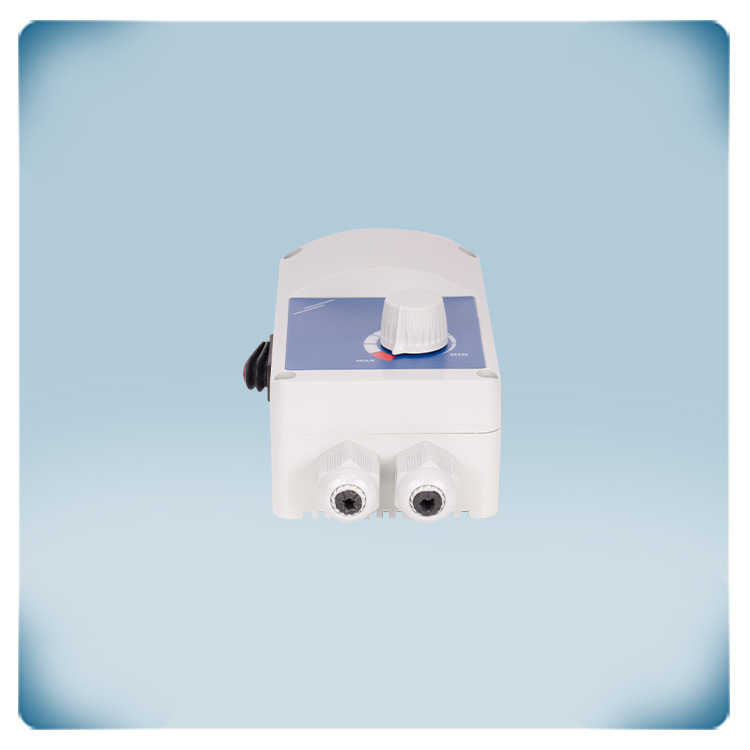

.webp "HVAC variable speed drive")

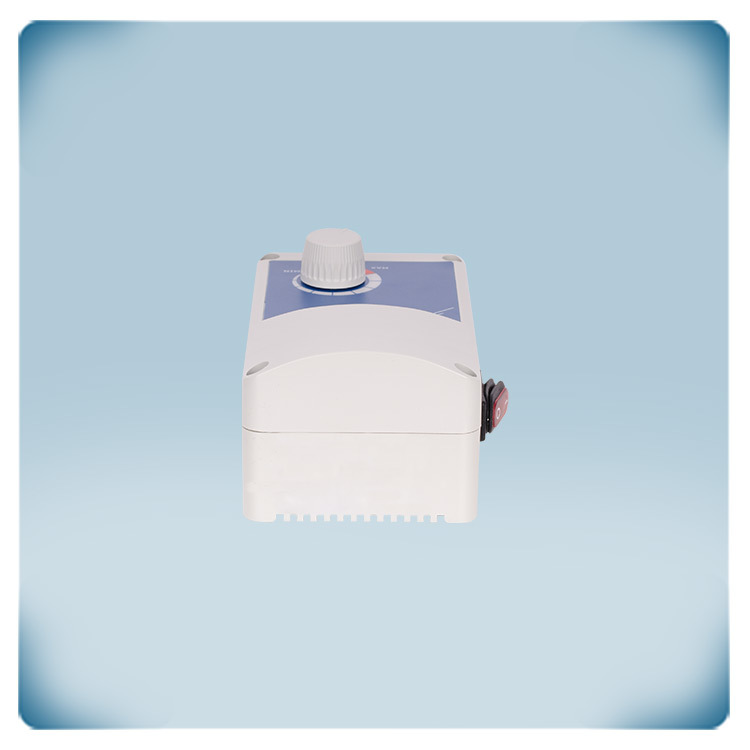

.webp "Single phase AC motor variable speed drive")
EU declaration conformity
Variable fan speed controller | 10 A
Product description
Motor Compatibility: For single-phase, voltage-controlled motors up to 10 A.
Speed Control: Adjusts speed by varying motor voltage via phase angle control (Triac).
Automatic Power Detection: Automatically detects between 110-240 VAC / 50-60 Hz.
Minimum Speed Adjustment: Adjustable via internal trimmer (30-60%).
Additional Output: Unregulated 230 VAC output for external devices.
Start Modes: Two selectable start modes (Kick Start and Soft Start) via jumper.
On/Off: Integrated on/off switch.
Protection: IP54 rated for protection against moisture, dirt, and dust.
Additional specifications and description
Why is Controlled Fan Speed Essential for Comfort and Efficiency?
In many installations, fans are oversized. In the case of AC motors, a fan speed controller can be used to reduce fan speed and to optimize the supply of fresh air. Too much ventilation is never a problem for the indoor air quality. In many cases, an excessively high fan speed causes excessive noise in the air ducts. The higher the fan speed, the higher the energy consumption. Reducing fan speed by 25% can result in energy savings (operating costs) of more than 50%. Depending on the ventilation system, heating costs can also be reduced with an optimal fan speed.
How Does This Controller Regulate AC Fan Speed?
This fan speed controller regulates the speed of AC fans by reducing the motor voltage. The voltage is reduced via phase angle control (TRIAC technology). This speed controller is therefore only suitable for voltage controllable motors. If you are not sure if your motor is voltage controllable, it is best to contact the motor manufacturer. This speed controller works completely silently. The fan speed can be controlled with the rotary knob on the front panel. Depending on the motor type, a humming motor noise may occur at low speed.
How is Minimum Fan Speed Optimized and Why is it Important?
The internal trimmer allows for adjustment of the minimum selectable motor speed. This makes it possible to optimize the fan speed range that can be selected via the knob on the front panel. Some AC motors cannot withstand prolonged low-speed operation. There is a risk that they will overheat after a while. This can damage the winding insulation and thus permanent motor damage. To avoid overheating, the minimum motor speed can be increased if desired. The motor manufacturer has to specify the minimum permissible motor voltage of a voltage controllable motor.
What Are the Different Motor Start Modes Available?
Kick start and soft start are two different ways to start the motor. The difference between the two modes is the way the AC fan will accelerate from standstill. Kick start or soft start acceleration can be selected via an internal jumper. Kick start will start the motor immediately at maximum speed. After 8 – 10 seconds, the motor will decelerate towards the requested fan speed. Soft start will smoothly accelerate the motor from standstill towards the requested fan speed. This acceleration time will be approximately 8 – 10 seconds.
How Does the ON/OFF Switch Function and Can It Be Disabled?
With the illuminated ON/OFF switch on the side, the AC fan can be activated or deactivated. The switch is illuminated if the ON position is enabled. Please read the mounting instruction and datasheet for more details.
What Is the Purpose and Application of the Unregulated Output?
When the motor is enabled, the unregulated output is active. Because this output is either ON (230 Volt) or OFF (0 Volt), it is called an ‘unregulated output'. The maximum current for this output is 2 A. It is typically used to control an external run-indicator, to open or close a damper, to switch an external relay, etc.
E.g. when the fan stops, the damper is closed. When the fan is active, the damper is open.
What Are the Installation Guidelines and Enclosure Features?
This fan speed controller can be installed on a wall or panel indoors. Make sure that the fan speed controller can sufficiently cool. Preferably install it in a cool place, away from direct sunlight. The enclosure is made of high-quality plastic type r-ABS VO (UL94). This material is flame extinguishing, very tough and offers good protection against impacts. It offers an IP54 protection against ingress dust and water.
In many installations, fans are oversized. In the case of AC motors, a fan speed controller can be used to reduce fan speed and to optimize the supply of fresh air. Too much ventilation is never a problem for the indoor air quality. In many cases, an excessively high fan speed causes excessive noise in the air ducts. The higher the fan speed, the higher the energy consumption. Reducing fan speed by 25% can result in energy savings (operating costs) of more than 50%. Depending on the ventilation system, heating costs can also be reduced with an optimal fan speed.
How Does This Controller Regulate AC Fan Speed?
This fan speed controller regulates the speed of AC fans by reducing the motor voltage. The voltage is reduced via phase angle control (TRIAC technology). This speed controller is therefore only suitable for voltage controllable motors. If you are not sure if your motor is voltage controllable, it is best to contact the motor manufacturer. This speed controller works completely silently. The fan speed can be controlled with the rotary knob on the front panel. Depending on the motor type, a humming motor noise may occur at low speed.
How is Minimum Fan Speed Optimized and Why is it Important?
The internal trimmer allows for adjustment of the minimum selectable motor speed. This makes it possible to optimize the fan speed range that can be selected via the knob on the front panel. Some AC motors cannot withstand prolonged low-speed operation. There is a risk that they will overheat after a while. This can damage the winding insulation and thus permanent motor damage. To avoid overheating, the minimum motor speed can be increased if desired. The motor manufacturer has to specify the minimum permissible motor voltage of a voltage controllable motor.
What Are the Different Motor Start Modes Available?
Kick start and soft start are two different ways to start the motor. The difference between the two modes is the way the AC fan will accelerate from standstill. Kick start or soft start acceleration can be selected via an internal jumper. Kick start will start the motor immediately at maximum speed. After 8 – 10 seconds, the motor will decelerate towards the requested fan speed. Soft start will smoothly accelerate the motor from standstill towards the requested fan speed. This acceleration time will be approximately 8 – 10 seconds.
How Does the ON/OFF Switch Function and Can It Be Disabled?
With the illuminated ON/OFF switch on the side, the AC fan can be activated or deactivated. The switch is illuminated if the ON position is enabled. Please read the mounting instruction and datasheet for more details.
What Is the Purpose and Application of the Unregulated Output?
When the motor is enabled, the unregulated output is active. Because this output is either ON (230 Volt) or OFF (0 Volt), it is called an ‘unregulated output'. The maximum current for this output is 2 A. It is typically used to control an external run-indicator, to open or close a damper, to switch an external relay, etc.
E.g. when the fan stops, the damper is closed. When the fan is active, the damper is open.
What Are the Installation Guidelines and Enclosure Features?
This fan speed controller can be installed on a wall or panel indoors. Make sure that the fan speed controller can sufficiently cool. Preferably install it in a cool place, away from direct sunlight. The enclosure is made of high-quality plastic type r-ABS VO (UL94). This material is flame extinguishing, very tough and offers good protection against impacts. It offers an IP54 protection against ingress dust and water.
