AC motor 4 A | variable fan speed control | low to high speed

AC motor 4 A | variable fan speed control | low to high speed


Lösningsbeskrivning

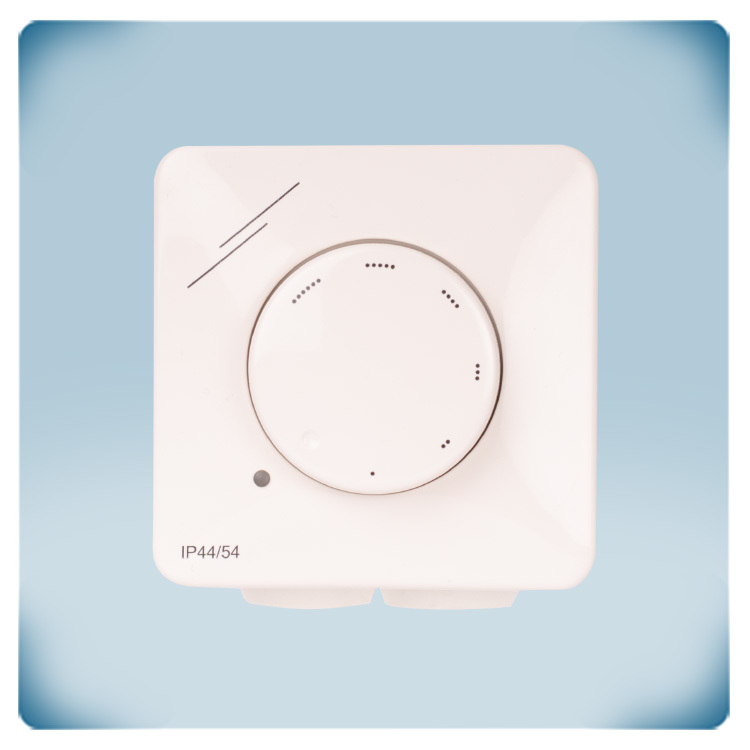

Manual controller for AC fans with single-phase voltage controllable motor. The maximum motor current is 4 A. Typically, it controls AC fan speed in HVAC applications. The fan speed can be adjusted via the potentiometer. This potentiometer has an OFF position. It controls fan speed from low to high. The supply voltage is 230 VAC. The fan speed is regulated by varying the motor voltage via phase angle control - Triac technology.

Lösningskod
GTIN
Tillgänglig
Nuvarande lager
Fabrikens ledtid

Komponenter i denna lösning

Artikelkod
Beskrivning

MTY-0-40-AT

Fan speed controller (electronic, triac), 230 VAC, 50 Hz, 4 A, surface mounting IP54.
