AC motor 4 A | variable fan speed control | low to high speed

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!
Article code MTI------001
Current stock 74 U.
Factory lead time 4 Week(s)

Solution description

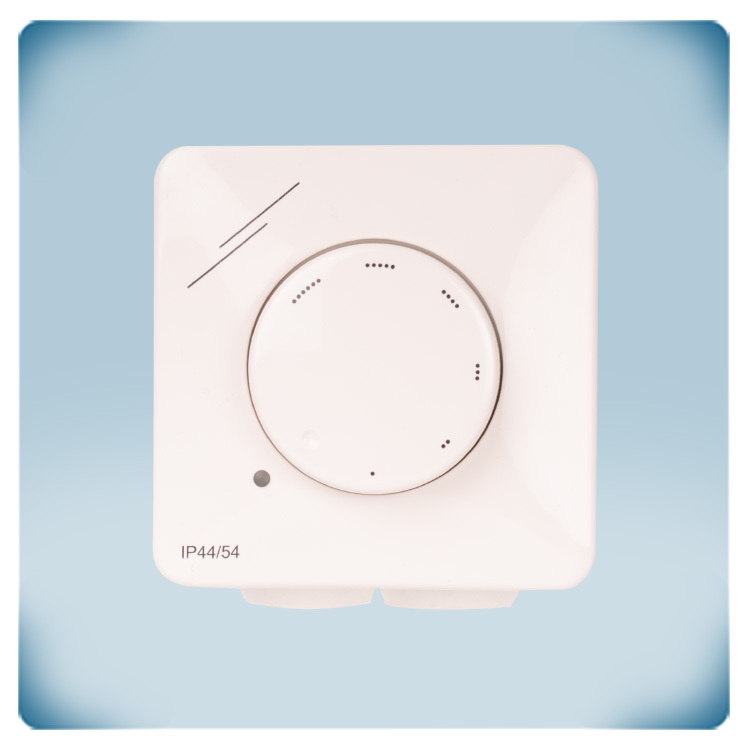

Manual controller for AC fans with single-phase voltage controllable motor. The maximum motor current is 4 A. Typically, it controls AC fan speed in HVAC applications. The fan speed can be adjusted via the potentiometer. This potentiometer has an OFF position. It controls fan speed from low to high. The supply voltage is 230 VAC. The fan speed is regulated by varying the motor voltage via phase angle control - Triac technology.

Components of this solution

Article code
Quantity
Description

MTY-0-40-AT

1 U.

This single-phase motor variable speed controller fine-tunes fan speed from low to high,. It is designed for voltage-controllable motors (up to 4 A). Minimum speed is adjusted via an internal trimmer. The controller utilizes phase angle control (Triac technology) for precise motor voltage and speed regulation. The enclosure is suited for surface mounting only. The protection rating is IP54.
