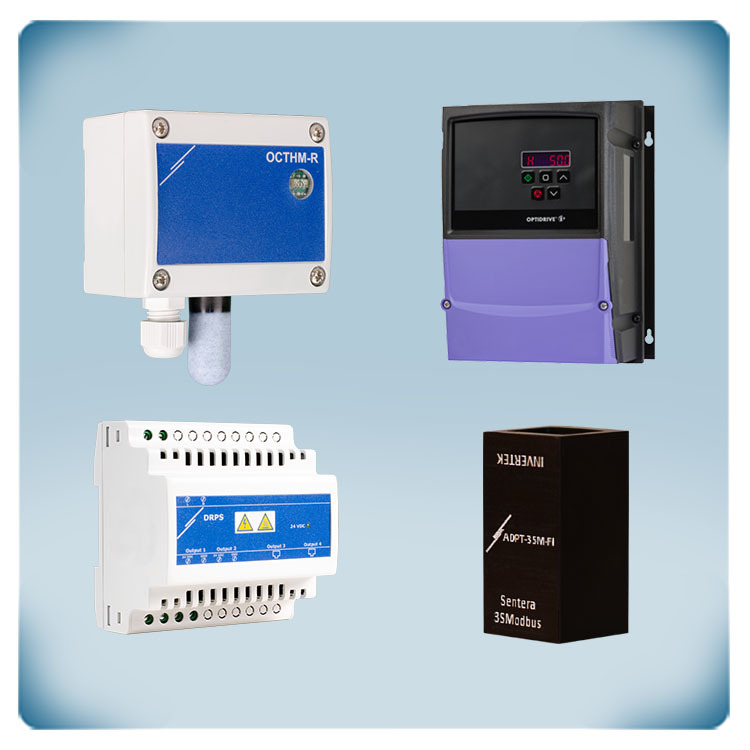

Temperature humidity control IP66 | 3 x 230 V AC motor| 2,3 A

This smart sensor is designed for regulating humidity and temperature in HVAC applications within challenging and outdoor environments. Measurement and Control It measures temperature and relative humidity (with adjustable ranges). Based on the measured values, it generates an output that can directly control an EC fan, AC fan speed controller, or a damper actuator. The ambient light sensor can be used in various applications, such as regulating ventilation systems based on room occupancy. It's suitable for both indoor and outdoor use. Power and Communication It's powered by 24 V DC PoM (Power over Modbus), meaning you can connect both Modbus RTU communication and the 24 VDC power supply via a single cable through an RJ45 connector. All measurements and output values are accessible via Modbus RTU. All settings can also be adjusted via Modbus RTU. This sensor is a comprehensive solution, providing precise HVAC control and flexibility even in demanding conditions.

Variable frequency drive with IP66 enclosure. It controls fans or centrifugal pumps with three-phase 230 Volt motors in HVAC applications. The frequency drive requires a supply voltage of single-phase 230 Volt while it controls three-phase 230 Volt motors. This drive can control motors with a maximum (combined) current of 2.3 A. This frequency inverter can control three-phase 230 Volt IE3, IE4, permanent magnet, brushless DC or synchronous reluctance motors. The motor speed can be set via the intuitive keypad or via the inputs. It is possible to select a pre-defined motor speed by activating a digital input. Another option is to use a 0-10 Volt signal to define the motor speed. Configuration of this all is simplified via 14 basic parameters and application macro functions. The enclosure is dust-tight and washdown ready. It offers an IP66 protection against ingress of dirt and water. The heatsink is corrosion resistant. The integrated EMC filter is Class C1. Manufacturers code: ODE-3-120023-1F1A

A 24-volt switched-mode power supply (SMPS) is a type of electronic power supply that converts electrical energy from one voltage level to another. This supply module with the convenience of DIN rail mounting is a versatile solution for various applications across different industries. Whether you're managing automation systems (e.g. heating or ventilation systems), control panels, or electronic devices, this power supply is the key to your reliable and secure operation. This module accepts an input voltage of 85–264 VAC / 50–60 Hz. The maximum load on this switched mode power supply is 40 Watts. The loads can be connected via the terminal block or via the RJ45 connector. Because it is designed to be mounted on a DIN rail, integrating the power supply into your electrical cabinet will be simpler. The device is shielded from dust and dirt by the IP20 protection provided by the enclosure. In addition, the safety of your electrical installation is increased by the overload and overvoltage protection. Comparing to linear power supplies, switching power supplies are more efficient, lighter, and more compact (due to their transformer-free design). Because of their high efficiency, they produce less heat and contribute to greater energy savings.

Adapter to connect Invertek frequency inverter (FI-E and FISE series) to a Sentera Modbus RTU network. The Invertek RS485 communication is converted into Modbus RTU communication. This makes it possible for the Sentera HVAC controllers to control the Invertek frequency inverters via Modbus RTU. One integrated control solution for your HVAC or ventilation system.

RJ45 to terminal block adapter for Modbus RTU networks. This adapter is useful to add Sentera products with terminal block to a Modbus RTU network using RJ45 connector. It simplifies wiring and guarantees reliable contacts.
