Induction motor 7 A | air quality control | IP65

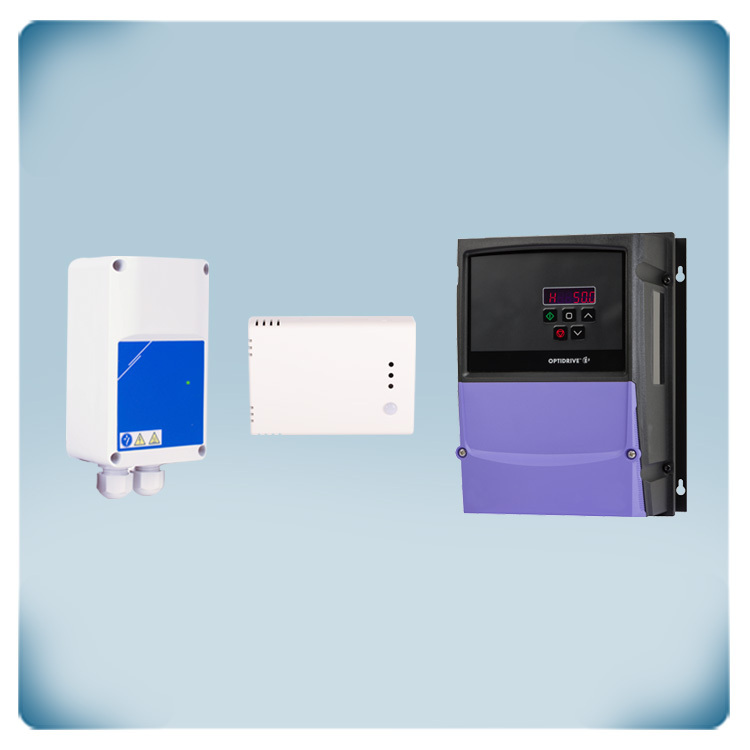

This sensor measures temperature, relative humidity, TVOC (Total Volatile Organic Compounds), and ambient light, and is typically used in commercial and residential HVAC applications. Measurement and Output It measures temperature, relative humidity, TVOC, and ambient light levels. Measured values are transmitted via three analog outputs (0-10 V default, with selectable types available) and Modbus RTU. Control and Flexibility The ambient light sensor can be used to control the ventilation system based on room occupancy. All settings can be configured via Modbus RTU. The light intensity of the LEDs used for status indication is adjustable. Maintenance The TVOC sensor element can be replaced when necessary. This sensor offers comprehensive air quality monitoring and flexible control capabilities.

A 24 Volt supply module is an electronic device that converts an input voltage of 230 VAC to a 24 VDC output voltage. It is frequently used in a variety of applications, including industrial automation, medical equipment, and building automation. This switching power supply can alter an 85-264 VAC input voltage into a 24 VDC output voltage. It can supply loads up to 40 Watts. Your electrical installation is more secure because of the overload and overvoltage protection. The load can be connected using either an RJ45 connector or a screw terminal block. Due to its firm enclosure, which offers IP65 protection against the ingress of water and dirt, is the installation of this power supply in harsh environments possible. In comparison to linear power supplies, switching power supplies are more efficient, lighter, and more compact (due to their transformer-free design). Because of their high efficiency, they produce less heat and contribute to greater energy savings.

Frequency converter to regulate the speed of single-phase motors. It is designed to control fans or pumps in HVAC applications. The motor speed can be set via the intuitive keypad or via the inputs. Configuration is simplified via 14 basic parameters and application macro functions. This frequency converter can control permanent split capacitor motors or shaded pole induction motors. The integrated EMC filter is Class C1. The maximum motor current is 7 A. The enclosure is dust-tight and washdown ready. It offers an IP66 protection against ingress of dirt and water. Its heatsink is corrosion resistant. The supply voltage is 230 VAC. The integrated EMC filter is Class C1. Manufacturers code: ODE-3-120070-1F1A-01
