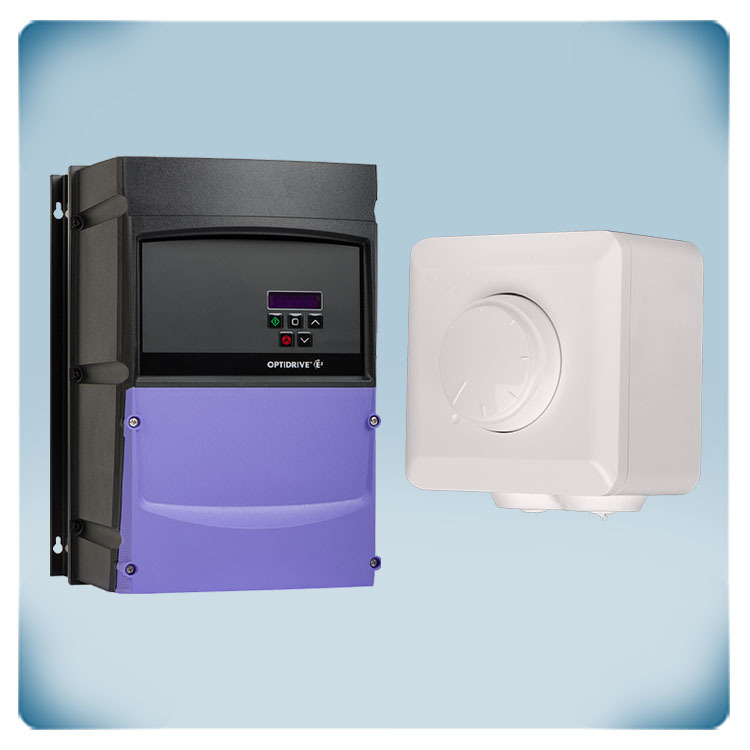

Induction motor 3ph 230 V | remote control | 46 A | 11,0 kW | IP66

Variable frequency drive in dust-tight and washdown ready enclosure. It controls fans and pumps with three-phase 230 Volt motors. It is optimised for HVAC applications. This VFD is particularly simple to use. For most applications it is not necessary to change the default settings. The required supply voltage is three-phase 230 Volt. Various types of three-phase 230 Volt motors can be controlled: IE3 or IE4 induction motors, permanent magnet motors, brushless DC or synchronous reluctance motors. One or multiple motors with a (combined) maximum current of 46 A can be controlled by this drive. Motor speed can be set via the intuitive keypad or via the inputs. Configuration is simplified via 14 basic parameters and application macro functions. The enclosure can be DIN rail mounted in an electrical cabinet. It offers an IP66 protection against ingress of water and dust. The integrated EMC filter is Class C1. Manufacturers code: ODE-3-420460-3F4A

The SDP-M010-AT is a potentiometer for precise ventilation system control. It features Modbus RTU integration, enabling networking with a Building Management System (BMS) or the SenteraWeb cloud. Here are its key features: Versatile Control: It controls various devices like EC fans and frequency inverters. Manual & Remote Control: A rotary knob provides continuous manual control with an OFF-position. Parameters like min/max levels and inverse control can be adjusted remotely via Modbus. Durable Design: The device has a splash-proof enclosure and supports both inset (IP44) and surface (IP54) mounting.
