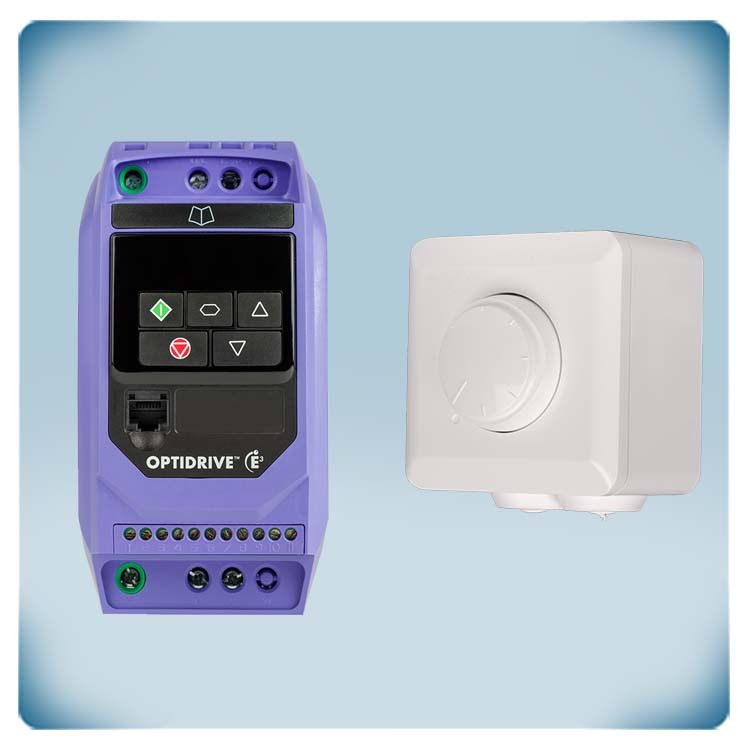

Induction motor 1ph 230 V | remote control | 10,5 A | 1,1 kW | IP20

Variable speed drive for single-phase motors. The motor speed can be set via the intuitive keypad or via the inputs. Configuration is simplified via 14 basic parameters and application macro functions. This frequency drive is designed to control fans or pumps in HVAC applications. The maximum motor current is 10.5 A. This frequency inverter can control single-phase permanent split capacitor motors and shaded pole induction motors. The supply voltage is 230 Volt. The integrated EMC filter is Class C1. The enclosure can be DIN rail mounted in an electrical cabinet. It offers an IP20 protection against ingress of dust. Manufacturers code: ODE-3-220105-1F42-01

With this 10 KOhm potentiometer you can directly control EC fans. If you want to control the speed of an AC motor, connect this potentiometer to an Electronic Fan Speed Controller (EVS, MVS) or frequency converter (FI-E). This potentiometer has an adjustable resistance of 0-10 kΩ. The device does not require a specific power supply, but the input signal must be between 0 and 24 VDC. Most EC fans, electronic speed controllers or frequency converters have an output with the required voltage. Depending on the position of the dial, the feedback voltage varies, regulating the Fan Speed. The dry contact output can be used to remotely give a start-stop command to the fan or other equipment. The splash-proof housing allows recessed installation (IP44) or surface mounting (IP54).
