Fan speed controller for inset as well as for surface mounting

EC motor 400 V | variable speed control

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!

Article code LT0------002

Current stock 17 U.

Factory lead time 4 Week(s)

Solution description

Potentiometer for EC fans. EC fan speed can be manually adjusted from low to high. In OFF position, the motor is disabled - the control signal is 0 Volt in OFF position. We advise to keep the cable length between potentiometer and EC fan limited. The potentiometer supply voltage is 230 VAC.

Documents

Schematic overview

Components of this solution

Article code

Quantity

Description

LTV-1-010-NA

1 U.

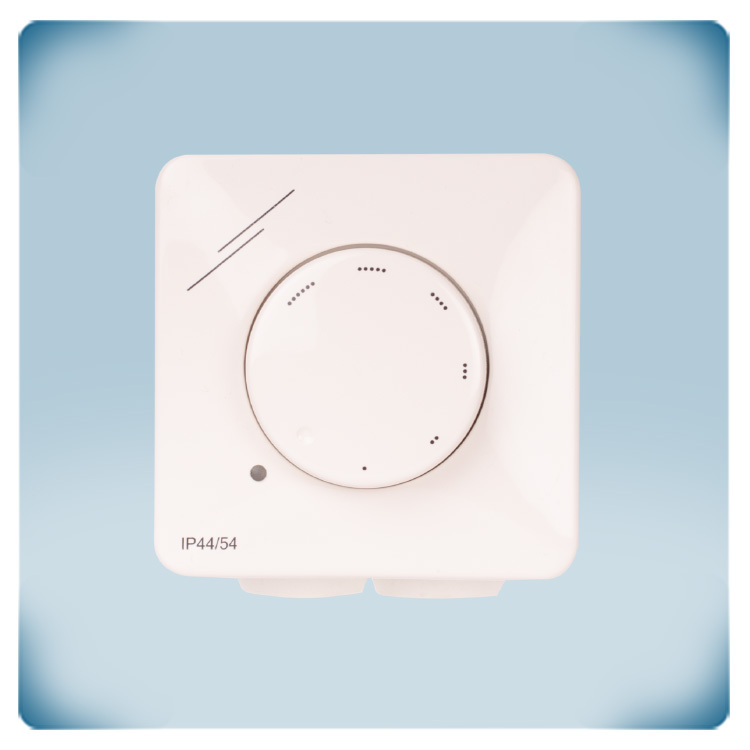

The LTV Potentiometer is a device for controlling ventilation systems. It operates on a 230 VAC supply and provides a 0-10 VDC output signal to manage devices like EC fans and valve actuators. Here are its key features: Variable Control: The rotary knob offers continuous control and has a distinct OFF-position for zero output. Status Indicator: A green LED lights up when the output voltage is above 0V, indicating the system is active. It turns off when the system is in the OFF-position. Flexible Mounting: The splash-proof enclosure supports both inset mounting (IP44) and surface mounting (IP54).
