EC motor 230 V | variable speed control | trimmer

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!

Article code PT1------001

Current stock 60 U.

Factory lead time 4 Week(s)

Next arrival 27/06/2025 - 500 U.

Solution description

Trimmer for EC fan. The PTV trimmer with pitch 10 mm can be connected to the terminal block of the EC fan. The input voltage is 0-30 VDC - most EC fans provide this supply voltage. The resistance value is 0 to 10 kOhms. The fan speed can be set via the trimmer.

Documents

Schematic overview

Components of this solution

Article code

Quantity

Description

PTV-X10.0

1 U.

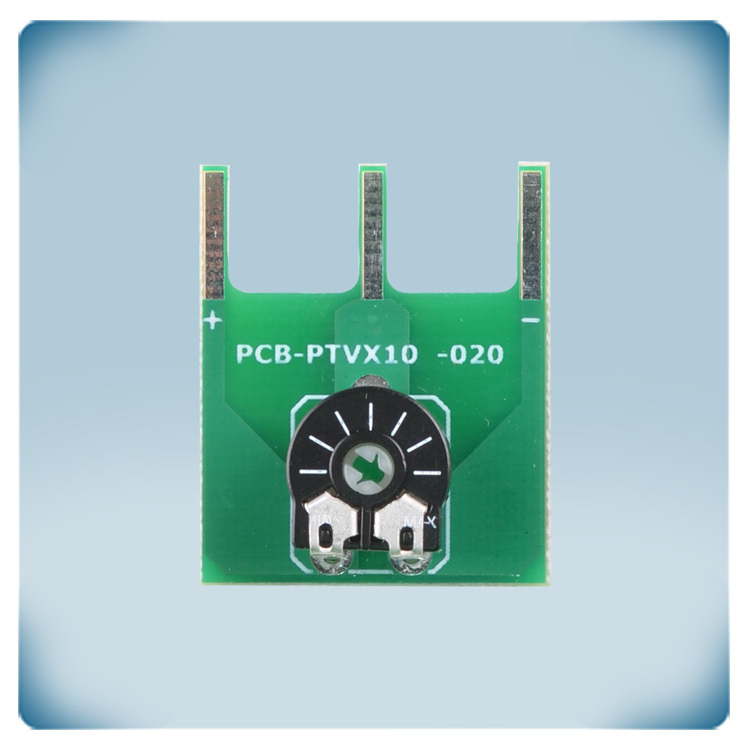

Electronic circuit board with 10 kΩ trimmer to set EC fan speed. This trimmer can be mounted in a standard terminal block with a pitch of 10 mm. It can be integrated in an installation to adjust fan speed. The resistance value is 0 to 10 kΩ. It can handle an input voltage in the range of 0 to 30 VDC. The variable output signal (resistance value) can be set via the trimmer. There are two product versions: PTV-X05.5 for mounting in terminal blocks with a pitch of 5 mm and PTV-X10.0 for mounting in terminal blocks with a pitch of 10 mm.
