Potentiometer 10 Kohm | PCB with trimmer | pitch 10 mm

Article code PTV-X10.0
GTIN 14 5401003301623
Intrastat number 85.34.00.90
Category Unpowered potentiometers

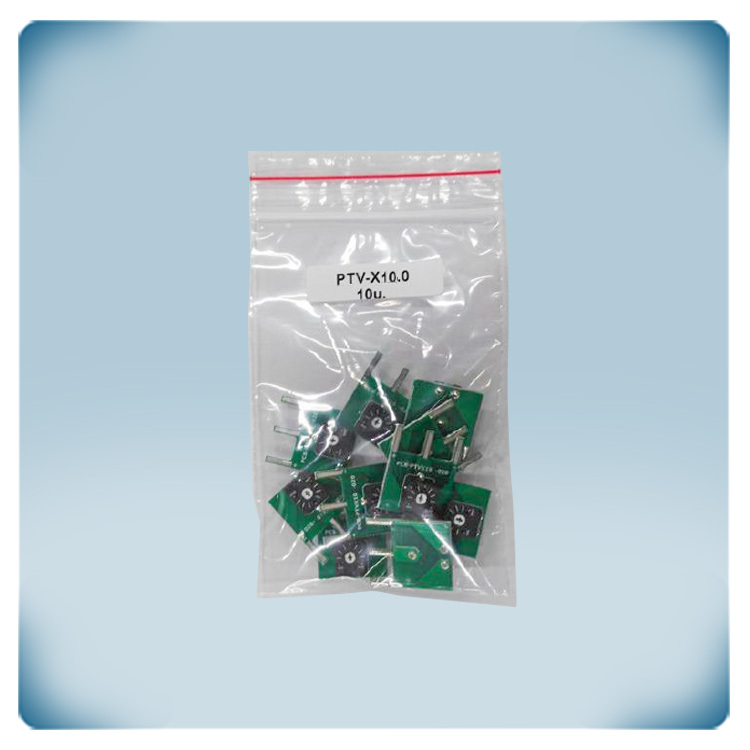

Current stock 203 BAG
Factory lead time 4 Week(s)
Next arrival 01/08/2025 - 50 BAG

Product description

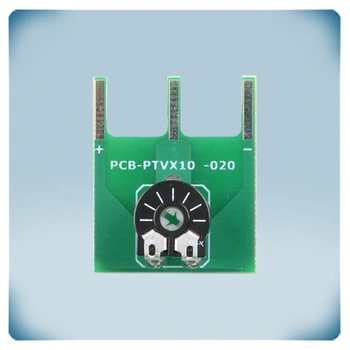

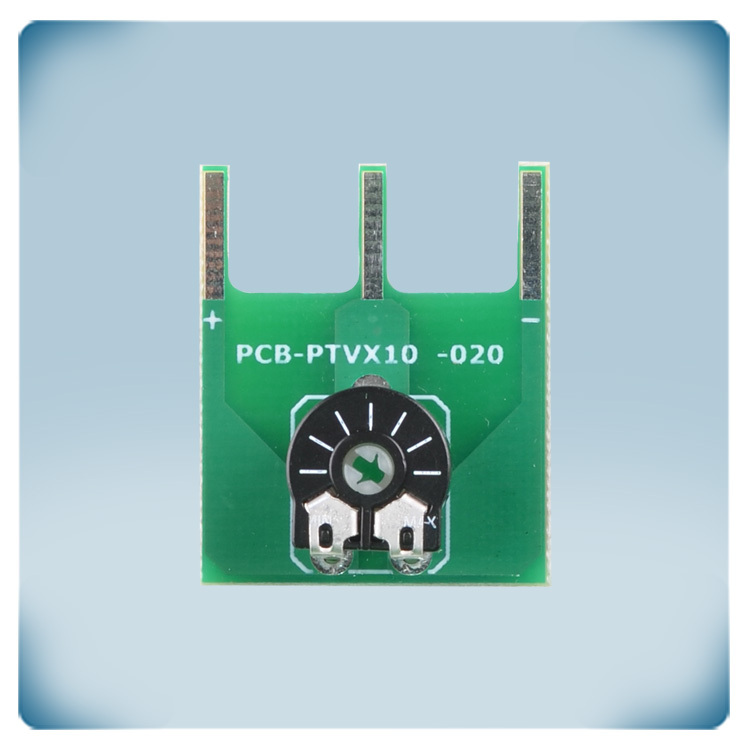

Electronic circuit board with 10 kΩ trimmer to set EC fan speed. This trimmer can be mounted in a standard terminal block with a pitch of 10 mm. It can be integrated in an installation to adjust fan speed. The resistance value is 0 to 10 kΩ. It can handle an input voltage in the range of 0 to 30 VDC. The variable output signal (resistance value) can be set via the trimmer. There are two product versions: PTV-X05.5 for mounting in terminal blocks with a pitch of 5 mm and PTV-X10.0 for mounting in terminal blocks with a pitch of 10 mm.

Additional specifications and description


PCBs with potentiometer
How does it work?
The output value of the trimmer can be set in the range of 0 – 10 KΩ.

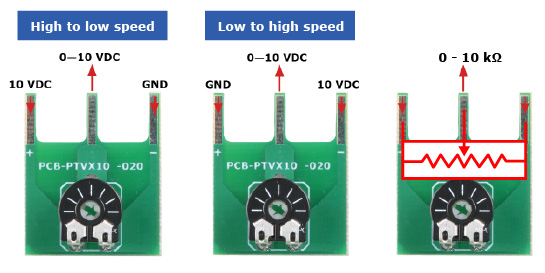

If a voltage of 10 VDC is connected to both outer pins, the middle pin returns a 0-10 Volt signal. By turning the trimmer with a screwdriver, the signal can be set in the range of 0-10 Volt (or 0-100 % of the supplied voltage).

Input voltage
The trimmer has a resistance value of 0 - 10 kΩ. It can handle input voltages in the range of 0 to 30 VDC. Voltages higher than 30 VDC will generate an electrical current that is too high and will damage the potentiometer.

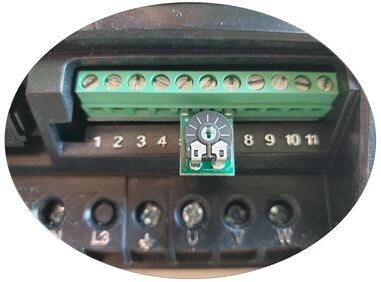

Trimmer on terminal block

Fits in terminal blocks with 10 mm pitch
This trimmer can be mounted in a terminal block with a pitch of 10 mm.  The pins of this PCB have a pitch of 10 mm. This PCB fits in the terminal block of Sentera fan speed controllers and frequency inverters with a pitch of 10 mm.

A typical application is to insert the PTV potentiometer in the terminal block of a fan speed controller. As soon as the enable signal goes high, the motor accelerates towards the set speed.
