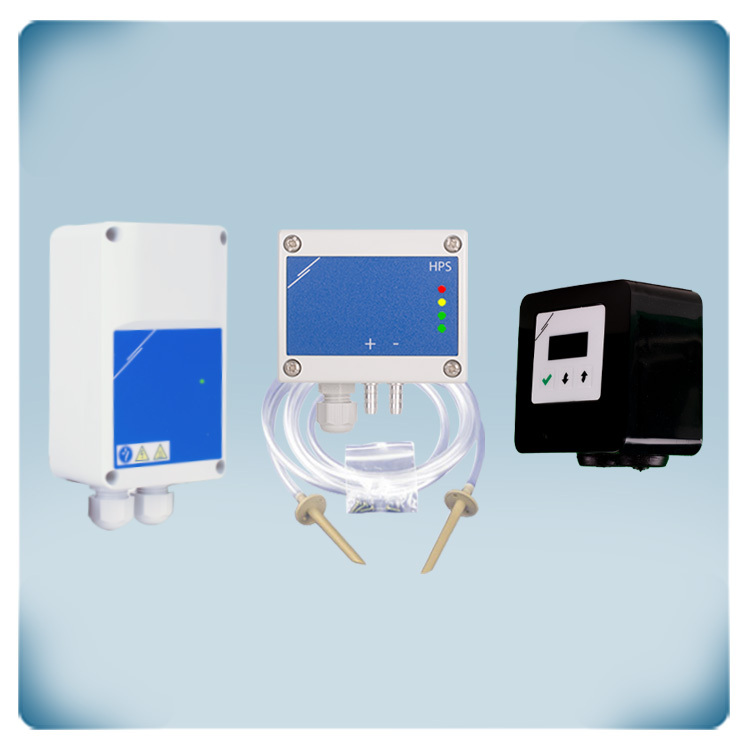

EC motor 230 V | Constant pressure control: 0 - 1.000 Pa | display

This HVAC sensor measures differential pressure within the range from 0 to 1.000 Pa and operates with a supply voltage of 24 VDC. This sensor can also measure air volume flow or air velocity. The measured value is available via the analogue output and via Modbus RTU communication. The output type is selectable (0—10 VDC, 0—20 mA or 0—100 % PWM). The four LED indicators provide a visual indication of the sensor status and the measured values. The differential pressure range and all other settings are adjusted via Modbus RTU.

The RDCV EC fan speed controller is a sophisticated digital potentiometer and HVAC controller designed for precision in ventilation control. Encased in a sleek anthracite housing with a contemporary style, this controller offers versatile functionality to meet your ventilation needs. The enclosure offers both surface and inset mounting options, ensuring compatibility with diverse ventilation setups. In manual mode, effortlessly fine-tune your system using the intuitive 3-button interface. The analogue output is a powerhouse, capable of controlling EC fans, AC fan speed controllers, frequency inverters, or damper actuators. Choose between a continuously variable output or segment it into 2-10 equal steps, with adjustable minimum and maximum values to tailor performance to your requirements. For a seamless automated experience, connect a Sentera HVAC sensor to activate automatic mode. Now, the analogue output responds dynamically to ambient temperature, relative humidity, CO2 concentration, air quality (TVOC concentration) or differential pressure. Modify setpoints and parameters easily through the 3-button interface or Modbus RTU communication. This advanced controller operates within a supply voltage range of 110 - 230 VAC, providing flexibility for various applications.

A 24 Volt supply module is an electronic device that converts an input voltage of 230 VAC to a 24 VDC output voltage. It is frequently used in a variety of applications, including industrial automation, medical equipment, and building automation. This switching power supply can alter an 85-264 VAC input voltage into a 24 VDC output voltage. It can supply loads up to 40 Watts. Your electrical installation is more secure because of the overload and overvoltage protection. The load can be connected using either an RJ45 connector or a screw terminal block. Due to its firm enclosure, which offers IP65 protection against the ingress of water and dirt, is the installation of this power supply in harsh environments possible. In comparison to linear power supplies, switching power supplies are more efficient, lighter, and more compact (due to their transformer-free design). Because of their high efficiency, they produce less heat and contribute to greater energy savings.

Set of nozzles and PVC tubes to connect a differential pressure sensor or controller to the ductwork. It contains 2 plastic nozzles (L 66.6 mm, D 6 mm) and 2 flexible, transparent PVC tubes with a length of 2 m and a maximum working pressure of 10.000 Pa. The screws to fix the nozzles in standard ductworks are also included. This set is designed for HVAC applications and can be used in combination with differential pressure transmitters, controllers or switches.
