AC motor 6 A | Remote fan speed control | operating LED indicator

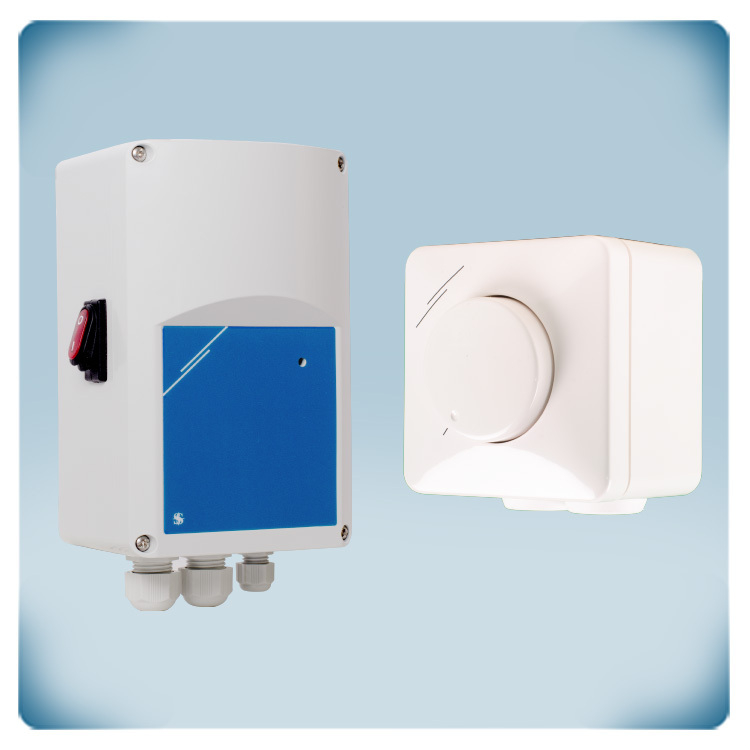

The EVS-1-60-DM electronic speed controller is a sophisticated solution for automatic speed control of single-phase voltage-controllable motors (230 VAC / 50—60 Hz). Equipped with Modbus RTU communication, this unit offers remote control options, adjustable off level, and min. and max. output voltage settings. With a maximum current of 6 A, it provides time-limited motor operation initiated by logic or switch signals. The integrated ON-OFF switch and digital input enable versatile motor control. Precise adjustments are possible with internal trimmers and Modbus RTU.

Control your ventilation with our LTV Potentiometer, a straight forward 0-10 V device designed for optimal control of EC fan speed, AC fan speed controllers or valve actuators. Operating at a supply voltage of 230 VAC, the LTV potentiometer delivers a variable output signal ranging from 0 to 10 VDC, easily adjustable via its user-friendly rotary knob. This knob features a distinctive off-position, ensuring a seamless transition to zero output in a simple turn. The splash-proof enclosure further enhances its adaptability, allowing for both inset mounting (IP44) and surface mounting (IP54), making it a reliable choice for diverse installation needs. When you turn the rotary knob clockwise, the output voltage goes above 0 V. At this point, the green LED lights up, indicating the system is active and not in the "off" position. If the system is in the "off" position (meaning the output voltage is at 0 V), the green LED turns off. This clearly shows the system is inactive.
