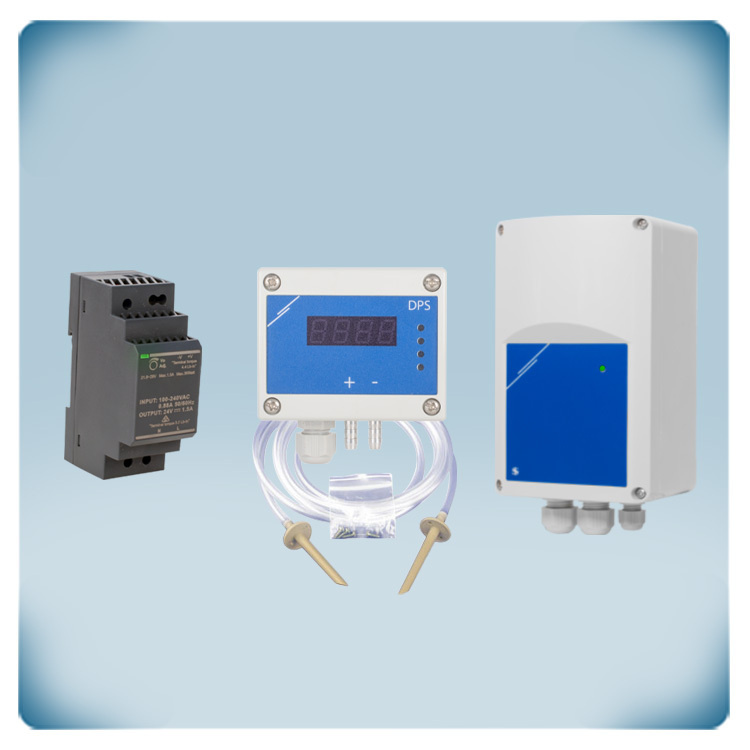

AC motor 6 A | differential pressure control 0 - 1.000 Pa

The EVS-1-60-DM electronic speed controller is a sophisticated solution for automatic speed control of single-phase voltage-controllable motors (230 VAC / 50—60 Hz). Equipped with Modbus RTU communication, this unit offers remote control options, adjustable off level, and min. and max. output voltage settings. With a maximum current of 6 A, it provides time-limited motor operation initiated by logic or switch signals. The integrated ON-OFF switch and digital input enable versatile motor control. Precise adjustments are possible with internal trimmers and Modbus RTU.

Differential pressure controller with display for fans. A typical application is Variable Air Volume flow or VAV control. The supply voltage is 24 VDC. The operating range is 0 to 1.000 Pa. It controls fan speed to maintain differential pressure or air volume flow constant at the set point. Air velocity control is also possible in combination with a Pitot tube connection set: PSET-PTX. The setpoint can be adjusted via Modbus RTU communication. The sensor output controls EC fans, frequency inverters or AC fan speed controllers via 0-10 V. Another output type can be selected if necessary. The 7-segment LED display and the four LED indicators provide a clear visual indication of the transmitter status and the controlled values. The differential pressure setpoint and all other settings can be adjusted via Modbus RTU.

DIN rail mounted 24 Volt power supply module is an electrical device used to convert input voltage (typically AC mains voltage or a different DC voltage) into a stable 24 VDC (volts of direct current) output voltage and is designed to be mounted on DIN rails in electrical cabinets. This power supply delivers a 24 VDC, making it compatible with a wide range of electronic devices and systems. The device accepts an input voltage of 85–264 VAC / 50–60 Hz and the maximum load of 36 W can be connected to it. Use of the terminal block is possible for connecting the load. The supply module is protected by an IP20 enclosure and the safety of your electrical installation is increased by the overload and overvoltage protection. Some of the key sectors where this switching power supply can be used are building automation (e.g. HVAC controlling), industrial automation (e.g. providing stable power to sensors, controllers, etc.), renewable energy (e.g. solar power systems) or as laboratory equipment. Switching power supplies are comparing to the linear power supplies more efficient, lighter, and more compact (due to their transformer-free design). Because of their high efficiency, they produce less heat and contribute to greater energy savings.

Set of nozzles and PVC tubes to connect a differential pressure sensor or controller to the ductwork. It contains 2 plastic nozzles (L 66.6 mm, D 6 mm) and 2 flexible, transparent PVC tubes with a length of 2 m and a maximum working pressure of 10.000 Pa. The screws to fix the nozzles in standard ductworks are also included. This set is designed for HVAC applications and can be used in combination with differential pressure transmitters, controllers or switches.
