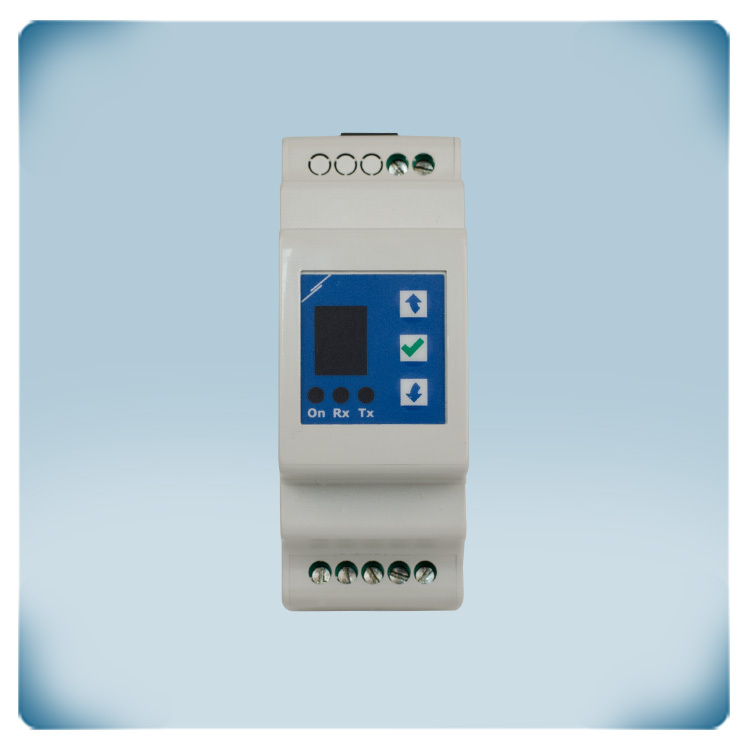

plastic enclosure, display, key button interface

AC motor 2,5 A | variable speed control | DIN rail

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!

Article code DRU------001

Current stock 2 U.

Factory lead time 4 Week(s)

Solution description

Variable speed control for AC fans with single-phase motor. The maximum motor current is 2,5 A. The enclosure requires DIN rail mounting. The fan speed can be adjusted via the 3-button interface. The motor can be enabled or disabled via the middle button with green checkmark. The supply voltage is 230 VAC. The fan speed is regulated by varying the motor voltage via phase angle control - Triac technology.

Documents

Schematic overview

Components of this solution

Article code

Quantity

Description

DRE-1-25-DT

1 U.

Introducing the DRE Digital Electronic Speed Controller, a DIN rail-mounted solution for precise control of single-phase voltage controllable motors. Operating at 230 VAC with a maximum current of 2.5 A, this controller employs Triac technology for fan speed regulation. Adjust the speed range via Modbus RTU, utilizing the 1-digit, 7-segment LED display and 3-button keyboard interface. With 9-step output voltage regulation, normal/inverse mode selection, and Modbus RTU (RS485) communication, it ensures versatile control. The DIN rail-mounted enclosure, kick start/soft start options, and easy monitoring via the 3SModbus application make this controller an efficient solution for motor control. Experience seamless operation with the DRE series, designed for DIN rail mounting and featuring a green LED operating indication
