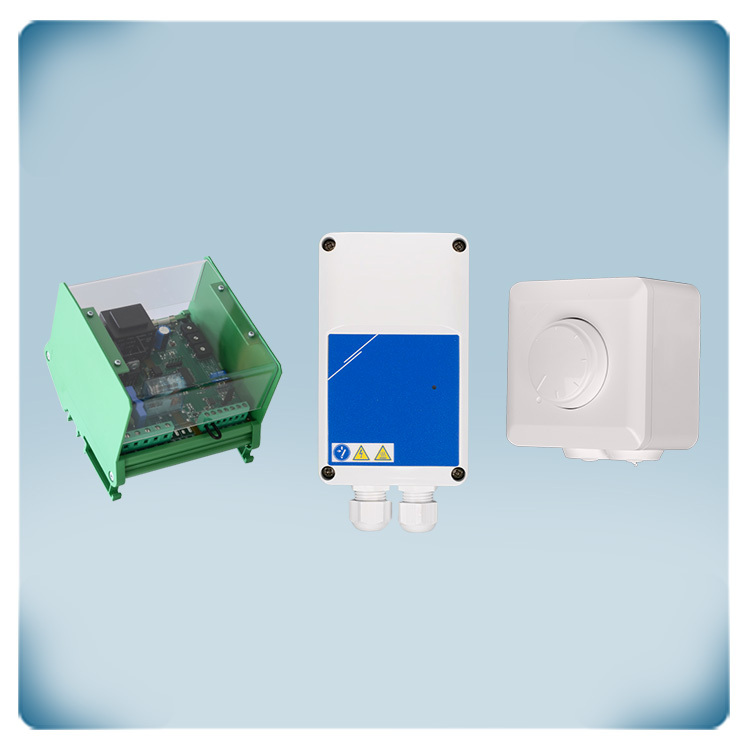

AC motor 1,5 A | Remote control | TK monitoring | DIN rail

This electronic fan speed controller provides precise fan speed regulation for 230 V single-phase motors with a maximum current of 1,5 A. It features an invertible analogue input signal, accepting either 0-10 / 10-0 VDC or 0-20 / 20-0 mA. It also includes a remote control input with selectable functionality (normal or timer), as well as an analogue input with normal or logic functionality for timer-based starts. The minimum and maximum output voltage can be set by internal trimmers or via Modbus RTU communication. The off value is also adjustable by trimmer or via Modbus. The device supports both kick start and soft start modes. It has one regulated output for the motor, one unregulated output (230 VAC / max. 2 A) for a 3-wire motor connection or voltage supply, and a low voltage supply output (+12 VDC / 1 mA) for an external 10 kΩ potentiometer. The device provides clear status indicators with a green LED for normal operation and a red LED for overheating. It also features an alarm output (230 VAC / 1 A) and is designed for DIN rail mounting.

The SDP-M010-BT is a potentiometer for precise ventilation control with advanced Modbus RTU integration, connecting to a BMS or the SenteraWeb cloud. It offers continuous manual control via a rotary knob, but lacks an OFF-position to prevent accidental shutdowns. Key parameters and inverse control can be adjusted remotely through Modbus. The device is durable, with a splash-proof enclosure and mounting options for IP44 inset or IP54 surface protection.

A 24 Volt supply module is an electronic device that converts an input voltage of 230 VAC to a 24 VDC output voltage. It is frequently used in a variety of applications, including industrial automation, medical equipment, and building automation. This switching power supply can alter an 85-264 VAC input voltage into a 24 VDC output voltage. It can supply loads up to 40 Watts. Your electrical installation is more secure because of the overload and overvoltage protection. The load can be connected using either an RJ45 connector or a screw terminal block. Due to its firm enclosure, which offers IP65 protection against the ingress of water and dirt, is the installation of this power supply in harsh environments possible. In comparison to linear power supplies, switching power supplies are more efficient, lighter, and more compact (due to their transformer-free design). Because of their high efficiency, they produce less heat and contribute to greater energy savings.
