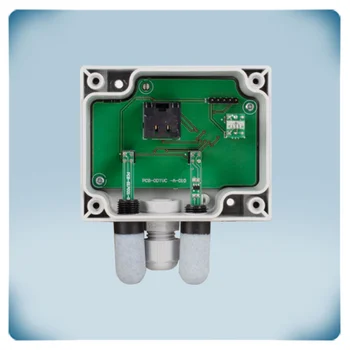

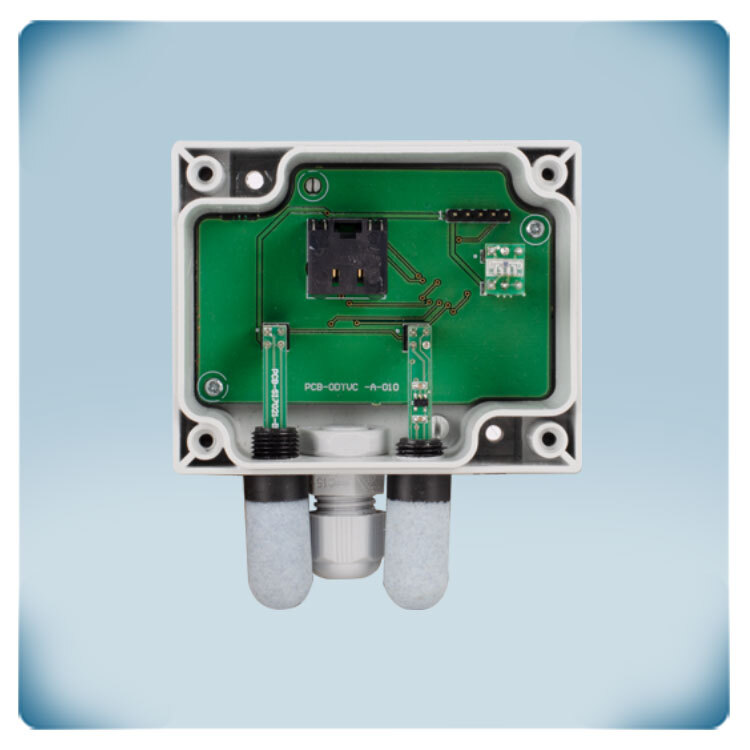

Electronic circuit board in plastic enclosure

TVOC controller | IP65 enclosure, PoM


Product description

Air quality controller for harsh environments. The supply voltage is 24 VDC PoM - this means that Modbus RTU communication and 24 VDC power supply can be connected via the RJ45 socket. It measures temperature, relative humidity, air quality (TVOC) and ambient light level. It can be used in harsh environments or in outdoor applications. The sensor algorithm can directly control an EC fan, an AC fan speed controller or a damper actuator via Modbus RTU communication. All measurements and the output value are available via Modbus RTU. The TVOC sensor element is replaceable. In many applications, the ambient light sensor can be used to control the ventilation system in function of the occupancy of the room. All settings can be adjusted via Modbus RTU.




Article code
OCVCM-R
GTIN
0.540.100.301.816.3
Category
Outdoor TVOC sensors
Available
Current stock
5 U.
Factory lead time
5 Week(s)
Documents
EU declaration conformity
EU declaration conformity

icon-downloadEU declaration conformity

Datasheet
Datasheet

icon-downloadDatasheet

Modbus register map
Modbus register map

icon-downloadModbus register map

Mounting instruction
Mounting instruction

icon-downloadMounting instruction

Additional specifications and description


How does it work
This HVAC transmitter measures temperature, relative humidity, air quality (TVOC) and ambient light level. Based on the temperature and humidity measurement, the dew point is calculated. All these values are available via Modbus RTU communication. The sensor algorithm can directly control an EC fan, an AC fan speed controller or a damper actuator via Modbus RTU communication. The output value varies proportionally in function of the measured temperature, relative humidity and TVOC level. E.g. as temperature, relative humidity or CO2 level approaches their maximum limit, fan speed will increase or the damper will open.

Reduced installation time
One RJ45 connector is all it takes to connect this sensor! Modbus RTU communication and 24 VDC power supply are connected via one UTP cable - we call it Power over Modbus or PoM. All measured values are available via Modbus RTU communication. Most 24 VDC power supplies offer protection against short circuit, overload and overvoltage. A 24 VDC supply voltage increases the safety and reliability of your installation.

Easy to use!
This sensor doesn't require any configuration. Once installed, it is ready to use. The default settings will do for most applications. If necessary, the settings can be adjusted via Modbus RTU. For example, the temperature or relative humidity range can be adjusted via Modbus RTU. Also the light intensity of the LEDs for status indication is adjustable. The Modbus register map provides a complete overview of all adjustable settings.

High quality
The enclosure is made of high-quality r-ABS VO (UL94) plastic. This material is heat resistant, solid and offers good protection against impacts. It offers an IP65 protection against ingress of dust and water. Each sensor is calibrated and tested in our factory. We use sensor elements and components of high quality. This ensures the long-term stability and accuracy of this HVAC transmitter. To ensure optimal performance, it should be protected from direct sunlight.
