Temperature | humidity controller flush mounting | 230 V AC

Article code FCTH8
GTIN 0.540.100.300.623.8
Intrastat number 90.32.89.00
Category Room temperature and humidity controllers
Current stock 3 U.
Factory lead time 4 Week(s)
Next arrival 26/04/2024 - 5 U.

Product description

Temperature, relative humidity, and ambient light level are all measured by this room sensor. The unique enclosure allows for either flush or surface mounting. The supply voltage ranges from 85 to 264 V AC. Based on the measured values, the sensor algorithm controls the single analogue output. This single output can control an EC fan, an AC fan speed controller, or a damper actuator directly.

The output type can be chosen. Modbus RTU provides access to all measurements and the output value. The ambient light sensor can be used in many applications to control the ventilation system based on the occupancy of the room. Modbus RTU can be used to change all of the settings. The light intensity of the LEDs used for status indication can also be adjusted.

This HVAC sensor is frequently used to regulate humidity and temperature in data centers, museums, libraries, wine cellars, etc.

Additional specifications and description


Is the temperature OK?
The temperature, relative humidity, and ambient light level are all measured by this HVAC transmitter. The green, yellow, and red LED provide a distinct visual indication of the temperature. The green LED shows that the temperature is within the acceptable limits. The yellow LED turns on when the temperature reaches the alert range. Red indicates extreme temperatures. The LEDs can also be used to visualise relative humidity. Through Modbus RTU communication, the measured temperature, relative humidity, and ambient light level are available.

How can condensation be avoided?
The output of this sensor can operate a damper actuator, an AC fan speed controller, or an EC fan directly. Temperature and relative humidity are maintained within their ranges through proportional regulation of the sensor output value. For instance, the controller might speed up the fan or open the damper if the relative humidity rises. The Modbus holding registers can be used to change the ranges and other settings.

Easy connection

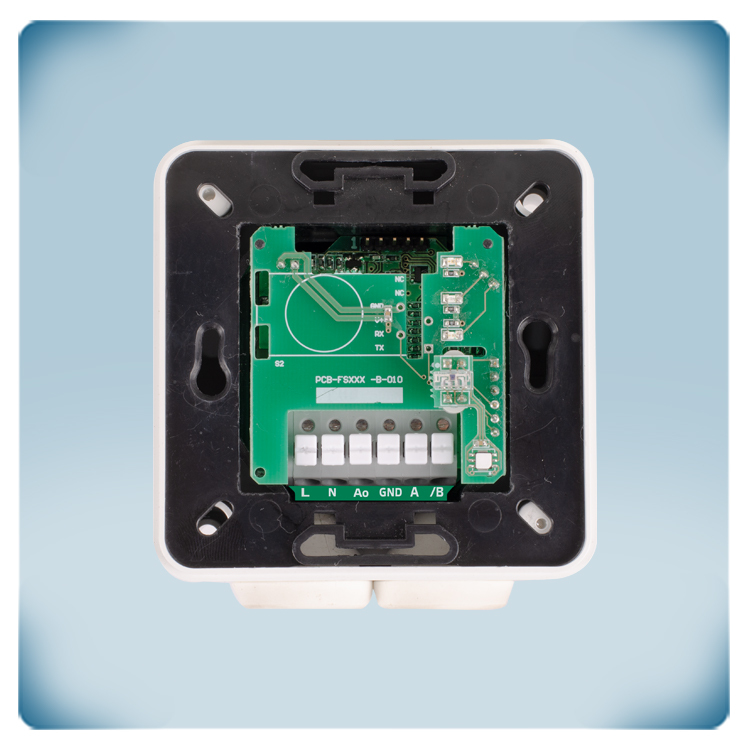

This temperature and humidity transmitter runs without an external power source. Only 230 V AC supply voltage is needed. The terminal blocks with cage clamps hasten installation and minimize wiring. They eliminate the need for routine maintenance and ensure a reliable connection for solid or stranded wires.

Surface mounting versus flush mountingFlush mounted sensor in wall
The sensor enclosure provides IP30 protection from the entry of moisture and dust. It can be integrated into a typical European wall mounting box or mounted on the wall. When the sensor is flush mounted, only the front plate will be visible on the wall.

Easy to use
There is very little configuration necessary for this sensor. It can almost directly be used once it has been installed. Temperature and relative humidity are frequently region- and season-dependent. During installation, these parameters are still set to the correct values. The other default settings will most likely be adequate for most applications. They can, however, be adjusted via the respective Modbus registers if necessary. To make it compatible with other devices, you can choose a different output type, for example: Modbus RTU; 0-10 VDC; 0-20 mA; 0-100% PWM. The brightness of the LEDs used for status indication can also be adjusted. The Modbus register map contains a comprehensive list of all programmable settings.

High quality
Europe is where this HVAC transmitter is made. In our factory, each sensor is calibrated and tested. High-quality sensor components and elements are used. This guarantees the HVAC transmitter's long-term accuracy and stability.
