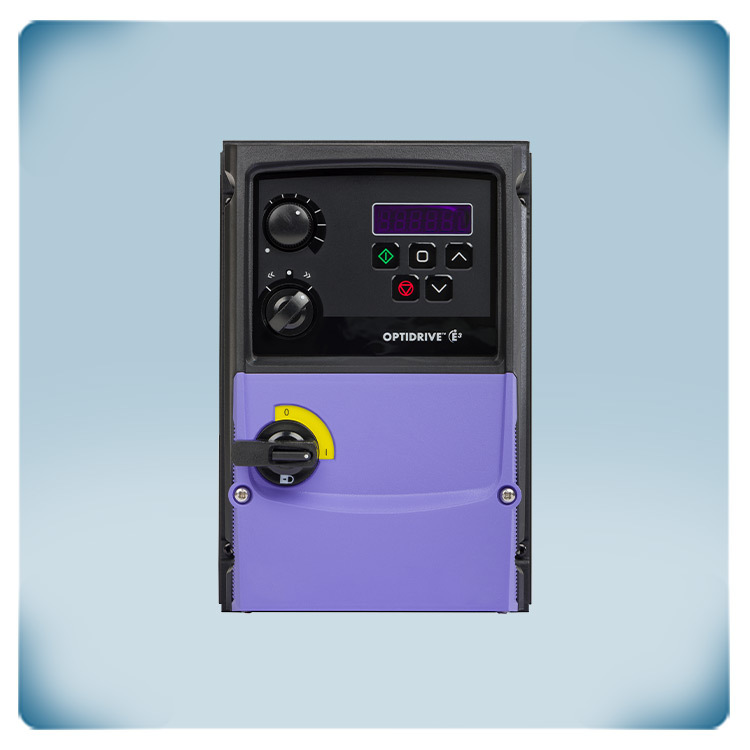

Operating knob on black-purple cover on black heat sink

Frequency inverter | integrated controls | 4,3 A | 0,75 kW | IP66

Product description

Variable frequency drive with built-in potentiometer, run-stop switch and mains disconnector. It controls three-phase 230 V motors. The maximum motor current is 4,3 A. Simply wire up the drive, turn the inbuilt potentiometer and the motor will start running. This frequency drive can control fans or pumps in HVAC applications. The enclosure is dust-tight and washdown ready. It offers an IP66 protection against ingress of dirt and water. The heatsink is corrosion resistant. This frequency inverter can control three-phase 230 V IE3, IE4, permanent magnet, brushless DC or synchronous reluctance motors. The supply voltage is single-phase 230 VAC. The integrated EMC filter is Class C1. Manufacturers code: ODE-3-120043-1F1B

Article code FISE13043E6-19
GTIN 0.540.100.300.682.5
Category Speed control for three phase 230 VAC motors - 230 VAC supply
Current stock 0 U.
Factory lead time 4 Week(s)

Additional specifications and description

Integrated motor controls
This frequency inverters has an inbuilt potentiometer to select the optimal motor speed. The motor can be disabled or enabled (forward or reverse) via the 3-position switch. During maintenance, the mains can be disconnected via the switch disconnector with padlockable OFF position.

Dust-tight design
This frequency inverter can be installed directly on processing equipment. The special ABS enclosure protects the electronics against dust and contaminants. In combination with the corrosion resistant heatsink this IP66 frequency inverter can be used for high-pressure washdown applications.

Easy to use
By selecting one of these application macros, the most important settings are pre-configured automatically. It is the ideal energy saving solution where high starting torque is not required. Typical applications are AC fans, blowers, centrifugal pumps, fume extractors and air flow controllers.

Control multiple motor types
This frequency inverter requires a single-phase 230 V power supply. It controls standard 3-phase 230 V IE2, IE3 and IE4 induction motors. On top of that, it can also control Permanent Magnet motors, Brushless DC Motors and Synchronous Reluctance Motors.

Optimal motor control
This frequency inverter is standard equipped with an EMC filter class C1. The integrated brake chopper makes it possible to connect a brake resistor to reduce the deceleration time if necessary. Sentera HVAC sensors can be connected via the analogue input or via Modbus RTU communication.
