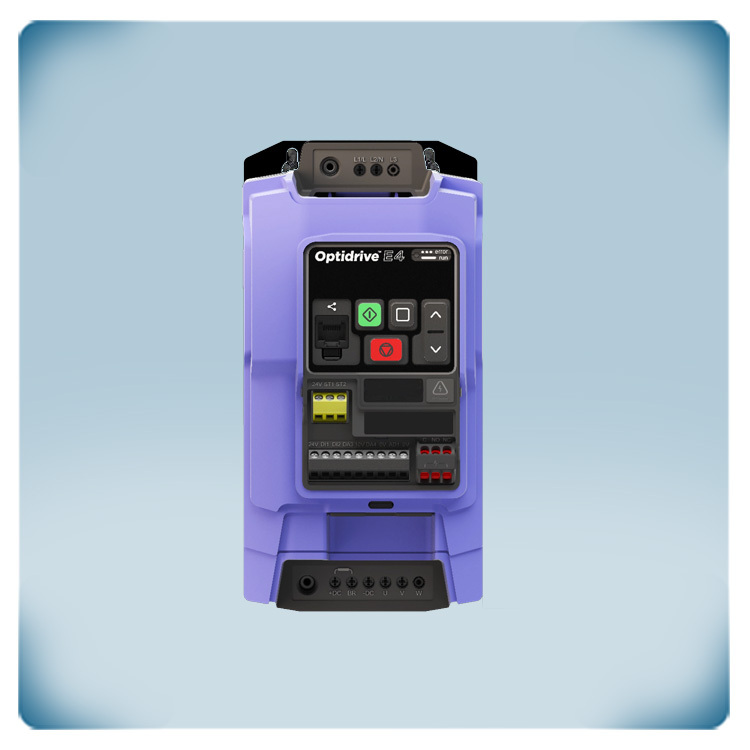

Frequency inverter 400 V | 4.1 A | 1.5 kW | IP20

Product description

Variable frequency drive suitable for HVAC fans and pumps with three-phase 400 V motors. The device application modes provide easy commissioning and stable operation.

The frequency inverter uses sensorless vector control that ensures efficient motor performance without encoder feedback. Various motor types are supported including induction, BLDC, permanent magnet, synchronous reluctance and PMAREL motors.

The drive features motor protection functions such as flow detection, low load detection and motor connection monitoring. Advanced braking methods are also supported including DC injection, dynamic braking and AC flux braking. Motor torque generation is safely disabled thanks to the integrated STO (SIL3) function.

Communication is possible via Modbus RTU, CANopen or BACnet MS/TP. The enclosure is suitable for DIN-rail mounting in an electrical cabinet and provides IP20 protection against dust ingress.

Manufacturer code: ODE-4-240041-3F42
