Differential pressure connection set Aluminum - L 2 m

Article code PSET-QF-200
GTIN 0.540.100.301.080.8
Intrastat number 39.17.23.90
Category Accessories for differential pressure transmitters and controllers
Current stock 0 U.
Factory lead time 3 Week(s)

Product description

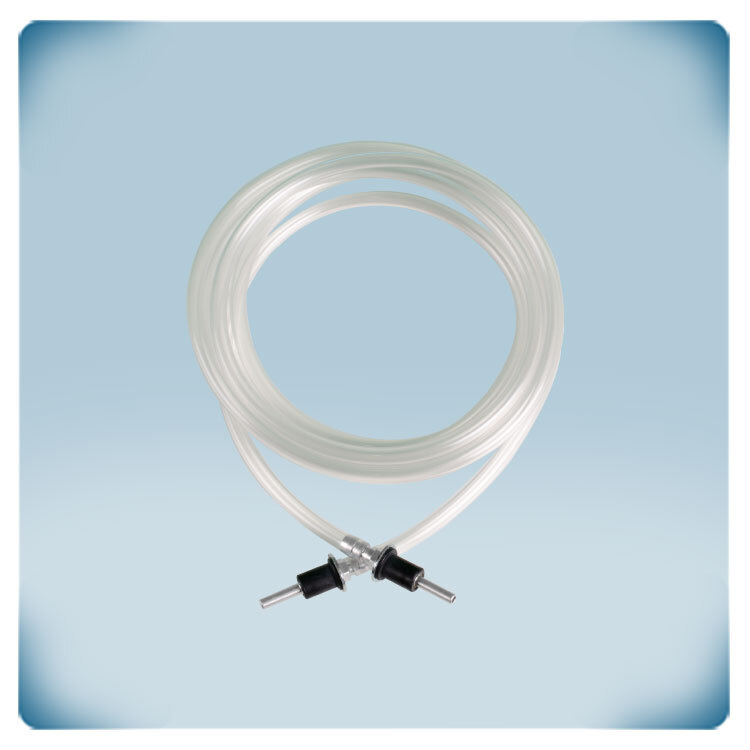

Set of nozzles and PVC tubes to connect a differential pressure sensor or controller to the ductwork. It contains 2 Aluminum nozzles and 2 flexible, transparent PVC tubes with a length of 2 m and a maximum working pressure of 10.000 Pa. This set is designed for HVAC applications and can be used in combination with all Sentera differential pressure transmitters, controllers or switches.

Documents

Additional specifications and description


Differential pressure or air volume flow
This set connects a differential pressure sensor to the ductwork. It can be used to measure or control differential pressure [Pa]. If the K-factor of the fan is known, it can also be used to measure or control air volume flow [m³/hr].
E.g. in combination with a HPSP pressure controller, the fan speed is controlled to maintain the air volume flow constant - regardless of the demand.

High-quality plastic
The nozzles are made of Aluminum. This material is corrosion resistant. They have a length of 46,6 mm and a diameter of 4 mm (connecting end). The tubes are made of transparent PVC. They have a diameter of 7 mm and a length of 2 m. The maximum working pressure is 10.000 Pa and the maximum operating temperature is 60 °C.


Remarks, reviews & ratings

08/12/2023
Las toberas de aluminio resultan una solución muy buena y hacen este set de conexión de presión diferencial extremadamente fuerte.
