Adaptor box for soil moisture sensor SWCSM-075

Article code ADPT-SWCSM
GTIN 14 5401003017777
Intrastat number 84.71.60.70
Category Soil humidity sensors
Current stock 3 U.
Factory lead time 5 Week(s)

Product description

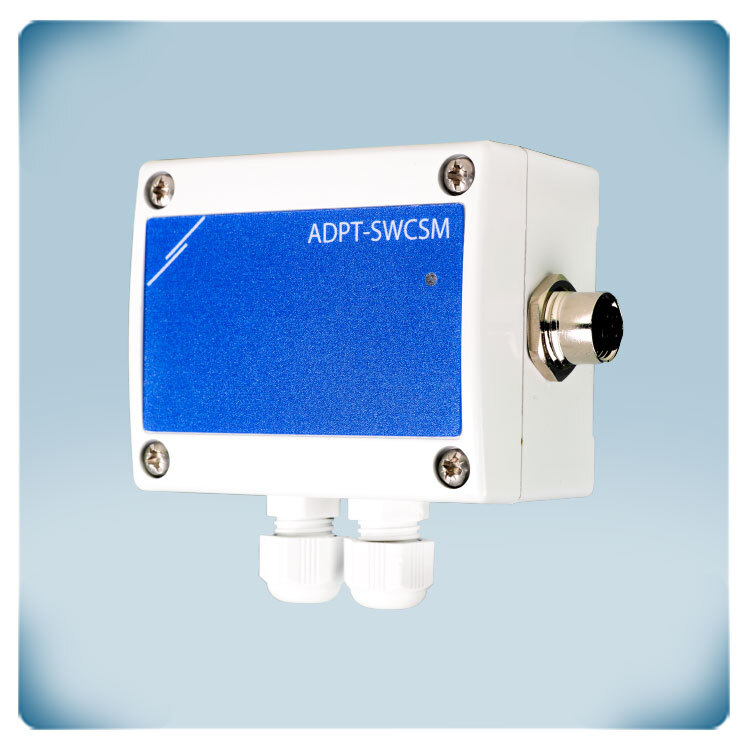

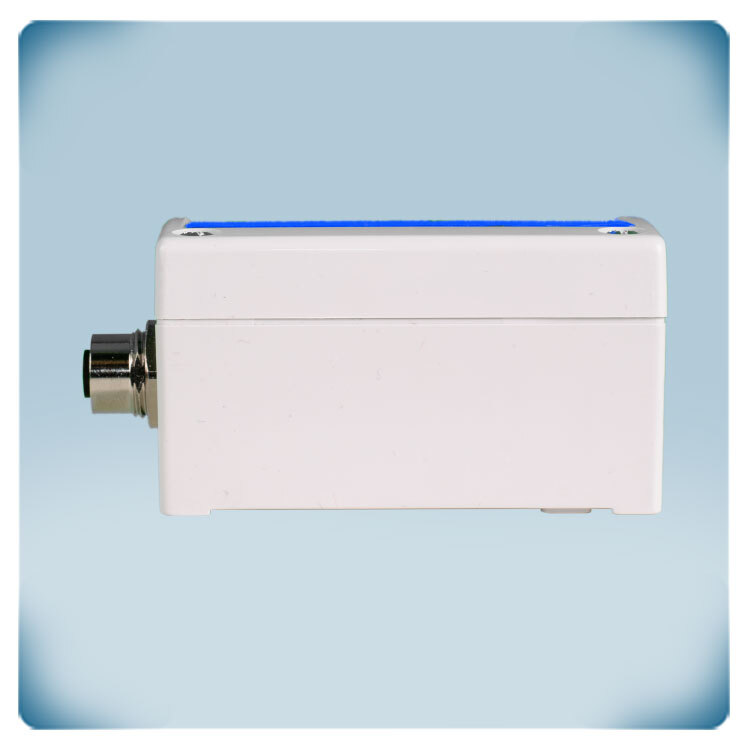

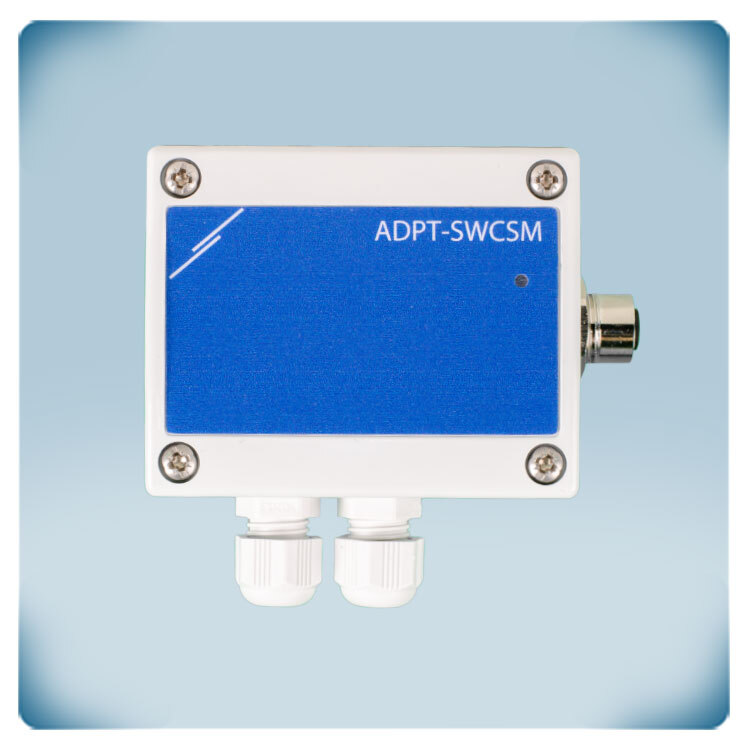

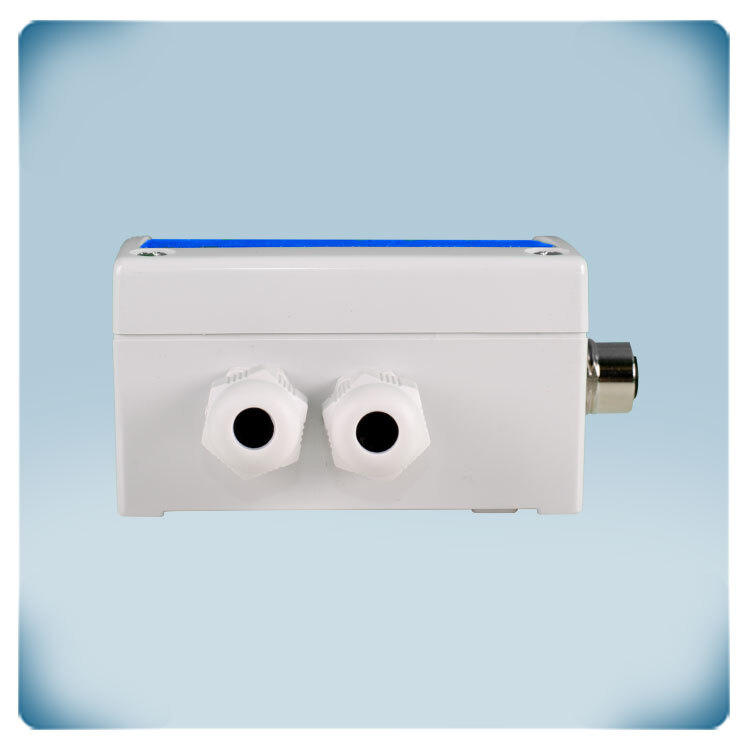

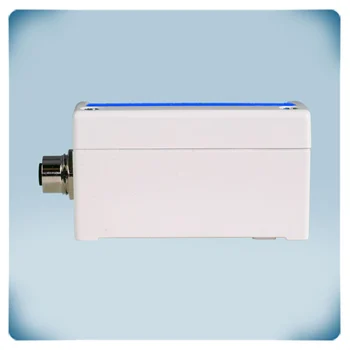

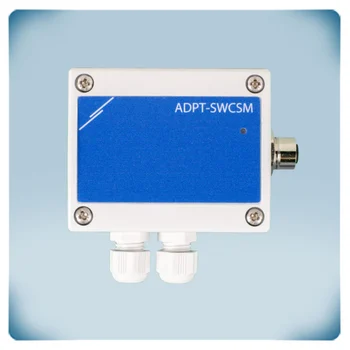

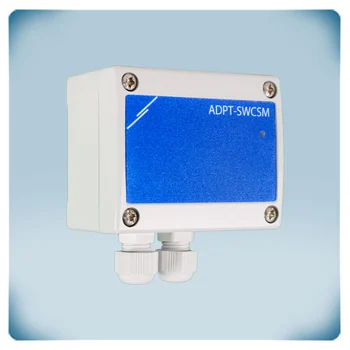

The ADPT-SWCSM is an adapter box designed to connect the SWCSM-075 soil moisture sensor to a Sentera Modbus network.

It provides a 24 VDC supply voltage via Power over Modbus (PoM). It includes an M12 connector socket for the SWCSM-075 soil moisture sensor.

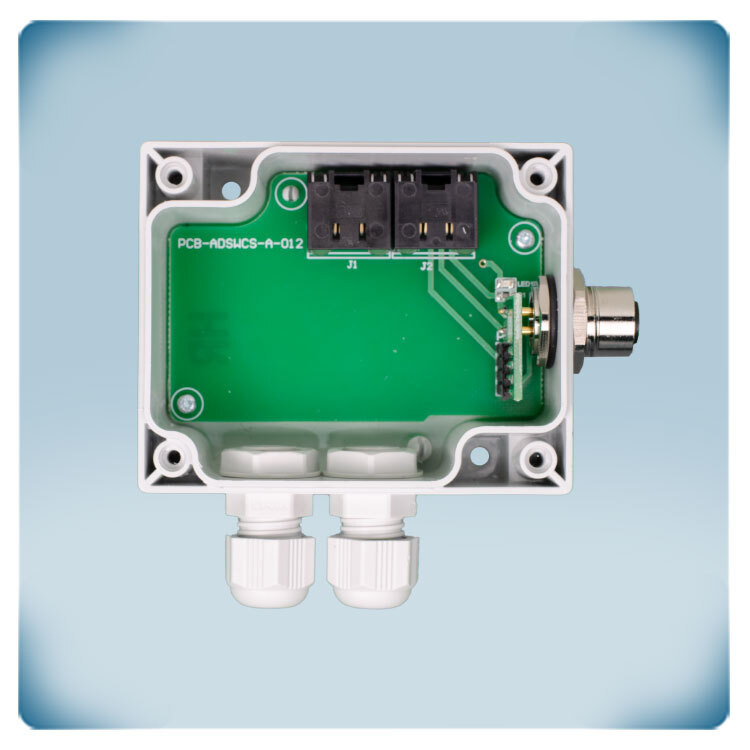

It has two RJ45 sockets for connecting to the Sentera network, allowing for the daisy-chaining of multiple sensors.

It's designed for easy installation.
A green LED indicator shows the power ON status.

It boasts an IP67 protection standard for the connector and an IP65 protection standard for the enclosure.
It can operate in ambient conditions ranging from -30 to 70 °C and 0-100% relative humidity (non-condensing).

This adapter box ensures reliable and easy integration of soil moisture sensors into a Modbus network.

Additional specifications and description



What is the Importance of Soil Moisture and Water Balance for Plant Health and Agricultural Sustainability?
For the growth of top-notch plants, a healthy soil moisture and water balance must be maintained. Plants in dry soil stunt and wilt due to nutrient deficiencies. Plants grow less resistant to dry conditions later in their life cycles and are more susceptible to disease pressure in wet soil. The plant will become suffocated and die from excessive watering. Agrichemicals are less likely to leach when irrigation is done effectively.  Measuring moisture in the soil

How Does the Adapter Box Work and How Does It Connect Sensors?
This adapter box is designed for the SWCSM-075 soil moisture sensor. The two RJ45 sockets make it possible to connect multiple sensors while maintaining the line topology of the Modbus RTU network. The sensors can be daisy-chained. Both 24 V DC power supply and Modbus RTU communication can be connected via a UTP cable with RJ45 connector. The SWCSM-075 moisture sensor has an integrated cable with M12 connector that can be connected to this adaptor box.

What are the Features of the Product's Enclosure and What Kind of Protection Does It Provide?
The enclosure is made of high-quality r-ABS VO (UL94) plastic. This material is very tough and offers good protection against impacts. It offers an IP65 protection against ingress of dust and water.
