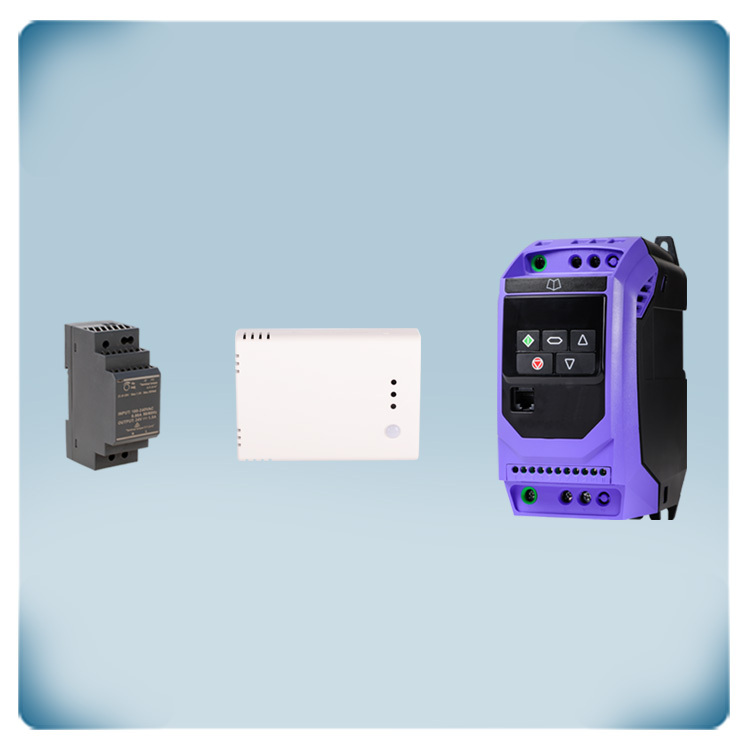

Induction motor 7 A | air quality control

Easy-to-use VFD for single-phase motors. The motor speed can be set via the intuitive keypad or via the inputs. Configuration is simplified via 14 basic parameters and application macro functions. This frequency drive can control fans or pumps in HVAC applications. This frequency inverter can control single-phase permanent split capacitor motors and shaded pole induction motors. The supply voltage is 230 VAC. The integrated EMC filter is Class C1. The maximum motor current is 7.0 A. The enclosure can be DIN rail mounted in an electrical cabinet. It offers an IP20 protection against ingress of dust. Manufacturers code: ODE-3-120070-1F12-01

Temperature, relative humidity, air quality (TVOC), and ambient light are all measured by this indoor air quality sensor. They are typically used in commercial and residential HVAC applications. The supply voltage is 24 volts direct current. The measured values are communicated via three analogue outputs and Modbus RTU. The output type is set to 0-10 V by default but various output types are available. The TVOC sensor element can be replaced if necessary. The ambient light sensor can be used in many applications to control the ventilation system based on the occupancy of the room. Settings can be adjusted via Modbus RTU. Even the light intensity of the LEDs used for status indication can be adjusted.

DIN rail mounted 24 Volt power supply module is an electrical device used to convert input voltage (typically AC mains voltage or a different DC voltage) into a stable 24 VDC (volts of direct current) output voltage and is designed to be mounted on DIN rails in electrical cabinets. This power supply delivers a 24 VDC, making it compatible with a wide range of electronic devices and systems. The device accepts an input voltage of 85–264 VAC / 50–60 Hz and the maximum load of 36 W can be connected to it. Use of the terminal block is possible for connecting the load. The supply module is protected by an IP20 enclosure and the safety of your electrical installation is increased by the overload and overvoltage protection. Some of the key sectors where this switching power supply can be used are building automation (e.g. HVAC controlling), industrial automation (e.g. providing stable power to sensors, controllers, etc.), renewable energy (e.g. solar power systems) or as laboratory equipment. Switching power supplies are comparing to the linear power supplies more efficient, lighter, and more compact (due to their transformer-free design). Because of their high efficiency, they produce less heat and contribute to greater energy savings.
