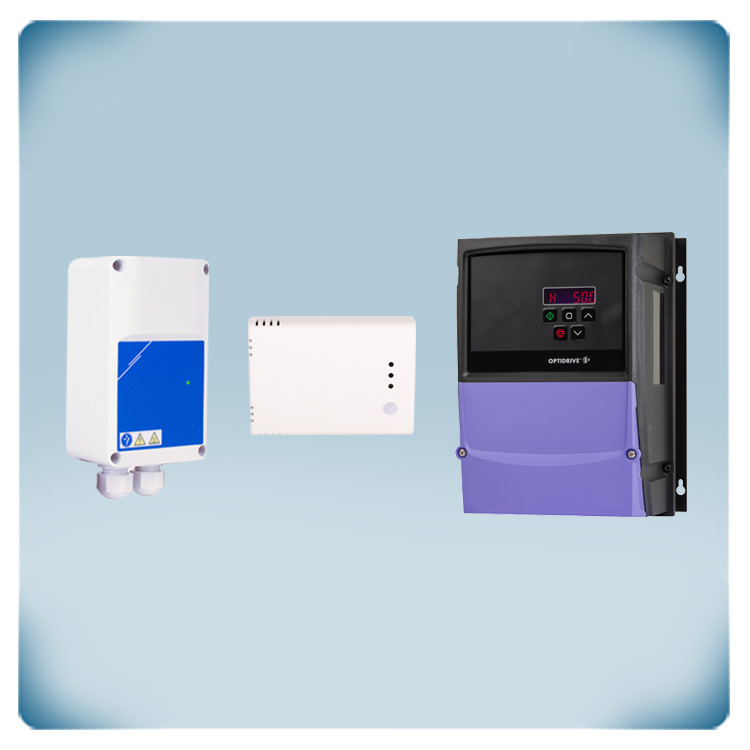

Induction motor 4,3 A | air quality control | IP65

Temperature, relative humidity, air quality (TVOC), and ambient light are all measured by this indoor air quality sensor. They are typically used in commercial and residential HVAC applications. The supply voltage is 24 volts direct current. The measured values are communicated via three analogue outputs and Modbus RTU. The output type is set to 0-10 V by default but various output types are available. The TVOC sensor element can be replaced if necessary. The ambient light sensor can be used in many applications to control the ventilation system based on the occupancy of the room. Settings can be adjusted via Modbus RTU. Even the light intensity of the LEDs used for status indication can be adjusted.

A 24 Volt supply module is an electronic device that converts an input voltage of 230 VAC to a 24 VDC output voltage. It is frequently used in a variety of applications, including industrial automation, medical equipment, and building automation. This switching power supply can alter an 85-264 VAC input voltage into a 24 VDC output voltage. It can supply loads up to 40 Watts. Your electrical installation is more secure because of the overload and overvoltage protection. The load can be connected using either an RJ45 connector or a screw terminal block. Due to its firm enclosure, which offers IP65 protection against the ingress of water and dirt, is the installation of this power supply in harsh environments possible. In comparison to linear power supplies, switching power supplies are more efficient, lighter, and more compact (due to their transformer-free design). Because of their high efficiency, they produce less heat and contribute to greater energy savings.

Adjustable speed drive (ASD) to regulate the speed of single-phase motors. It is designed to control fans or pumps in HVAC applications. The motor speed can be set via the intuitive keypad or via the inputs. Configuration is simplified via 14 basic parameters and application macro functions. This ASD can control permanent split capacitor motors or shaded pole induction motors. The integrated EMC filter is Class C1. The maximum motor current is 4.3 A. The enclosure is dust-tight and washdown ready. It offers an IP66 protection against ingress of dirt and water. Its heatsink is corrosion resistant. The supply voltage is 230 VAC. The integrated EMC filter is Class C1. Manufacturers code: ODE-3-120043-1F1A-01
