Induction motor 400 V | remote control | 46 A | 22 kW | IP66

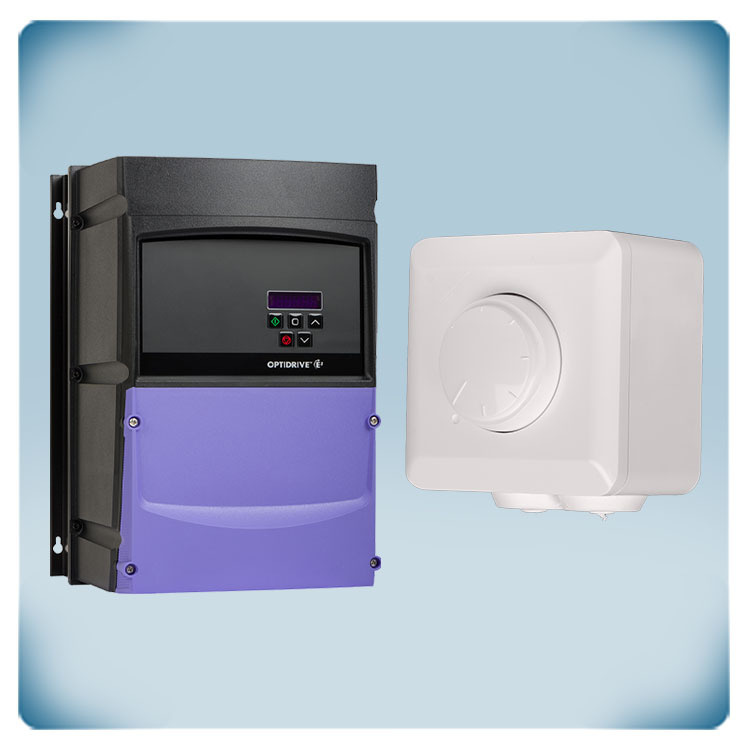

Variable frequency converter in dust-tight and washdown ready enclosure. It controls 400 Volt motors to run fans and pumps in HVAC applications. This VFD is particularly simple to use. For most applications it is not necessary to change the default settings. The required supply voltage is three-phase 400 Volt. Various types of 3ph 400 Volt motors can be controlled: IE3 or IE4 induction motors, permanent magnet motors, brushless DC or synchronous reluctance motors. One or multiple motors with a (combined) maximum current of 46 A can be controlled by this drive. Motor speed can be set via the intuitive keypad or via the inputs. Configuration is simplified via 14 basic parameters and application macro functions. The enclosure can be DIN rail mounted in an electrical cabinet. It offers an IP66 protection against ingress of water and dust. The integrated EMC filter is Class C1. Manufacturers code: ODE-3-440460-3F4A

The SDP-M010-BT is a potentiometer for precise ventilation system control. It has Modbus RTU integration, allowing it to be connected to a Building Management System (BMS) or the SenteraWeb cloud. Here are its key features: Versatile Control: Controls a range of devices like EC fans and frequency inverters. Manual & Remote Control: A rotary knob provides continuous manual control. Parameters like min/max levels and inverse control can be adjusted remotely via Modbus. No OFF-Position: It lacks an OFF-position to prevent accidental shutdowns. Durable Design: The splash-proof enclosure supports both inset mounting (IP44) and surface mounting (IP54).
