Induction motor 10,5 A | air quality control | air ducts

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!

Article code F15DSLSE0001

Current stock 0 U.

Factory lead time 4 Week(s)

Solution description

TVOC based fan speed control for AC fans with single-phase motor. The maximum motor current is 10,5 A. AC fan speed is controlled automatically to keep air quality (TVOC), temperature and relative humidity in range. The ranges can be adjusted via Modbus RTU communication. The duct sensor controls the frequency inverter via a 0-10V output. We advise to keep the cable length limited. The temperature of motors equipped with a temperature sensor (TK or PTC) can be monitored. In case of overheating, the motor is disabled to prevent damage. The frequency inverter enclosure is dust tight and ready for washdown duty.

Documents

Schematic overview

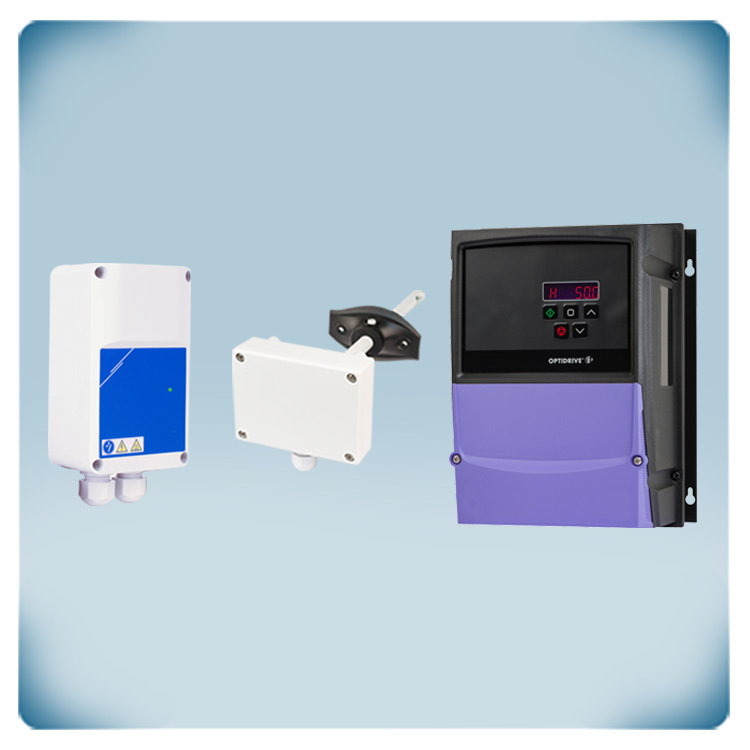

Components of this solution

Article code

Quantity

Description

DSVCF-R

1 U.

Duct air quality sensor. It measures temperature, relative humidity and TVOC in air ducts. The supply voltage is 24 VDC. The measured values are transmitted via three analogue outputs and via Modbus RTU communication. The output type can be selected. The TVOC sensor element is replaceable. All settings can be adjusted via Modbus RTU.

SEPS8-24-40

1 U.

A 24 Volt supply module is an electronic device that converts an input voltage of 230 VAC to a 24 VDC output voltage. It is frequently used in a variety of applications, including industrial automation, medical equipment, and building automation. This switching power supply can alter an 85-264 VAC input voltage into a 24 VDC output voltage. It can supply loads up to 40 Watts. Your electrical installation is more secure because of the overload and overvoltage protection. The load can be connected using either an RJ45 connector or a screw terminal block. Due to its firm enclosure, which offers IP65 protection against the ingress of water and dirt, is the installation of this power supply in harsh environments possible. In comparison to linear power supplies, switching power supplies are more efficient, lighter, and more compact (due to their transformer-free design). Because of their high efficiency, they produce less heat and contribute to greater energy savings.

FI-E11105E6-19

1 U.

AC drive for single-phase motor control. It is designed to regulate the speed of fans or pumps in HVAC applications. The motor speed can be set via the intuitive keypad or via the inputs. Configuration is simplified via 14 basic parameters and application macro functions. This frequency converter can control permanent split capacitor motors or shaded pole induction motors. The integrated EMC filter is Class C1. The maximum motor current is 10.5 A. The supply voltage is 230 V AC. The enclosure is dust-tight and washdown ready. It offers an IP66 protection against ingress of dirt and water. Its heatsink is corrosion resistant. The integrated EMC filter is Class C1. Manufacturers code: ODE-3-220105-1F4A-01
