EC motor | temperature and humidity control

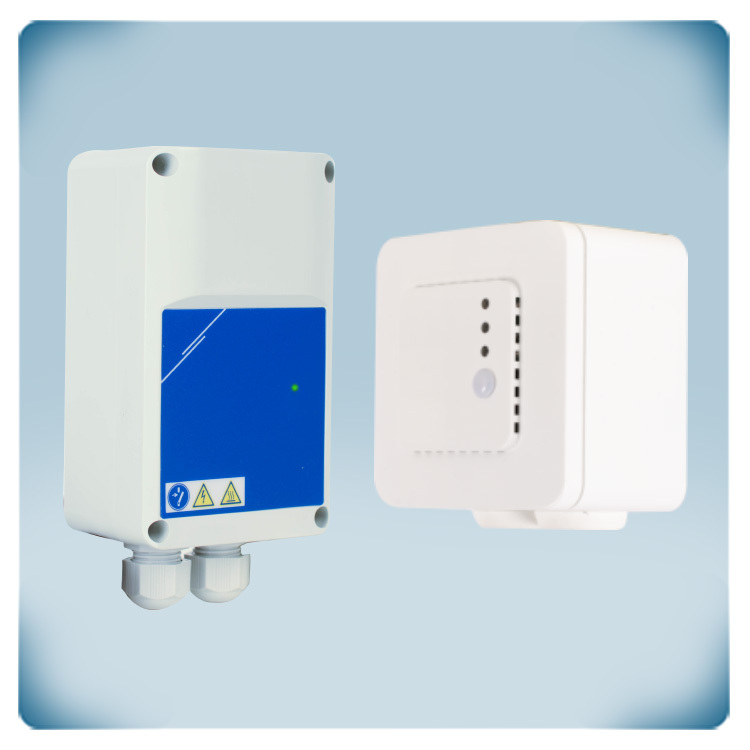

A room transmitter can measure ambient light levels, relative humidity, and temperature. The distinctive enclosure accommodates flush or surface mounting. The supply voltage is 24 V DC. The sensor algorithm controls the single analogue output based on the measured values. This one output can be used to directly control an EC fan, an AC fan speed controller, or a damper actuator. There is a choice in output format. All measurements and the output value are accessible via Modbus RTU. The ambient light sensor can be used in a variety of applications to control the ventilation system based on the amount of people present in the room. Adjustments are possible for every setting with Modbus RTU. The light levels of the LEDs used for status indication are also programmable. This HVAC sensor is frequently used to regulate humidity and temperature in data centers, museums, wine cellars, etc.

A 24 Volt supply module is an electronic device that converts an input voltage of 230 VAC to a 24 VDC output voltage. It is frequently used in a variety of applications, including industrial automation, medical equipment, and building automation. This switching power supply can alter an 85-264 VAC input voltage into a 24 VDC output voltage. It can supply loads up to 40 Watts. Your electrical installation is more secure because of the overload and overvoltage protection. The load can be connected using either an RJ45 connector or a screw terminal block. Due to its firm enclosure, which offers IP65 protection against the ingress of water and dirt, is the installation of this power supply in harsh environments possible. In comparison to linear power supplies, switching power supplies are more efficient, lighter, and more compact (due to their transformer-free design). Because of their high efficiency, they produce less heat and contribute to greater energy savings.
