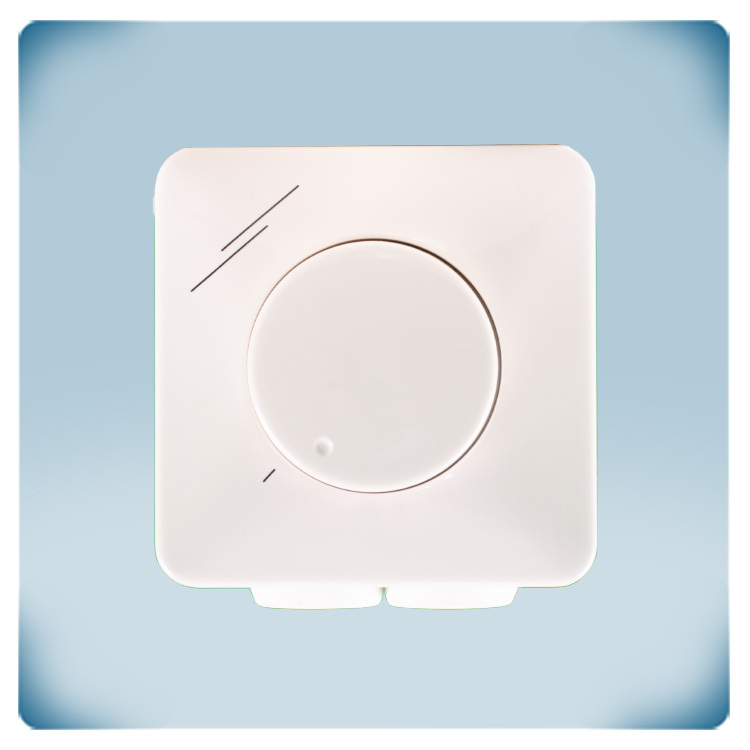

Light gray plastic enclosure with rotary knob

EC motor 230 V | remote fan speed control

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!

Article code MT5------002

Current stock 11 U.

Factory lead time 4 Week(s)

Solution description

Variable speed control for EC fans. EC fan speed can be manually adjusted via the potentiometer. In off position, the motor is disabled via the dry contact output. It controls fan speed from low to high. The supply voltage is 230 VAC. The EC motor is controlled via a 1-10 V analogue control signal.

Documents

Schematic overview

Components of this solution

Article code

Quantity

Description

MTV-1-010-CP

1 U.

The MTV-1-010-CP is a potentiometer for manual control of EC fans, AC fan speed controllers, and damper actuators. It operates on a 230 VAC power supply. Variable Control: The rotary knob provides continuous control. Dry Contact: It has a dry contact for remote on/off switching of external equipment. Selectable Output: A jumper allows you to choose between 1-10 VDC, 2-20 mA, and 10-100% PWM output types. Customizable Range: Two internal trimmers let you adjust the minimum (10-70%) and maximum (30-100%) output values. Durable Design: The splash-proof enclosure supports both inset mounting (IP44) and surface mounting (IP54). Integrated Switch: A built-in on/off switch uses the dry contact for easy control.
