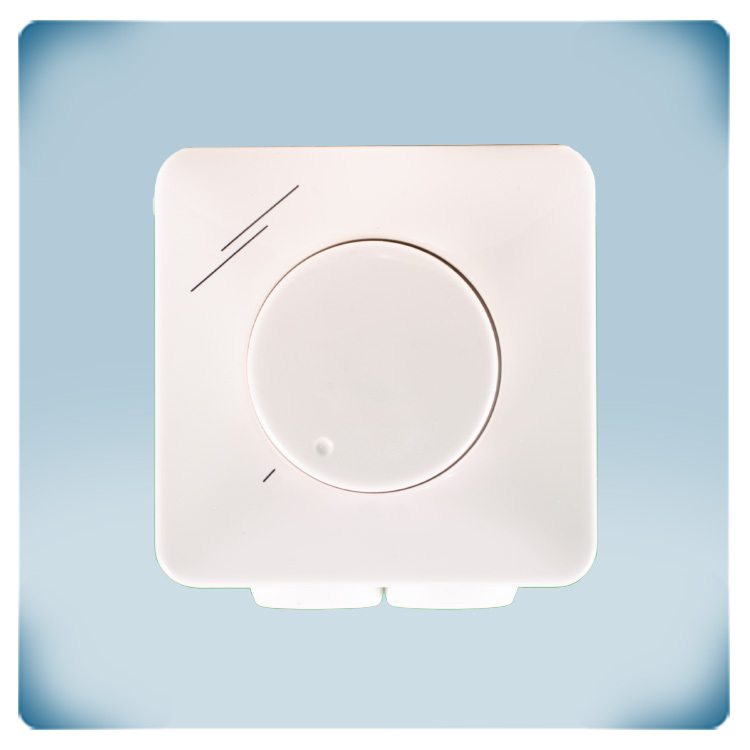

White plastic enclosure with rotary knob

EC motor | 10 Kohm potentiometer | variable fan speed control

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!

Article code MT4------001

Current stock 160 U.

Factory lead time 5 Day(s)

Next arrival 13/06/2025 - 720 U.

Solution description

The EC fan speed can be manually adjusted via the 10 Kohm potentiometer. The potentiometer controls the EC fan speed from low to high. There is no OFF position. The potentiometer has a resistance value of 0 - 10 Kohm. If the supply voltage is 10 VDC, it will generate a control signal of 0-10 VDC. Minimum and maximum speed can be adjusted via trimmers on the potentiometer.

Documents

Schematic overview

Components of this solution

Article code

Quantity

Description

MTP-X10K-NA

1 U.

With this 10 KOhm potentiometer you can directly control EC fans. If you want to control the speed of an AC motor, connect this potentiometer to an Electronic Fan Speed Controller (EVS, MVS) or frequency converter (FI-E). This potentiometer has an adjustable resistance of 0-10 kΩ. The device does not require a specific power supply, but the input signal must be between 0 and 12 VDC. Most EC fans, electronic speed controllers or frequency converters have an output with the required voltage. Depending on the position of the dial, the feedback voltage varies, regulating the Fan Speed. The dry contact output can be used to remotely give a start-stop command to the fan or other equipment. The splash-proof housing allows recessed installation (IP44) or surface mounting (IP54).
