EC motor | 0-10 V potentiometer | variable fan speed control

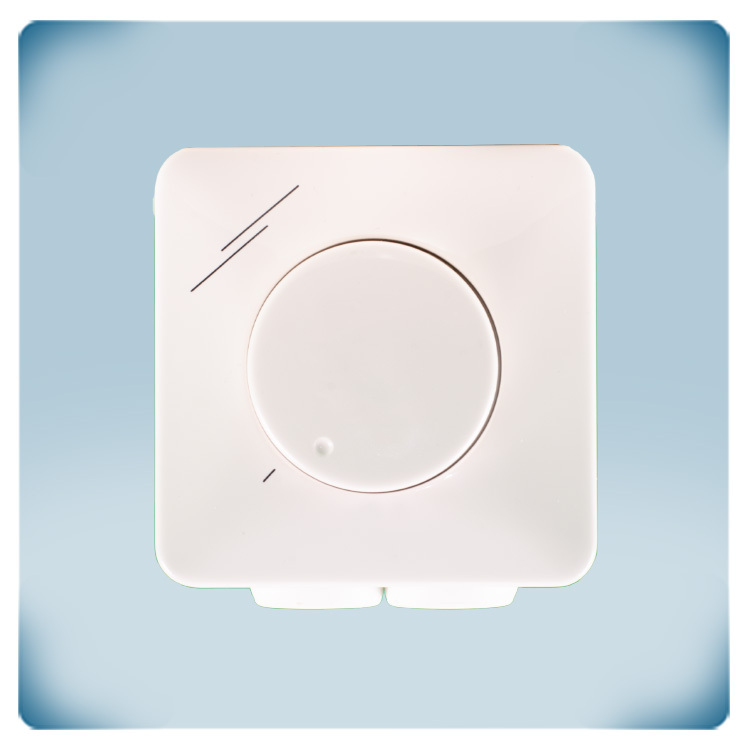

Introducing the MTV-1-010-CP Potentiometer – a straightforward yet effective solution for manual control of EC fans, AC fan speed controllers, or damper actuators. With a power supply of 230 VAC, this potentiometer offers a continuous variable output signal, easily adjusted via the rotary knob for seamless ventilation control. The MTV-1-010-CP simplifies your system's operation with a dry contact for remote ON-OFF switching, adding practicality to your ventilation setup. Its jumper feature provides selectable output options, allowing you to choose between 1-10 VDC, 2-20 mA, or 10-100% PWM output types based on your specific requirements. Fine-tune your ventilation control effortlessly. Two internal trimmers enable you to adjust the minimum (Vmin) and maximum (Vmax) output values within the ranges of 10-70% and 30-100%, respectively. This ensures precise control over your ventilation system without unnecessary complexity. The MTV-1-010-CP is designed for durability, featuring a splash-proof enclosure suitable for both inset (IP44) and surface (IP54) mounting. This ensures reliability in diverse environmental conditions. Enhancing its practicality, the potentiometer includes a built-in switch with an on/off function, using the dry contact at the leftmost position. This functionality makes it possible to swich on/off external equipment.
