Schematic overview
AC motor 3,5 A | 3-step fan speed control
Solution description

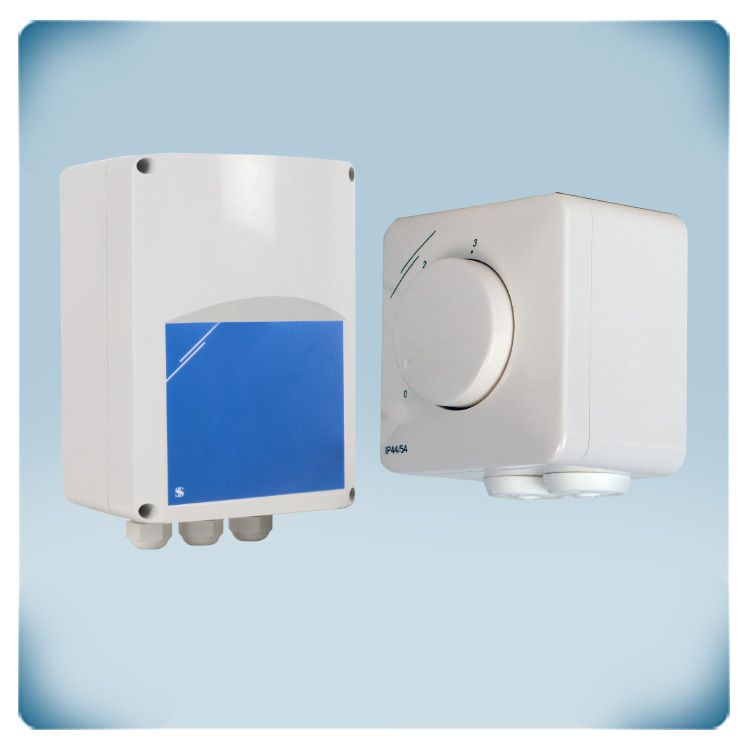

Remote 3-speed control for AC fans with single-phase motor. The maximum motor current is 3,5 A. Typically, this solution is used to control AC fans or pumps in HVAC applications. The motor speed can be selected via the rotary switch in 3 steps. At zero position, the motor stops.
