AC motor 2,5 A | remote fan speed control | TK monitoring

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!
Article code FS-R-000002
Current stock 3 U.
Factory lead time 4 Week(s)

Solution description

Remote fan speed control for AC fans with single-phase motor, equipped with thermal contacts. The maximum motor current is 2,5 A. The supply voltage is in the range between 115 and 230 VAC. AC fan speed can be adjusted manually in steps via the external potentiometer. Fan speed can be regulated from high to low or from low to high. All settings can be adjusted via Modbus RTU. The TK monitoring function disables the motor in case motor overheating is detected via the thermal contacts.

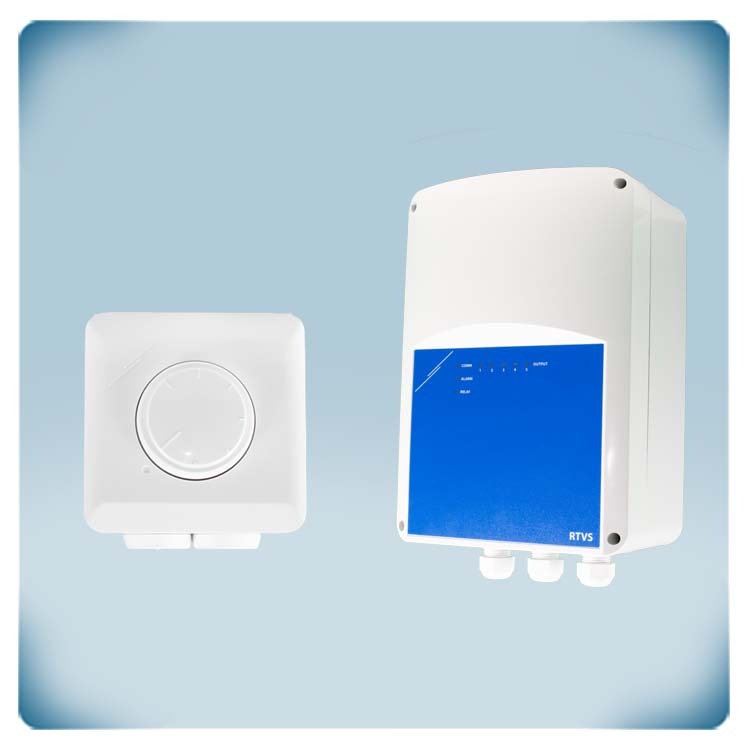

Components of this solution

Article code
Quantity
Description

RTVS8-25L22

1 U.

Transformer fan speed controller with Modbus RTU communication. Designed for manual or demand-based fan speed regulation. Supply voltage of 115 - 230 VAC. Controls single-phase motors with a maximum combined motor current of 2.5 A. Fan speed regulated by gradually varying motor voltage using autotransformer technology, ensuring perfectly sinusoidal motor voltage for quiet operation. Special impregnated coating reduces electrical noise from the autotransformer. Control options: potentiometer (SPV series), Modbus I/O module, BMS system, or based on environmental parameters like temperature, relative humidity, CO2, and air quality (TVOC). Surface mountable with IP54 protection.

SPV-8-010-PM

1 U.

The SPV-8-010-PM is a potentiometer for ventilation systems with Modbus RTU communication for seamless integration. It's designed to work with a wide range of devices, including EC fans and damper actuators. Here are its key features: Universal Power Supply: Operates on a supply voltage of 85-264 VAC, 50-60 Hz, making it suitable for global use. Variable & Remote Control: The rotary knob provides manual control with an OFF-position. All parameters, including min/max settings, inverse operation, and output type (0-10 V, 0-20 mA, 0-100% PWM), can be adjusted remotely via Modbus. Remote Connectivity: It can be integrated into a Building Management System (BMS) or accessed via the SenteraWeb cloud for remote management.
