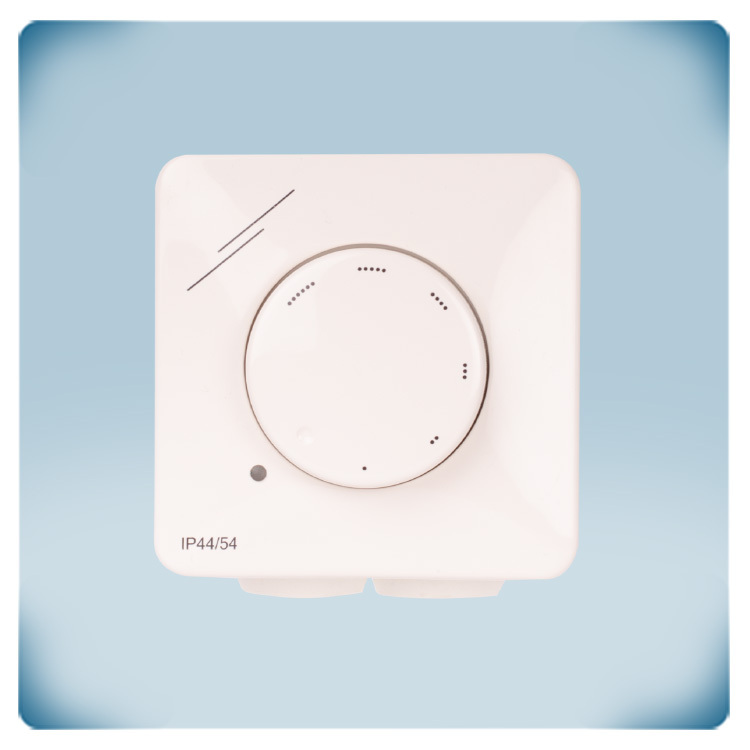

White plastic enclosure with rotary knob and LED

AC motor 1,5 A | variable speed control | high to low speed

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!

Article code LT2------001

Current stock 12 U.

Factory lead time 4 Week(s)

Solution description

Controller for AC fans with single-phase voltage controllable motor. The maximum motor current is 1,5 A. Typically, it controls AC fan speed in HVAC applications. The fan speed can be adjusted via the potentiometer. This potentiometer has an OFF position. It controls fan speed from high to low speed. The supply voltage is 230 VAC. The orange LED run indicator lights up when the motor is enabled. The fan speed is regulated by varying the motor voltage via phase angle control - Triac technology.

Documents

Schematic overview

Components of this solution

Article code

Quantity

Description

LTX-0-15-AT

1 U.

This is a variable speed controller with run indicator for single-phase motors. The maximum motor current is 1,5 A. It regulates AC fan speed from high to low. The fan speed can be set via the potentiometer. This potentiometer has an OFF-position (counter clockwise). The minimum speed can be adjusted via an internal trimmer. The enclosure allows inset mounting (IP44) or surface mounting (IP54). The orange operating LED indicator is integrated in the enclosure. The supply voltage is 230 VAC. Fan speed is regulated by reducing the motor voltage via phase angle control - TRIAC technology.
