AC motor 1,5 A | Remote fan speed control | display

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!
Article code EV1RD0---001
Current stock 8 U.
Factory lead time 5 Day(s)

Solution description

Remote control for AC fans with single-phase motor. The combined maximum motor current is 1,5 A. The motor speed can be adjusted via the digital potentiometer with display and key-button interface. Fan speed can be adjusted continuous variable or in 2-10 equal steps. The display shows the fan speed step (number) or the fan speed in percentage. It is advisable to keep the distance between potentiometer and fan speed controller limited.

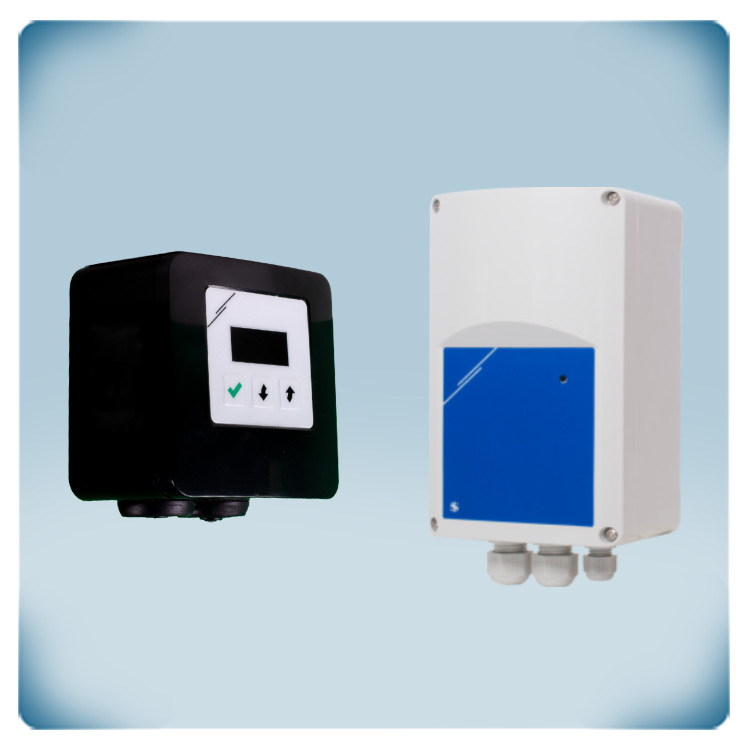

Components of this solution

Article code
Quantity
Description

EVS-1-15-DM

1 U.

The EVS-1-15-DM is an electronic speed controller for automatic speed control of single-phase voltage-controllable motors (230 VAC / 50—60 Hz). Equipped with Modbus RTU communication, this unit offers remote control options, adjustable off level, and min. and max. output voltage settings. The maximum current is 1.5 A and the supply voltage is 230 VAC. The integrated ON-OFF switch and digital input enable versatile motor control. Adjustments are possible via internal trimmers and Modbus RTU.

RDCV9-AD-BK

1 U.

The RDCV EC Fan Speed Controller is a digital potentiometer and HVAC controller that offers precision in ventilation management with advanced features and a modern design. User-Friendly Control: Its intuitive 3-button interface allows for easy fine-tuning of your system in manual mode. Versatile Analog Output: This controller can operate EC fans, AC fan speed controllers, frequency inverters, or damper actuators. The output can be continuously variable or divided into 2-10 equal steps with adjustable minimum/maximum values. Smart Automatic Mode: When a Sentera HVAC sensor is connected, it switches to automatic mode, enabling the analog output to dynamically respond to ambient temperature, humidity, CO2, air quality (TVOC), or differential pressure. Setpoints and parameters can be easily modified via the 3-button interface or Modbus RTU communication. Power and Installation Flexibility: It: operates within a 110 - 230 VAC supply voltage range. Its sleek anthracite enclosure offers both surface and flush mounting options. The RDCV is an ideal solution for modern ventilation needs, combining a user-friendly interface, smart automatic mode, and flexible installation options.
