AC motor 1,5 A | manual 5-step fan speed control

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!

Article code S19------001

Current stock 75 U.

Factory lead time 5 Day(s)

Solution description

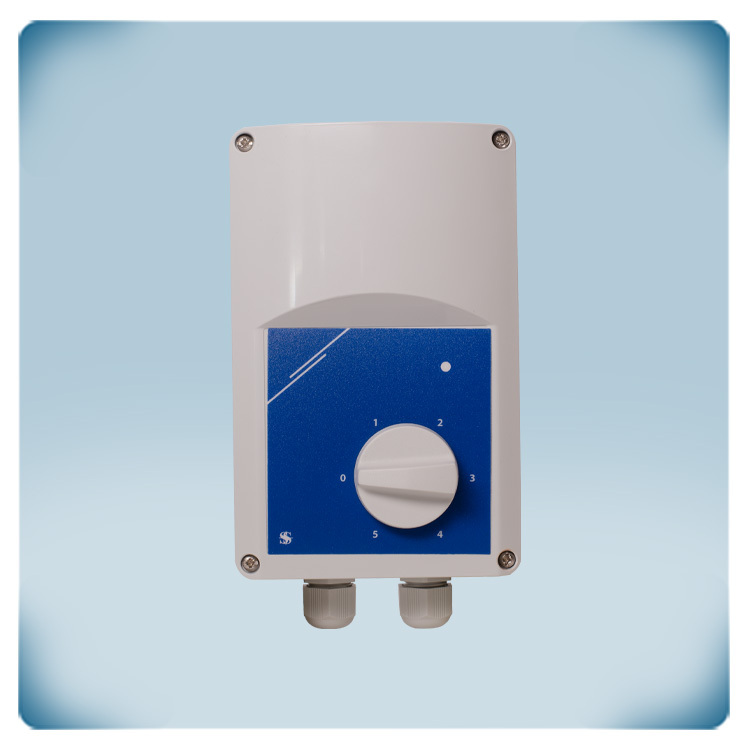

Manual 5 speed control for single-phase voltage controllable motors. The maximum motor current is 1,5 A. Typically, it regulates fan speed in HVAC applications. The fan speed can be selected via the 5-step rotary switch. In OFF position (zero), the motor is disabled. The autotransformer technology generates a motor voltage with a perfect sinusoidal shape. This guarantees quiet motor operation.

Documents

Schematic overview

Components of this solution

Article code

Quantity

Description

STR-1-15L22

1 U.

Transformer fan speed controller for single-phase motors. The (combined) maximum current is 1,5 Amps. AC fan speed is regulated from low to high in 5 steps and can be selected via the rotary switch. This rotary switch also has an OFF position. The motor speed is regulated in 5 steps by varying the motor voltage. The output voltage with perfect sinusoidal shape, guarantees quiet motor operation. The enclosure offers an IP54 protection against ingress of dirt, dust and moisture. It can be wall mounted in indoor environments. This 5-step speed controller is often used to control kitchen hood exhaust fans, ceiling fans, extraction fans, etc.
