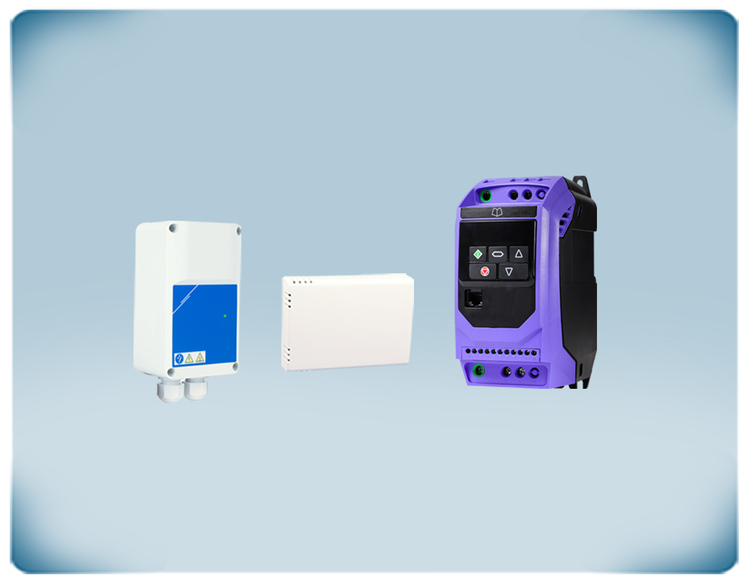

3 phase 230 V motor 2,3 A | air quality control

Easy-to-use frequency drive to control fans or centrifugal pumps with three-phase 230 Volt motors in HVAC applications. The frequency drive requires a supply voltage of single-phase 230 Volt while it controls three-phase 230 Volt motors. This drive can control motors with a maximum (combined) current of 2.3 A. This frequency inverter can control three-phase 230 Volt IE3, IE4, permanent magnet, brushless DC or synchronous reluctance motors. The motor speed can be set via the intuitive keypad or via the inputs. It is possible to select a pre-defined motor speed by activating a digital input. Another option is to use a 0-10 Volt signal to define the motor speed. Configuration of this all is simplified via 14 basic parameters and application macro functions. The enclosure can be DIN rail mounted in an electrical cabinet. It offers an IP20 protection against ingress of dust. The integrated EMC filter is Class C1. Manufacturers code: ODE-3-120023-1F12

Temperature, relative humidity, air quality (TVOC), and ambient light are all measured by this indoor air quality sensor. They are typically used in commercial and residential HVAC applications. The supply voltage is 24 volts direct current. The measured values are communicated via three analogue outputs and Modbus RTU. The output type is set to 0-10 V by default but various output types are available. The TVOC sensor element can be replaced if necessary. The ambient light sensor can be used in many applications to control the ventilation system based on the occupancy of the room. Settings can be adjusted via Modbus RTU. Even the light intensity of the LEDs used for status indication can be adjusted.

A 24 Volt supply module is an electronic device that converts an input voltage of 230 VAC to a 24 VDC output voltage. It is frequently used in a variety of applications, including industrial automation, medical equipment, and building automation. This switching power supply can alter an 85-264 VAC input voltage into a 24 VDC output voltage. It can supply loads up to 40 Watts. Your electrical installation is more secure because of the overload and overvoltage protection. The load can be connected using either an RJ45 connector or a screw terminal block. Due to its firm enclosure, which offers IP65 protection against the ingress of water and dirt, is the installation of this power supply in harsh environments possible. In comparison to linear power supplies, switching power supplies are more efficient, lighter, and more compact (due to their transformer-free design). Because of their high efficiency, they produce less heat and contribute to greater energy savings.
