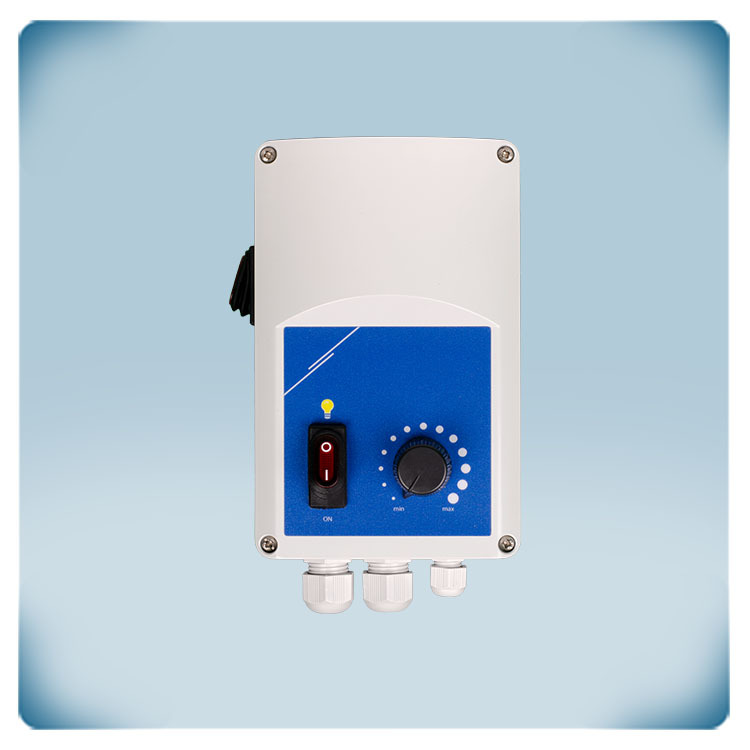

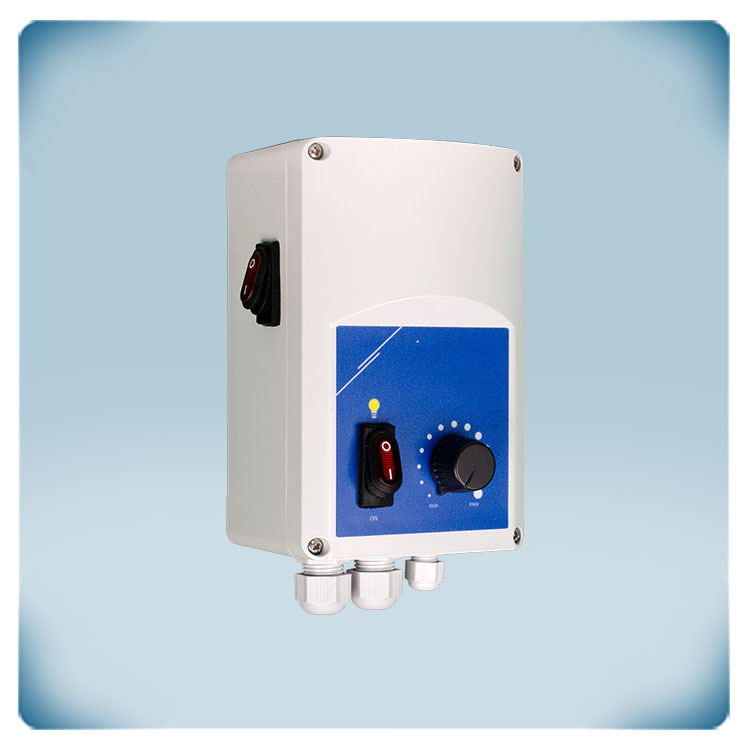

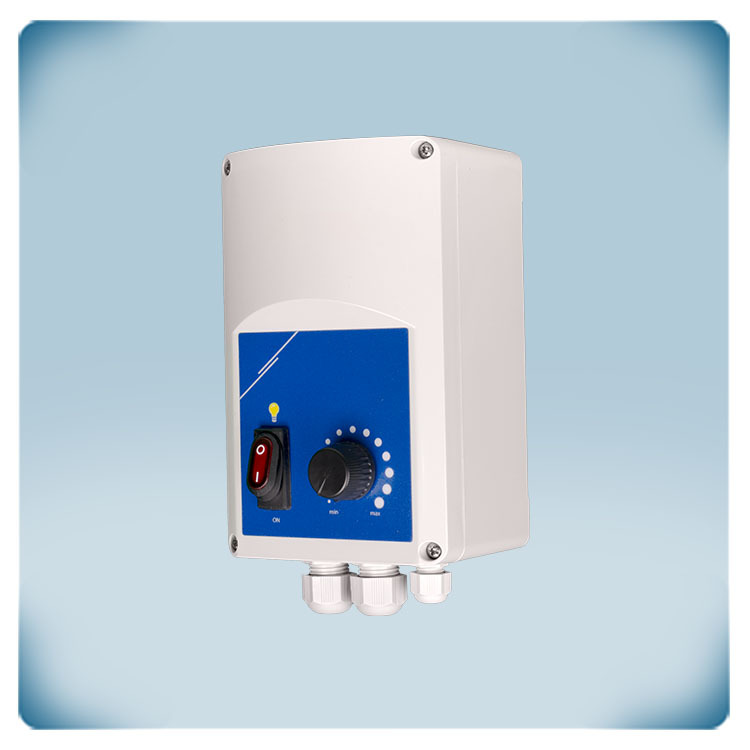

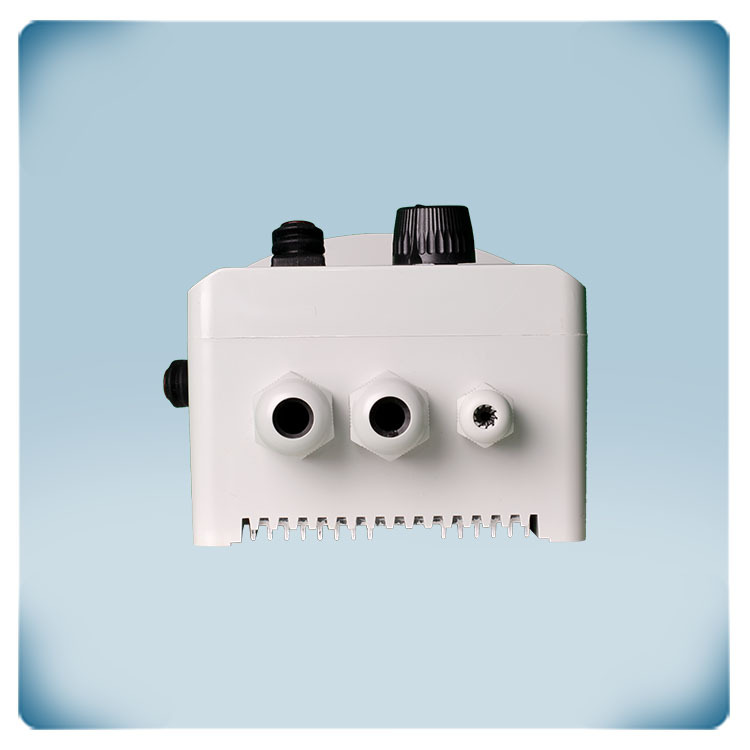

Variable fan speed controller | light switch | 6 A
Product description
Motor Compatibility: Controls single-phase, voltage-controllable 230 VAC motors up to a combined maximum current of 6 A.
Speed Control: Offers infinitely variable speed control using a potentiometer, with adjustable minimum and maximum speeds via internal trimmers.
Start Modes: Provides Kick start (max speed for 8-10 seconds, then to set speed) and Soft start (gradual acceleration) options, selectable via a jumper.
Outputs: Includes an unregulated 230 VAC output for three-wire motor connection and another for an electric valve (230 VAC).
User Interface: Features an illuminated ON/OFF switch and a built-in light switch for external light control.
Key Features Overview: Infinitely variable control, adjustable min/max speed, Kick/Soft start, external light switch, illuminated ON/OFF switch.
Additional specifications and description
How Does This Controller Regulate AC Motor Speed and Control Lighting?
This fan speed controller has a built-in light switch on the front panel. It allows you to switch lights or other external devices with a maximum current of 3 A. The fan speed controller regulates AC fan speed continuously variable. Phase angle control (TRIAC technology) is used to reduce the motor voltage and regulate fan speed. This means that this speed controller is only suitable for voltage controllable motors. If you are not sure whether your motor is voltage controllable, it is best to contact the motor manufacturer. This speed controller works completely silently. The fan speed can be set via the knob on the front panel. Depending on the motor type, a humming motor noise may occur at low speed. How Are Minimum and Maximum Fan Speeds Optimized?

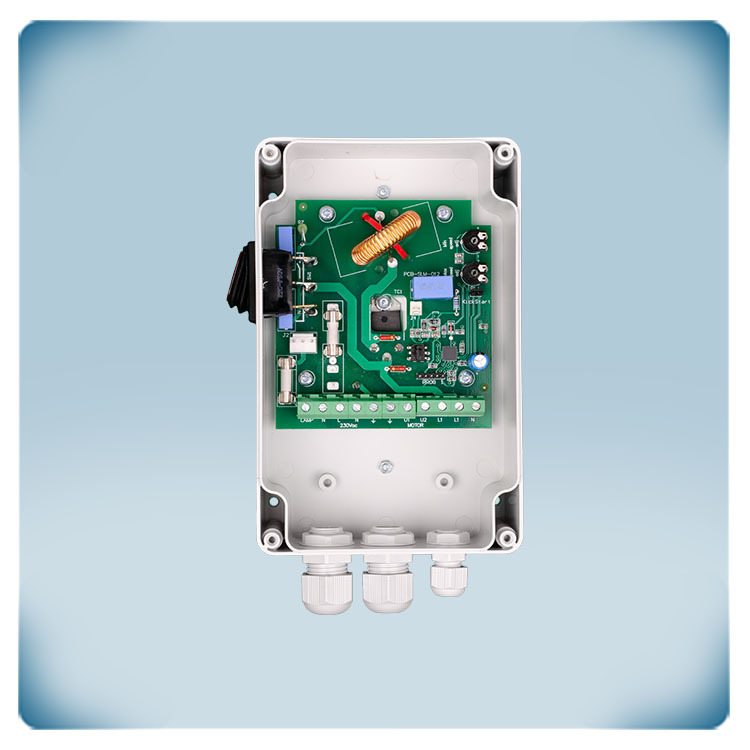

The minimum and maximum selectable motor speed can be adjusted via two internal trimmers. This makes it possible to optimize the speed range that can be selected via the knob on the front panel. By optimizing the speed range, any overcapacity of the fan can be compensated. By setting the minimum speed sufficiently high, motor overheating at prolonged low speed can be prevented. Consult the motor manufacturer to find out what speed range is allowed for your motor.
How Does the ON/OFF Switch Function and Can It Be Disabled?
With the illuminated ON/OFF switch on the side, the AC fan can be activated or deactivated. In ON position, the switch is illuminated. To disable the ON/OFF switch, connect the power supply via terminals L1 and N (not via L and N). Please refer to the manual for more details.
What Is the Purpose and Application of the Unregulated Output?
When the motor is enabled, the unregulated output is active. Because this output is either ON (230 Volt) or OFF (0 Volt), it is called ‘unregulated output'. The maximum current of this output is 2 A. It is typically used to control an external run-indicator, to open or close a damper, to switch an external relay, etc. E.g. when the fan stops, the damper is closed. When the fan is active, the damper is open.
What Are the Different Motor Start Modes Available?
Kickstart and softstart are two different ways to start the motor. The difference is in the way the AC fan will accelerate from a standstill. Kickstart or softstart acceleration can be selected via an internal jumper. Kick start will start the motor immediately at maximum speed. After 8 – 10 seconds, the motor will decelerate towards the requested fan speed. Soft start will smoothly accelerate the motor from standstill towards the requested fan speed. This acceleration time will be approximately 8 – 10 seconds.
What Are the Installation Guidelines and Enclosure Features?
This fan speed controller can be installed on a wall or panel indoors. Make sure that the fan speed controller can cool sufficiently. Preferably install it in a cool place, best not in direct sunlight. The enclosure is made of high-quality r-ABS VO (UL94) plastic. This material is flame extinguishing, very tough and offers good protection against impacts. It offers an IP54 protection against ingress dust and water.
