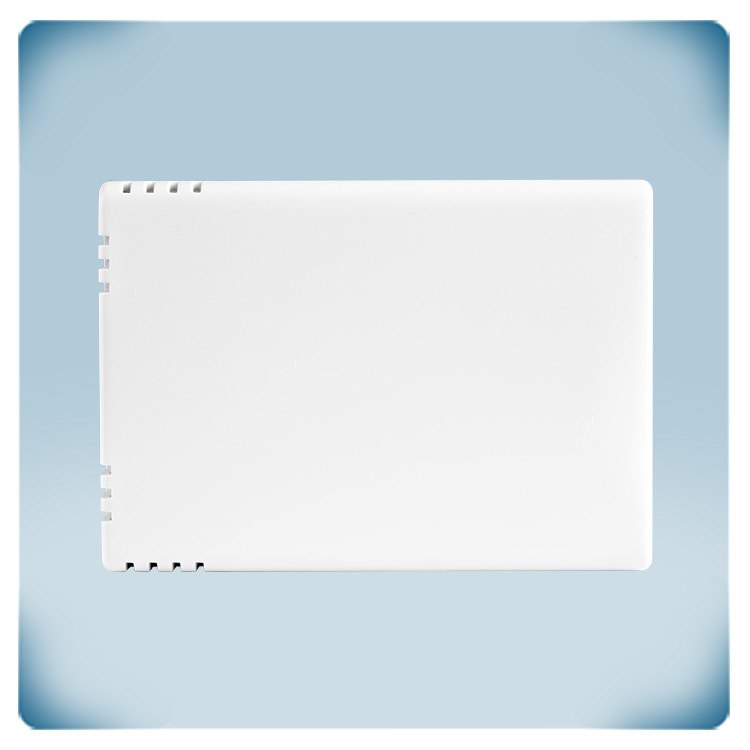

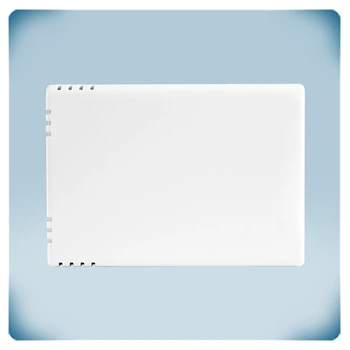

Passive room temperature sensor | PT500
Product description
ROTSN passive temperature sensors are designed to accurately and stably measure ambient temperature.
It measures temperature with a PT500 platinum sensor element.
It features a positive temperature coefficient of resistance
Its resistance at 0 °C is 500 Ω.
Structure and Connection:
The sensor element is soldered to a printed circuit board and housed within a plastic enclosure with an IP30 protection rating. It's designed for connection with a grounded shielded cable. Connection is made via a screw clamp terminal block connector suitable for cables with a maximum cross-section of 1.5 mm².
Key Features:
It has a low-profile housing with concealed screws. It offers long-term stability (< ± 0.04%) and an insulation resistance of > 10 MΩ.
Environmental Conditions;
The operating temperature range is -20 to 60 °C, with a relative humidity of <95% rH (non-condensing).
These sensors are ideal for reliable and stable temperature measurements
Additional specifications and description
Why Are Temperature Sensors Essential in HVAC Systems?
Temperature sensors are vital components in HVAC systems, ensuring that environments are kept comfortable, efficient and safe. Thermal comfort affects our health, well-being, and productivity. Indoor temperature is amongst the major factors thermal comfort and, consequently, the productivity of occupants. Meanwhile, behavioural adaptation is known to be the most critical contributor to the adaptive thermal comfort model.
Most of the HVAC systems are temperature-based. These sensors continuously monitor the room temperature and automatically adjust the heating, cooling, or ventilation to maintain the desired conditions without the need for manual intervention. Just as you might manually adjust a thermostat to reach a comfortable room temperature, HVAC controllers use the temperature sensor readings to make precise adjustments automatically. This ensures consistent comfort throughout the space while optimising energy use.
Temperature sensors are vital components in HVAC systems, ensuring that environments are kept comfortable, efficient and safe. Thermal comfort affects our health, well-being, and productivity. Indoor temperature is amongst the major factors thermal comfort and, consequently, the productivity of occupants. Meanwhile, behavioural adaptation is known to be the most critical contributor to the adaptive thermal comfort model.
Most of the HVAC systems are temperature-based. These sensors continuously monitor the room temperature and automatically adjust the heating, cooling, or ventilation to maintain the desired conditions without the need for manual intervention. Just as you might manually adjust a thermostat to reach a comfortable room temperature, HVAC controllers use the temperature sensor readings to make precise adjustments automatically. This ensures consistent comfort throughout the space while optimising energy use.
How Does This Specific Temperature Sensor Work?
This temperature sensor measures ambient temperature via a platinum element (PT500). This sensor element has an electrical resistance of 500 ohms at 0 °C. It has a positive temperature coefficient. This means that the resistance increases when the ambient temperature increases. Any device with an input for 'passive temperature sensors' can read out the measured temperature.
What Are the Wiring Requirements and Recommendations for This Sensor?
The platinum temperature sensor element can be connected via a shielded 2-wire cable. The cable can be connected via the terminal block with screws. This terminal block is suited for cables with a maximum cross section of 1,5 mm². We recommend to keep the cable length limited. The longer the cable length, the higher the influence of the resistance of the cable on the measurement readout. This sensor doesn't require a separate power supply.
What Are the Design and Mounting Considerations for the Sensor's Enclosure?

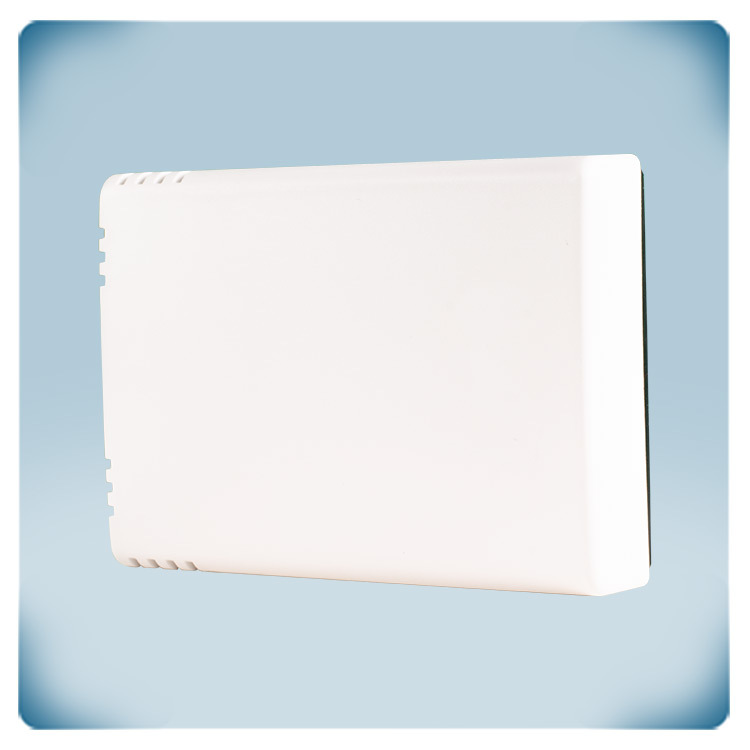

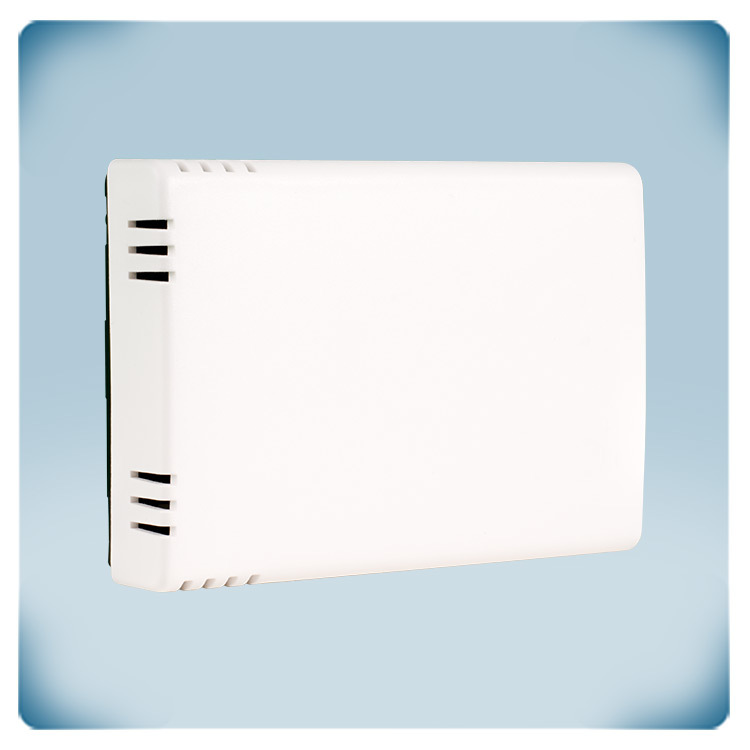

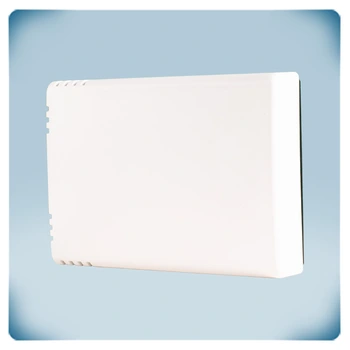

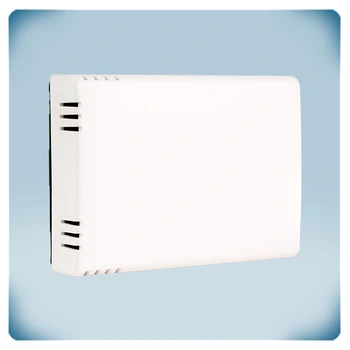

The enclosure offers a sleek, contemporary design. It has an IP30 protection degree against ingress of dust and moisture. It can be mounted on a wall indoors. To ensure optimal performance, it should be protected from direct sunlight.
