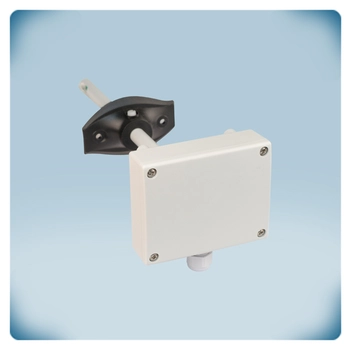

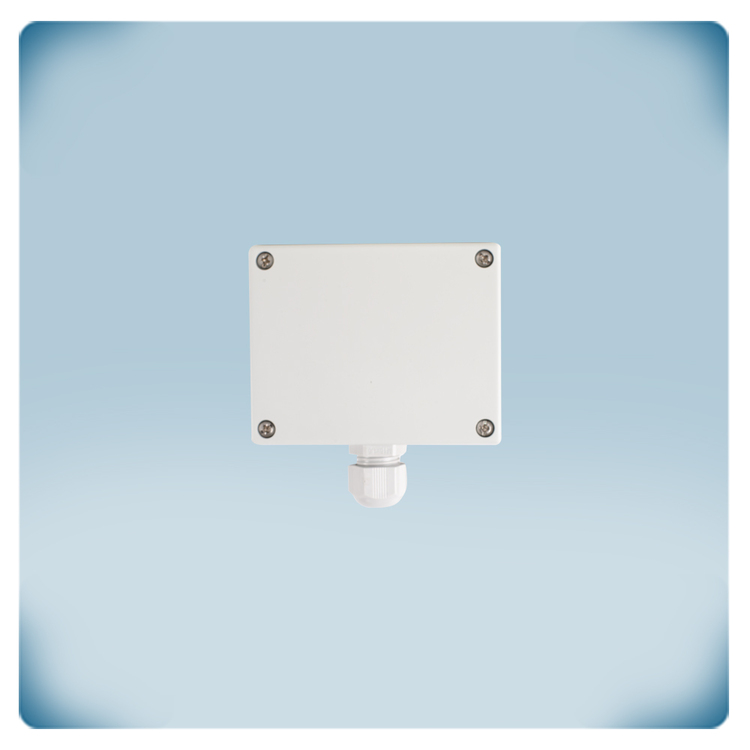

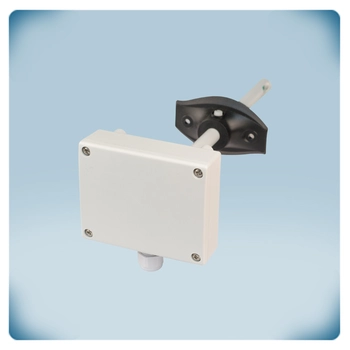

Grey water proof enclosure with duct probe
right
Grey water proof enclosure with duct probe
Grey water proof enclosure with duct probe
Grey water proof enclosure with duct probe
Grey water proof enclosure with duct probe
Grey water proof enclosure with duct probe

Passive duct temperature sensor PT500

No one has commented on this product yet, please be the first (look below), we appreciate your opinion!

Product description

The DUTSN series are passive PT500 duct temperature sensors which are based on the advanced thin film technology of the platinum sensitive element. These temperature sensors are optimised for temperatures measurement in air duct systems and they provide temperature measurements with high stability and accuracy. An integrated shield connection makes these sensors suitable for applications where grounded shielded cables are required. They can be connected via a terminal block (1,5 mm²). At 0 °C the resistance is 500 Ω.

Article code
DUTSN-P500
GTIN
0.540.100.300.214.8
Category
End of life approaching
Available
Current stock
9 U.
Factory lead time
4 Week(s)
Documents
EU declaration conformity
EU declaration conformity

EU declaration conformity

Datasheet
Datasheet

Datasheet

Additional specifications and description


How does it work?
This temperature probe measures ambient temperature via a platinum element (PT500). This sensor element has an electrical resistance of 500 ohms at 0 °C. It has a positive temperature coefficient. This means that the resistance increases when the ambient temperature increases. Any device with an input for 'PT500 passive temperature sensors' can read out the measured temperature.

How to connect?
The sensor element is built-in in a plastic tube housing. The sensor element can be connected via a terminal block in the plastic enclosure. The longer the cable length, the higher the influence of the resistance of the cable on the measurement readout. This sensor doesn't require a separate power supply.

Temperature probe for air ducts
The platinum sensor element is built-in in a plastic tube housing. The tube has a length of 250 mm. It can be installed in air ducts with a maximum diameter of 500 mm. It offers an IP30 protection degree against ingress of dust and moisture.
