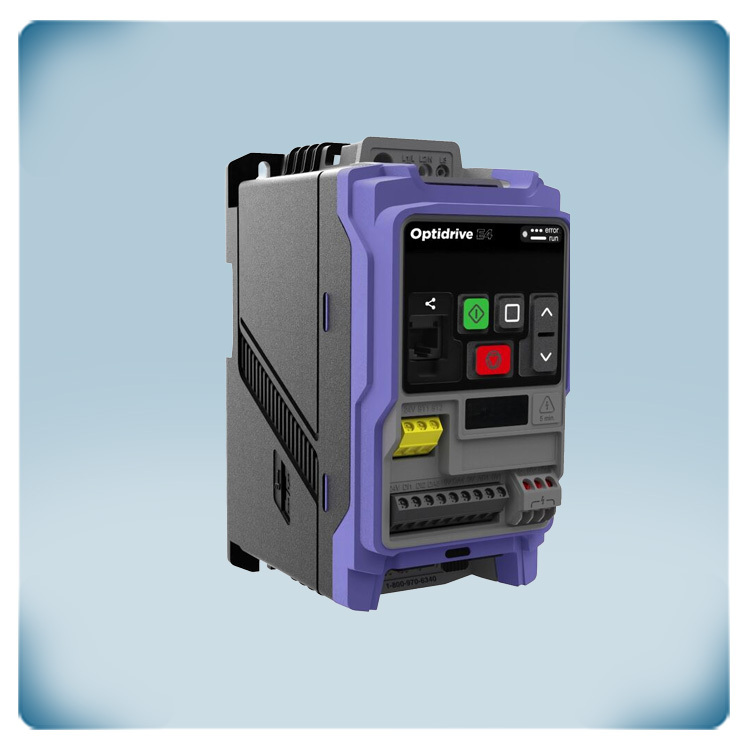

Frequency inverter 400 V | 2.2 A | 0.75 kW | IP20

Product description

Variable frequency drive for HVAC fan and pump applications with three-phase 400 V motors. It enables easy commissioning and dependable operation through dedicated application modes.

Advanced sensorless vector control optimises motor performance without requiring encoder feedback. The drive is compatible with a wide range of motor technologies, including induction, BLDC, permanent magnet, synchronous reluctance and PMAREL motors.

Built-in motor protection functions include flow detection, low load detection and motor connection monitoring. The drive also provides advanced braking capabilities, including DC injection, dynamic braking and AC flux braking. An integrated STO safety function (SIL3) is included.

The drive supports communication via Modbus RTU, CANopen and BACnet MS/TP. Its enclosure is suitable for DIN-rail mounting in an electrical cabinet and provides IP20 protection against dust ingress.

Manufacturer code: ODE-4-140022-3F12
