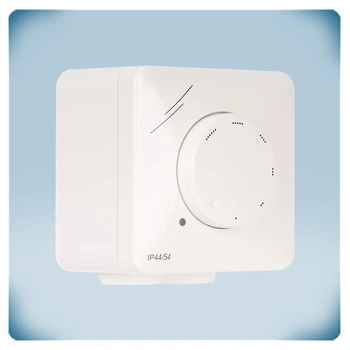

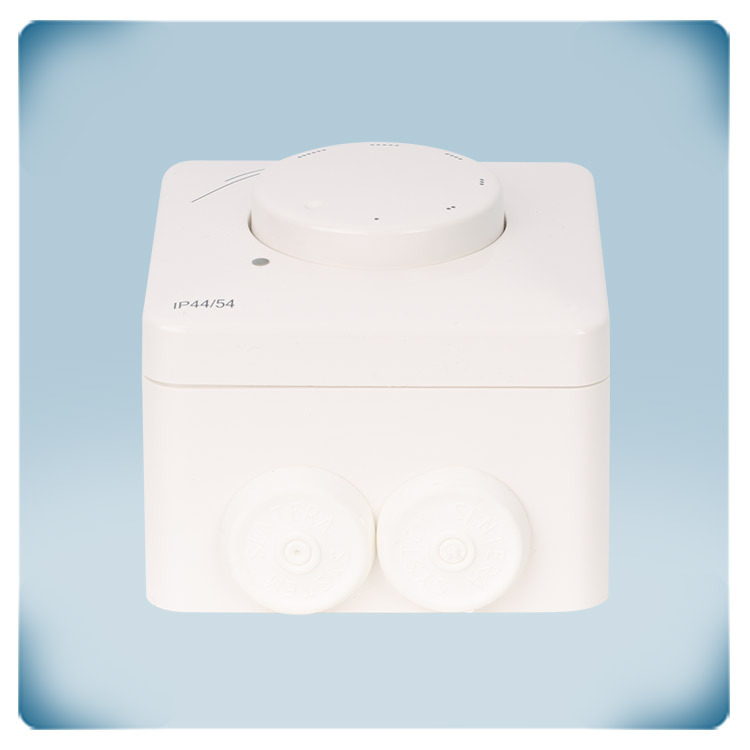

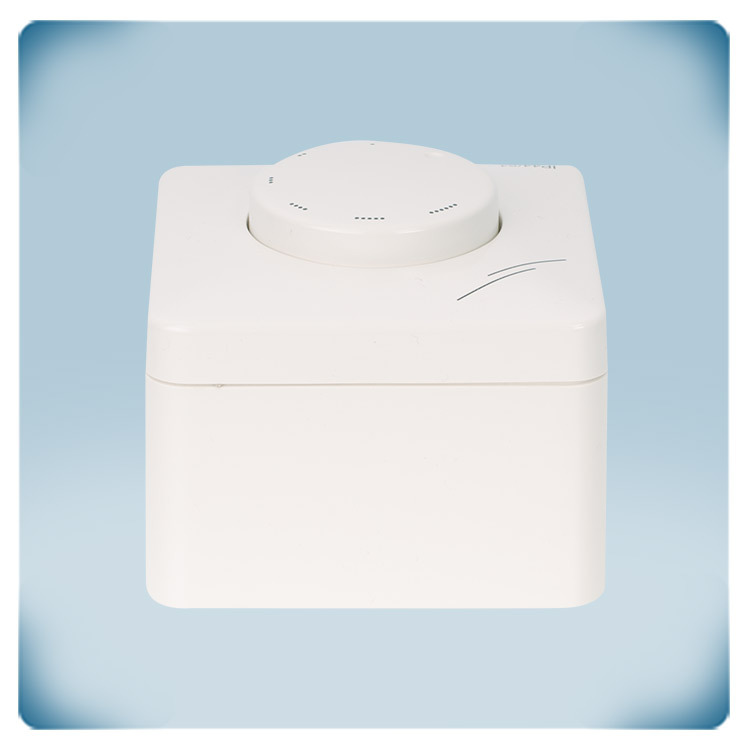

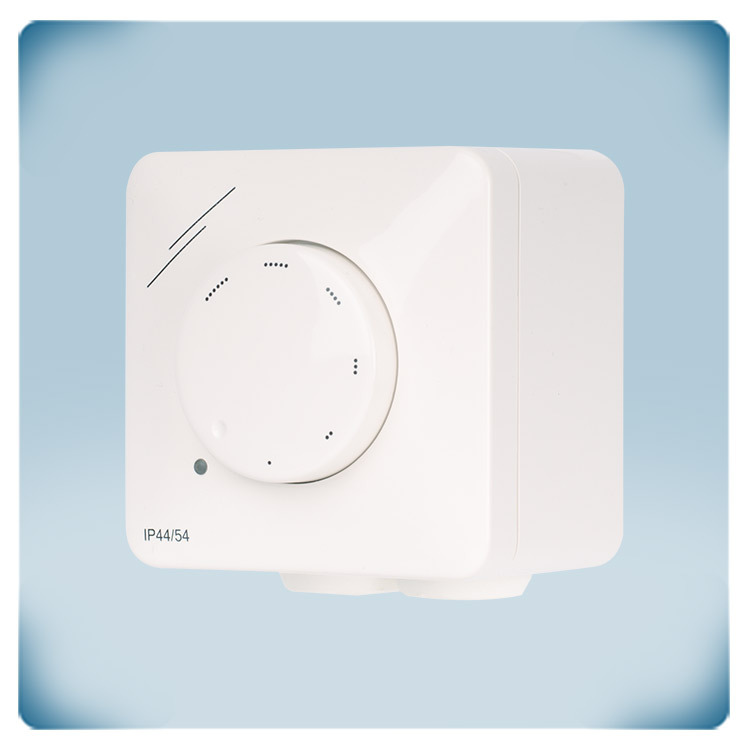

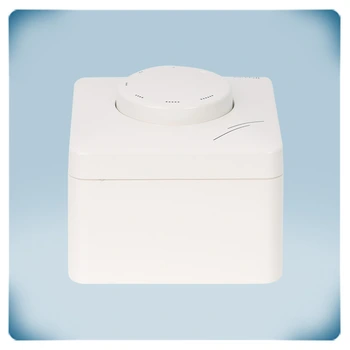

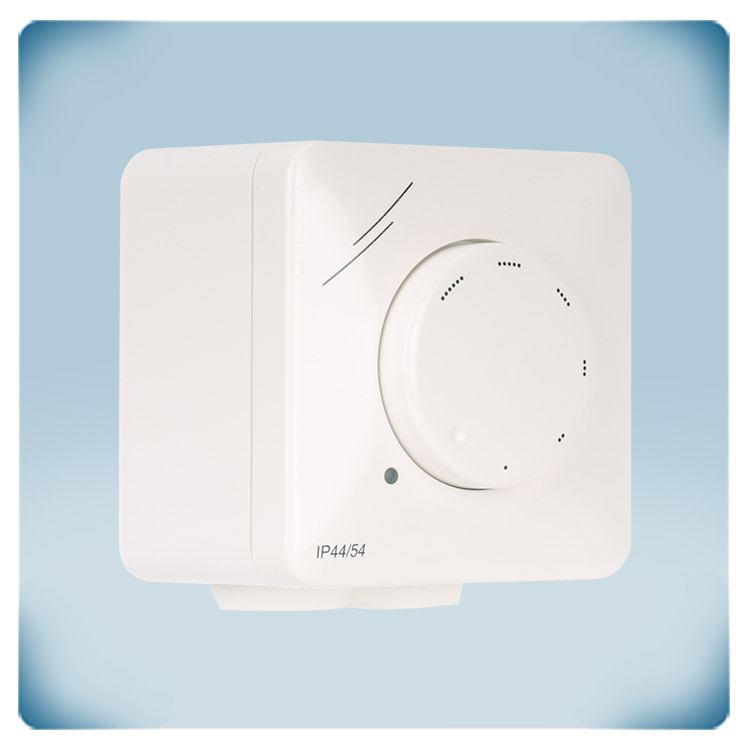

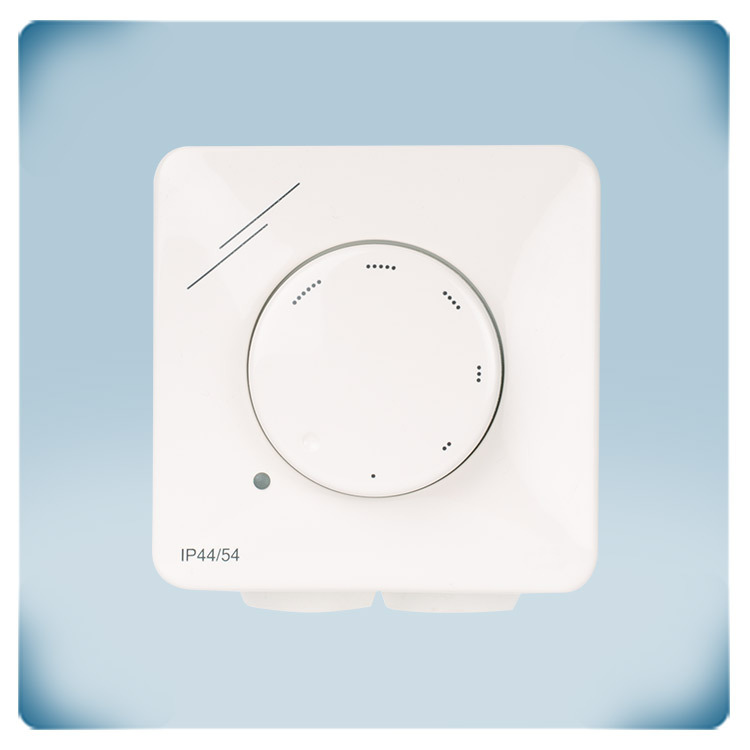

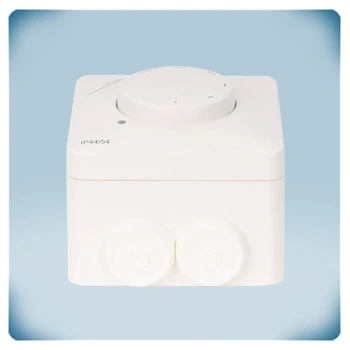

Fan speed controller | run indicator | 4.0 A |From High to Low
Product description
Motor Compatibility: Designed for single-phase motors with a maximum current of 4 A.
Speed Control: Manual adjustment of AC fan speed from high to low via a potentiometer, which includes an OFF position.
Minimum Speed Adjustment: The minimum speed can be fine-tuned using an internal trimmer.
Mounting & IP Rating: Intended for surface mounting only with an IP54 protection rating.
Integrated Indicator: Features an an integrated orange operating LED indicator.
Power Supply: Operates on 230 VAC.
Technology: Regulates speed by reducing motor voltage using TRIAC technology (phase angle control).
Additional specifications and description
How Does the LTX Series Offer User-Friendly and Efficient Fan Control for Homes?
In residential environments a simple control solution that is also cost effective is always preferable. What is more, at home the looks always matter! The design of the LTX series is plain and fits any interior style.
Controlling the fan speed using the LTX is as easy as turning on and off the lighting in your home. Via its rotary knob the fan speed can be set from high to low by simply turning it clockwise.
The LTX is a solid and reliable control solution which reduces the noise levels emitted by the fan and increases the service life of the motor connected to it. What you get is simplified manual control, reliability, efficiency and unrivalled simplicity of installation.
How Can the "OFF" Position Be Managed for Continuous Operation?
In spite of being a simplified fan speed control solution, the LTX features an OFF position - turning the knob counterclockwise stops the motor. If necessary, the OFF position can be deactivated. In this case, the motor can run when the power supply is available, i.e. when the device is connected to the mains. As standard, the supply voltage to the LTX is connected via terminals ↑ and N. To disable the OFF position, you need to connect the supply voltage via the terminals intended for the unregulated output, namely ↓ and N.
What Is the Purpose and Function of the Unregulated Output?
The LTX features an unregulated output which is active when the motor is enabled. If the supply voltage is connected to ↑ and N, the unregulated output is active while the motor is in operation. The unregulated output is used to control external devices such as valves, dampers, relays, extra run indicators, etc. that can work without the need to regulate the incoming voltage. In other words, the LTX controls the fan via the regulated output via controlling the voltage with the option to regulate one more device. But this time the voltage is unregulated, i.e. either 0 V or 230 V.
If you connect the supply voltage to the LTX as standard and as advised by the relevant documentation, the unregulated output of your controller will be active when the motor is enabled. This means that when the fan stops, the connected external device will be disabled – the valve or damper will be closed or the run indicator will switch off. While the fan is working, the valve or damper will remain open and the indication light will be switched on. The maximum current is 2 A.
How Is Minimum Fan Speed Optimized for Performance and Noise Reduction?
The LTX features an internal trimmer for adjusting the minimum fan speed. the motor might produce a little more noise at lower speeds (due to the imperfect sinusoidal shape of the motor voltage). The minimum motor voltage can be adjusted in order to avoid motor stalling at low speed and optimize fan speed for your ventilation system. That is why this controller features the internal minimum speed trimmer. It can be set within the range 20 - 70% of the supply voltage which is equal to about 80 - 180 VAC.
What Motor Types Are Compatible and Can Multiple Motors Be Connected?
The series is intended for AC fans and control is realised via reducing the motor voltage. AC fans run on an alternating current and convert alternating current into mechanical power. This means that the series is suitable only for voltage controllable motors. You can connect several motors to the controller as long as the current limit is not exceeded. If you are not sure about your motor type, we strongly advise you to read carefully its accompanying documentation or contact the motor manufacturer.
Can Multiple Motors Be Connected to This Controller?
You can connect several motors to the controller as long as the current limit is not exceeded. In this case all of them will run at the same speed.
What Are the Design, Durability, and Mounting Features of the Enclosure?
The enclosure of the LTX is made of durable ASA plastic in a nice cream colour (RAL9010). The material is UV resistant and provides protection against dust, water splashes and impacts. What is more, you can install the LTX on any kind of wall or panel. You can clean it using only a damp cloth.
