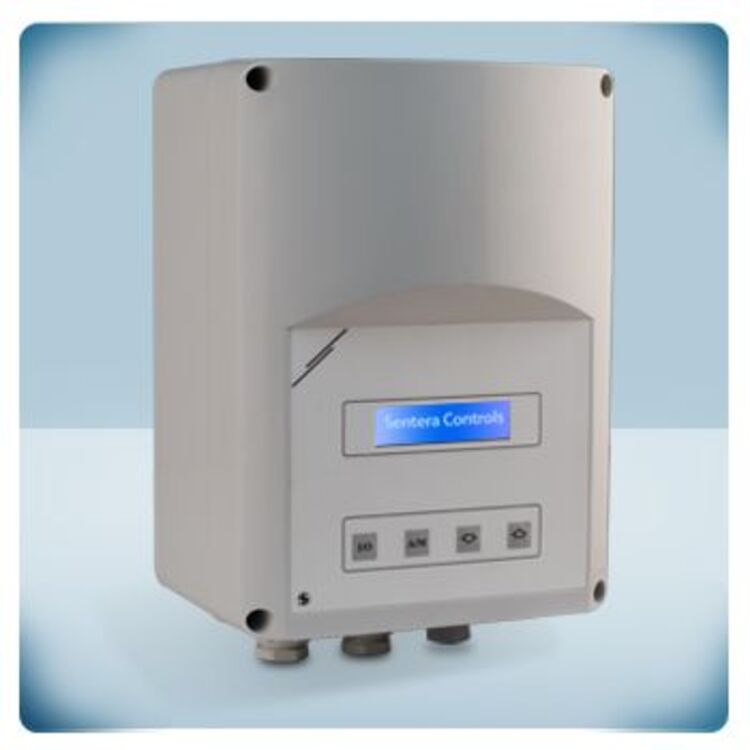

Digital fan speed controller 10 A
Product description
Digital fan speed controller (electronic, triac), 230 VAC, 50 Hz, 10 A. With real time clock, Manual/Auto Speed in function of temperature (1 setpoint), (temperature sensor not included), Min/Max speed, adjustable OFF temperature, proportional range.
Additional specifications and description
- Compatible temperature sensor: FLTSN-P500-010
- 1 temperature setpoint in the range: -25—65 °C
- Analog output: selectable between proportional and digital (for alarm function on TK input)
- Input for remote control: remote heat / cool switching, remote on / off switching, max. ventilation
- 1 unregulated output 230 VAC for a valve connection
- Auto mode - COOL: speed increases when temperature rises
- Auto mode - HEAT: speed decreases when temperature rises
- Manual mode: speed increases / decreases on user demand until the next switching point set by a real-time clock
- Min. and max. speed settings
- Min. safety speed setting
- Time to max. speed
- Off level and kick start with adjustable duration
- Adjustable hysteresis
- Motor overheating protection with an option for delayed detection
- User-friendly and intuitive multilingual menu
- User and installer priorities set by passwords
- Calibration and reset to factory settings
