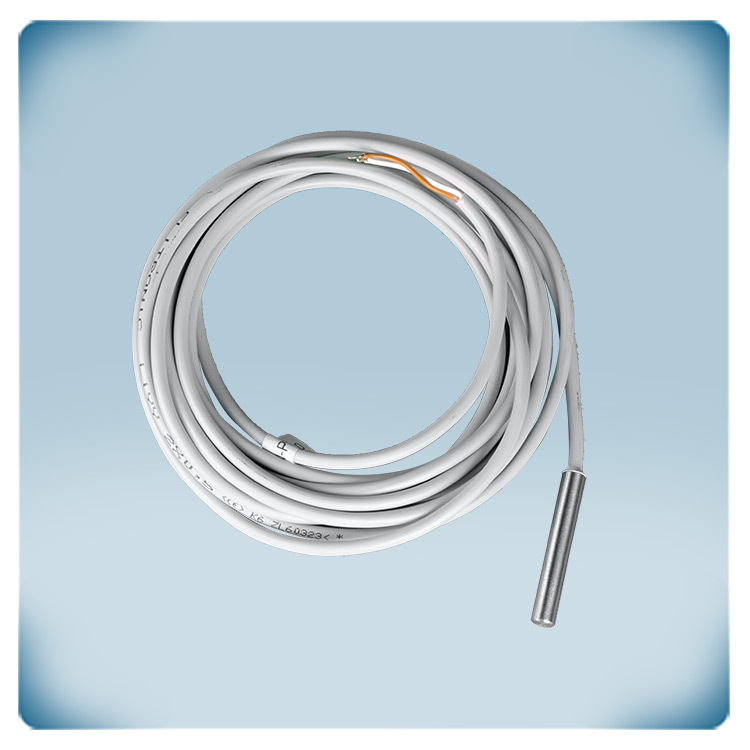

Passive temperature sensor | PT500 | metal probe | 1 m shielded cable
Product description
FSTSN-P500-100 is a passive sensor for measuring ambient temperature.
The sensor uses a PT500 platinum element with a positive temperature coefficient of resistance and does not require a separate power supply. The cable length is 1 m.
The sensor element is resin encapsulated in a metal probe which provides an IP65 protection. The sensor is suitable for both indoor and outdoor HVAC applications.
Additional specifications and description
Which parameters are measured and why is it important?
This sensor probe measures ambient temperature. It is a passive sensor, providing accurate measurements for monitoring and control applications.
Temperature plays a crucial role in human comfort and overall well-being. Temperature not only affects how hot or cold a space feels, but also impacts health and productivity. It is important to create an indoor environment that ensures a general sense of comfort for everyone.
What are the configuration and customisation options?
The sensor measures temperature via a PT500 platinum element with an electrical resistance of 500 Ω at 0 °C. It has a positive temperature coefficient of resistance (PTC), which means that the resistance increases when the temperature increases.
Any device with an input for passive temperature sensors can read out the measured temperature.
How is the sensor installed, and what are the power and connectivity requirements?
The metal sensor probe has a length of 53 mm.
This temperature sensor has an integrated, shielded 2-wire cable with a length of 1 m. The cable can be extended if required; however, we recommend keeping the cable length limited. Increasing the cable length also increases the cable resistance, which may affect the measurement accuracy. The wires have a cross section of 0.5 mm². The cable shielding consists of tinned copper braids, acting as a Faraday cage and providing effective protection against electrical noise and electromagnetic interference.
The sensor is passive and does not require a separate power supply.
What are the manufacturing quality and protection ratings?
All sensors are designed and manufactured in Europe. Each device is calibrated and tested in our factory. Only high-quality components are used, ensuring long-term stability and accuracy.
The platinum sensing element is resin encapsulated in a metal probe made of stainless steel, which provides an IP65 protection against ingress of dust and moisture. The simple and practical design makes these probes suitable for a wide range of indoor and outdoor HVAC applications.
