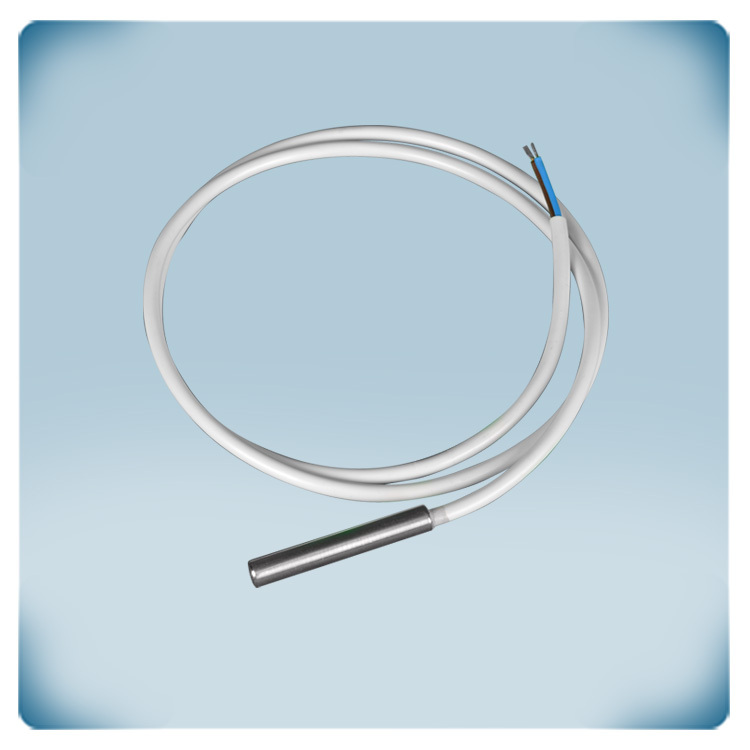

Passive temperature sensor | PT100 | metal probe | 1 m cable
Product description
FLTSN-P passive temperature probes are designed to measure temperature with exceptionally high stability.
They measure temperature via a PT100 platinum sensor element. They have a positive temperature coefficient of resistance, meaning their resistance increases as the temperature rises.
At 0 °C, their resistance is 100 Ω.
The sensor element is encased in a 53 mm × 8 mm stainless steel tube, encapsulated with resin. This encapsulation ensures long-term stability and durability.
The integrated cable length is 1 meter. It is unshielded and features two twisted wires (2 × 0.5 mm²).
These sensors are an ideal solution for reliable temperature measurement.
Additional specifications and description
How Does This Temperature Probe Measure Ambient Temperature?
This temperature probe measures ambient temperature via a platinum element (PT100). This sensor element has an electrical resistance of 100 ohms at 0 °C. It has a positive temperature coefficient. This means that the resistance increases when the ambient temperature increases. Any device with an input for 'PT100 passive temperature sensors' can read out the measured temperature.
What Are the Sensor Cable Specifications, and How Does Length Affect Measurement?
This temperature sensor has an integrated cable. This unshielded 2-wire cable has a length of 1 m. The wires have a cross section of 0,5 mm². If necessary, this cable can be extended. The longer the cable length, the higher the influence of the resistance of the cable on the measurement readout. This sensor doesn't require a separate power supply.
What Are the Design and Protection Rating Features of the Sensor Probe?
The platinum sensor element is resin encapsulated in a stainless steel tube (53 x 8 mm). It offers an IP65 protection degree against ingress of dirt and water.
